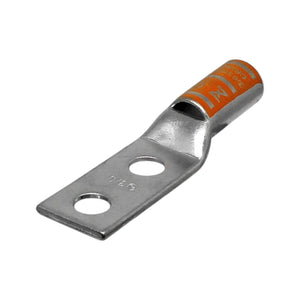

Copper Long Barrel Two Hole Compression Lugs 3/0 AWG 1/4-inch Bolt Size

The Conversions Technology sturdy copper compression lug is meticulously engineered for secure, efficient, and long-lasting electrical connections, specifically designed for 3/0 AWG conductors. Featuring a robust long barrel design and dual holes for added versatility, this high-quality lug accommodates a 1/4-inch bolt size, ensuring a firm and reliable connection. The lug is tin-plated, offering excellent corrosion resistance and optimal conductivity. Its vibrant orange color code not only enhances visual identification but also supports easy installation, making it the perfect choice for a wide range of high-performance electrical applications, where reliability and durability are paramount.

Key Features

• Seamless Electro Tin Plated Copper Material: Ensures durability and efficient conductivity for electrical connections.

• Orange Color: Facilitates easy identification in electrical installations.

• 3.376 Inch Overall Length: Provides a compact yet versatile size for various applications.

• 1.5 Inch Barrel Length: Ensures secure and reliable connections for 3/0 AWG conductors.

• 35 kV Voltage Rating: Suitable for applications requiring higher voltage capabilities.

• 3/0 AWG Conductor Size: Accommodates larger conductors for diverse electrical setups.

• 1/4 Inch Stud Size: Provides flexibility in installation options, accommodating different stud sizes.

• I-50 Die Index: Indicates compatibility with specific crimping tools for proper installation.

• 1.437 Inch L X 0.885 Inch W X 0.125 Inch Thk Pad Size: Offers a suitable surface for conductor attachment.

• 2 Pad Hole(S) with 5/8 Inch Pad Hole Spacing: Allows for versatile and secure conductor connections.

• Long Barrel Type: Enhances suitability for different applications with a long barrel design.

• Inner Diameter 0.484 Inch; Outer Diameter 0.609 Inch: Specifies dimensions for compatibility with various cable sizes.

• With Chamfered Type Cable Entry: Facilitates easy and secure cable installation for efficient connections.

Technical Specifications
