Copper Long Barrel Two Hole Compression Lugs 4/0 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98101C
200 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

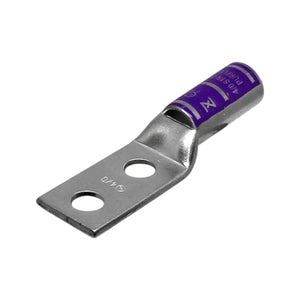

Conversions Tech 4/0 AWG Dual-Hole Copper Compression Lug — 3⁄8″ Stud, Purple Color Code | UL / CE / RoHS / BABA Compliant
The Conversions Tech 4/0 AWG Copper Compression Lug delivers exceptional conductivity and strength for large-gauge power terminations. Featuring a 3⁄8-inch stud, dual holes with 1¾-inch spacing, and a long, chamfered-entry barrel, it ensures stable, low-resistance connections in high-load environments. Tin-plated for corrosion protection and finished with a purple color code for quick identification, it’s ideal for professional-grade electrical systems demanding reliability and performance.
Constructed from seamless electro-tin-plated copper and tested to UL / CE / RoHS standards, this lug is built under BABA (Build America, Buy America) compliance, meeting both U.S. manufacturing and international safety requirements. Designed for efficiency, longevity, and precision installation, it’s the trusted solution for industrial, commercial, and renewable-energy applications.
Key Features
- Seamless Tin-Plated Copper: High-conductivity copper body provides superior electrical performance and corrosion resistance.
- Purple Color Code: Identifies 4/0 AWG conductor size instantly for faster, error-free installation.
- Dual Holes (1¾″ Spacing): Ensures vibration-resistant mounting and secure, high-current connections.
- Long, Chamfered Barrel: Allows easy wire insertion and improved crimp consistency.
- 3⁄8″ Stud Size: Fits standard busbars and panels for versatile mounting options.
- 35 kV Voltage Rating: Handles medium- to high-voltage applications safely and efficiently.
- I-54 Die Index: Guarantees correct compression fit with standard crimp tools.
- High Temperature Tolerance: Rated to 90 °C (194 °F) for continuous operation under load.
- UL / CE / RoHS / BABA Certified: Meets international safety and U.S. procurement standards.
Technical Specifications
| Wire Size | 4/0 AWG |
| Stud Size | 3⁄8″ (9.5 mm) |
| Color Code | Purple |
| Overall Length (L) | 86.2 mm (3.40″) |
| Neck Length (L₁) | 40.1 mm (1.58″) |
| Hole Length (L₂) | 18.9 mm (0.744″) |
| Outer Diameter (D) | 25.4 mm (1.00″) |
| Inner Diameter (D₁) | 17.4 mm (0.69″) |
| Hole Diameter (D₂) | 14.2 mm (0.56″) |
| Width (B) | 37.2 mm (1.47″) |
| Hole Spacing (E) | 44.5 mm (1.75″) |
| Thickness (F) | 3.1 mm (0.12″) |
| Material | Tin-Plated Copper |
| Temperature Rating | 90 °C (194 °F) |
| Voltage Rating | 35 kV |
| Maximum Amp Rating | 230 A |
| Certifications | UL Recognized • CE Certified • RoHS Compliant • BABA Certified |
| Origin | USA *Stock product may be sourced elsewhere. |
Applications
- Utility, industrial, and renewable power distribution
- Heavy-current equipment and switchgear assemblies
- Grounding and bonding systems for high-capacity circuits
- Marine and transportation electrical applications
- Large transformer and battery connections
The Conversions Tech 4/0 AWG Dual-Hole Copper Compression Lug combines precision engineering with proven reliability. With UL, CE, RoHS, and BABA certifications, it delivers consistent performance, corrosion protection, and strength for today’s most demanding electrical installations.
