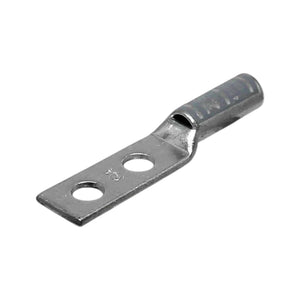

Copper Long Barrel Two Hole Compression Lugs 4 AWG 3/8-inch Bolt Size

The Conversions Technology Copper Long Barrel Two Hole Compression Lug is expertly engineered for durability and reliable electrical connections with conductor size 4. This high-quality, tin-plated lug features a 3/8-inch bolt size, two holes, and 1-inch hole spacing, ensuring secure and efficient performance. Its long barrel design enhances stability, providing a solid and dependable connection. Whether used in industrial, commercial, or other high-performance applications, this compression lug guarantees consistent, reliable performance, making it the ideal choice for a wide range of electrical installations.

Key Features

• Material: Seamless Electro-Tin Plated Copper for optimal conductivity and corrosion resistance.

• Color: Gray for easy identification in electrical installations.

• Overall Length: 2.796 inches providing ample space for secure connections.

• Barrel Length: 1.125 inches accommodating various conductor sizes for flexibility.

• Conductor Material: Copper ensuring reliable electrical conductivity.

• Voltage Rating: 35 kV suitable for high-voltage applications.

• Conductor Size: 4 AWG specifically designed for conductor size 4.

• Stud Size: 3/8 inch compatible with standard stud sizes for ease of installation.

• Die Index: I-29 indicating compatibility with specific crimping tools.

• Pad Size: 1.437 inch L x 0.486 inch W x 0.093 inch Thk providing a stable base for connections.

• Pad Holes: 2 allowing for secure attachment to electrical components.

• Pad Hole Spacing: 1 inch offering flexibility in wiring configurations.

• Long Barrel Type: Enhances stability and conductivity in connections.

• Size: 0.25 inch ID x 0.343 inch OD accommodating specific wire dimensions.

• Barrel Type Chamfered Entry: Facilitates smooth wire insertion.

• Temperature Rating: 90°C suitable for applications with moderate temperature conditions.
