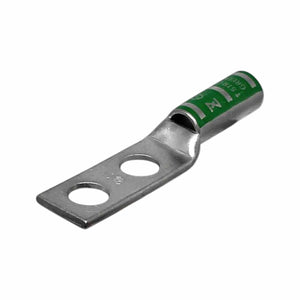

The is crafted for versatile use in diverse electrical applications. Accommodating 1 AWG conductors with a 3/8-inch bolt size and 7/8-inch hole spacing, it provides flexibility for various wiring needs. The long barrel design enhances ease of installation, while the tin-plated finish ensures corrosion resistance for extended durability. The green color code simplifies identification, and the absence of a sight window maintains a sleek design, ensuring reliable and secure electrical connections in a range of settings.
Key Features
- Designed for 1 AWG conductors - Specifically made to accommodate 1 AWG gauge cables for secure connections.
- 3/8-inch bolt size - Standard bolt size for stable and reliable attachment.
- 7/8-inch hole spacing - Offers flexibility for various wiring needs and ensures precise alignment.
- Long barrel construction - Enhances ease of installation and ensures a strong, secure connection.
- Tin-plated finish - Provides corrosion resistance and long-lasting durability, improving the lug's overall performance.
- Green color code - Easily identifiable for quick and accurate conductor size identification during installations.
-
Sleek design without a sight window - Maintains a clean and robust design while ensuring reliable connections.
Technical Specifications
Material | Seamless Electro-Tin Plated Copper |
---|---|
Color | Green |
Overall Length | 3.392 Inches |
Barrel Length | 1.375 Inches |
Conductor Material | Copper |
Voltage Rating | 35 kV |
Conductor Size | 1 AWG |
Stud Size | 3/8 Inch |
Die Index | I-37 |
Pad Size | 1.687 Inches (L) x 0.673 Inch (W) x 0.109 Inch (Thk) |
Pad Hole(s) | 2 |
Pad Hole Spacing | 7/8 Inch |
Barrel Type | Long |
ID X OD | 0.359 Inch x 0.468 Inch |
Cable Entry Type | Chamfered Entry |
Temperature Rating | 90°C |
