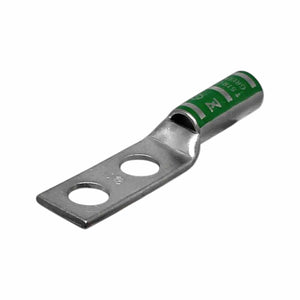

Copper Long Barrel Two Hole Compression Lugs 1 AWG 1/2-inch Bolt Size

Copper Long Barrel Two Hole Compression Lugs 1 AWG 1/2-inch Bolt Size

by Conversions Technology
Availability:
1000 in stock, ready to be shipped
$2.20 - $2.20
$2.20
$2.20 - $2.20
$2.20
Request Distributor or Volume Pricing
SKU 210-98093

The is a durable copper compression lug designed for efficient and secure electrical connections. With a conductor size of 1, 1/2-inch bolt size, and a long barrel, this tin-plated lug ensures reliable crimping and easy identification with its green color code.

Key Features

  • Designed for 1/0 conductors - Specifically made to fit 1/0 gauge cables, ensuring a secure and reliable connection.
  • 1/2-inch bolt size - Standard bolt size for a stable and secure attachment.
  • Long barrel construction - Provides a strong, durable connection with efficient crimping.
  • Tin-plated finish - Ensures corrosion resistance and enhances conductivity for long-lasting performance.
  • Green color code - Easily identifiable for quick and accurate conductor size identification during installation.
  • Durable and reliable - Designed for secure and efficient electrical connections in demanding environments.

Technical Specifications

Material Seamless Electro-Tin Plated Copper
Color Green
Overall Length 4.705 Inches
Barrel Length 1.375 Inches
Conductor Material Copper
Voltage Rating 35 kV
Conductor Size 1 AWG
Stud Size 1/2 Inch
Die Index I-37
Pad Size 3 Inches (L) x 0.75 Inch (W) x 0.109 Inch (Thk)
Pad Hole(s) 2
Pad Hole Spacing 1-3/4 Inches
Barrel Type Long
ID X OD 0.359 Inch x 0.468 Inch
Cable Entry Type Chamfered Entry
Temperature Rating 90°C
