Copper Long Barrel Two Hole Compression Lugs 1/0 AWG 1/4-inch Bolt Size

COPPER LONG BARREL TWO HOLE COMPRESSION LUGS

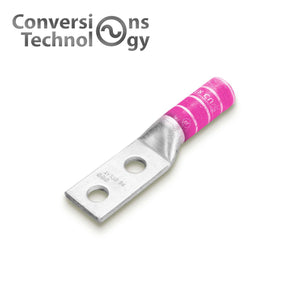

The 98094 is a robust copper compression lug designed for efficient and secure electrical connections. With a conductor size of 1/0, 1/4in bolt size, and a long barrel, this tin-plated lug ensures reliable crimping and easy identification with its distinctive pink color code.

Product Overview

Engineered for versatility, the 98094 accommodates 1/0 AWG conductors with a 1/4in bolt size and 7/8in hole spacing, providing flexibility for a range of wiring applications. The long barrel design enhances ease of installation, while the tin-plated finish ensures corrosion resistance for extended durability. The pink color code simplifies identification, and the absence of a sight window maintains a sleek design, ensuring reliable and secure electrical connections in various settings.

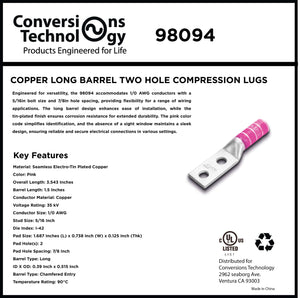

Specifications

• Material: Seamless Electro-Tin Plated Copper
• Color: Pink
• Overall Length: 3.543 Inches
• Barrel Length: 1.5 Inches
• Conductor Material: Copper
• Voltage Rating: 35 kV
• Conductor Size: 1/0 AWG
• Stud Size: 1/4 Inch
• Die Index: I-42
• Pad Size: 1.687 Inches (L) x 0.738 Inch (W) x 0.125 Inch (Thk)
• Pad Hole(s): 2
• Pad Hole Spacing: 7/8 Inch
• Barrel Type: Long
• ID X OD: 0.39 Inch x 0.515 Inch
• Barrel Type: Chamfered Entry
• Temperature Rating: 90°C

Uses and Cases

• Power Distribution Systems: Used in power distribution systems to connect 1/0 AWG conductors, ensuring reliable and efficient electrical distribution.
• Industrial Equipment: Applicable in industrial settings to connect 1/0 AWG conductors in machinery and equipment, ensuring dependable and efficient operation.
• Renewable Energy Systems: Suitable for use in renewable energy installations such as solar or wind power systems, connecting conductors for efficient energy production.
• Electrical Panels: Ideal for connecting 1/0 AWG conductors in electrical panels to ensure a secure and reliable electrical distribution.
• Transformer Installations: Essential for establishing secure connections in transformer applications, contributing to the overall reliability of electrical distribution systems.
• Switchgear and Circuit Breakers: Used in conjunction with switchgear and circuit breakers to ensure solid electrical connections, contributing to the safe and efficient operation of these critical components.
• Data Centers: Suitable for use in data centers to connect 1/0 AWG conductors, ensuring stability and reliability in the electrical infrastructure supporting critical data processing and storage equipment.
• Telecommunications Infrastructure: Applicable in telecommunications infrastructure for connecting grounding conductors, ensuring effective grounding and reducing the risk of electrical interference.
• Emergency Backup Power Systems: Suitable for applications involving emergency backup power systems, providing a secure connection for conductors in generators and backup power sources.
• Commercial Buildings: Used in commercial buildings to connect conductors in various applications, contributing to the electrical infrastructure that powers systems and equipment.

Item Features

• Seamless Electro-Tin Plated Copper Material: Ensures high conductivity and corrosion resistance for reliable electrical connections.
• Pink Color: Facilitates easy identification with a distinctive color code.
• 3.543 Inch Overall Length: Provides ample length for secure conductor termination.
• 1.5 Inch Barrel Length: Accommodates 1/0 AWG conductors for efficient crimping.
• 35 kV Voltage Rating: Suitable for applications requiring high voltage resistance.
• 1/0 AWG Conductor Size: Designed to handle 1/0 AWG conductors for versatility.
• 1/4 Inch Stud Size: Compatible with common stud sizes for easy installation.
• I-42 Die Index: Indicates compatibility information for proper crimping tools.
• 1.687 Inch L x 0.738 Inch W x 0.125 Inch Thk Pad Size: Provides a stable mounting surface for the lug.
• 2 Pad Hole(S): Allows flexibility in conductor termination and installation.
• 7/8 Inch Pad Hole Spacing: Facilitates consistent and efficient spacing in various applications.
• Long Barrel Type: Enhances flexibility and ease of use during installation.
• ID X OD: 0.39 Inch x 0.515 Inch: Accommodates specific wire dimensions for secure connections.
• Barrel Type Chamfered Entry: Streamlines conductor insertion, improving installation efficiency.
• Temperature Rating 90 Deg C: Suitable for applications with elevated temperature requirements.
