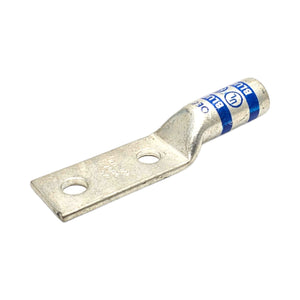

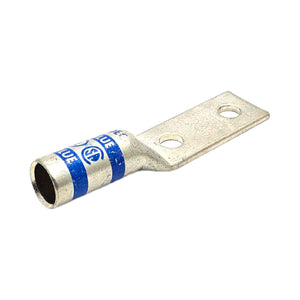

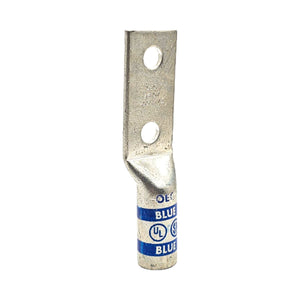

Copper Long Barrel Two Hole Compression Lugs 400 MCM 1/2-inch Bolt Size

The Conversions Technology Copper Compression Lug is engineered for exceptional performance in various electrical applications. Designed for 400 MCM conductor size, this lug features a 2-hole configuration with a 1/2-inch bolt size and 1-3/4-inch hole spacing for optimal fit and stability. The long barrel provides enhanced conductivity, while the tin-plated finish ensures corrosion resistance and durability. Easily identifiable by its blue color code, this lug guarantees secure, efficient electrical connections, making it a reliable choice for demanding electrical systems.

Key Features

• Material: Seamless Electro-Tin Plated Copper - Provides excellent durability, electrical conductivity, and resistance to corrosion for long-lasting performance.

• Color Code: Blue - Easy visual identification for quick and efficient use in various electrical systems.

• Overall Length: 5.792 Inches - Offers the right length to accommodate different installation needs and secure connections.

• Voltage Rating: 35 kV - Suitable for high-voltage applications, providing versatility in demanding electrical environments.

• Conductor Size: 400 MCM - Precisely designed to fit 400 MCM conductors, ensuring optimal performance in heavy-duty applications.

• Stud Size: 1/2 Inch - Standard stud size for compatibility with various mounting hardware and easy installation.

• Die Index: I-76 - Ensures compatibility with crimping tools for accurate, secure terminations.

• Pad Size: 3 Inch L x 1.365 Inch W x 0.187 Inch Thk - Provides a stable, large pad area for secure conductor attachment.

• 2-Hole Design: With 1-3/4 Inch Pad Hole Spacing - Simplifies installation, providing flexibility and enhanced stability for connections.

• Barrel Type: Long Barrel - Optimizes conductivity and offers enhanced stability for reliable connections.

• Size: 0.75 Inch ID x 0.937 Inch OD - Precisely sized for a secure fit and efficient crimping with conductors.

• Barrel Type: Chamfered Entry - Eases conductor insertion, reducing installation time and ensuring a secure fit.

• Temperature Rating: 90 Deg C - Suitable for moderate temperature environments, offering stability and safe operation under varying conditions.
