Copper Short Barrel Two Hole Compression Lugs 3 AWG 1/4-inch Bolt Size

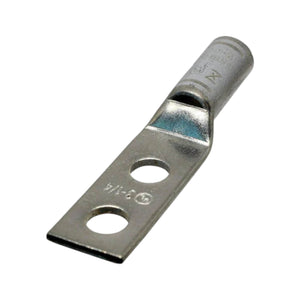

The 2-Hole Copper Compression Lug is a high-quality connector designed for conductors up to 3 AWG. Featuring a standard barrel, 1/4-inch bolt size, and a white color code for easy identification, this tin-plated lug ensures reliable electrical connections. The sight window allows for visual inspection, providing assurance of a secure connection in a variety of applications.

Key Features

• High Conductivity Material: Seamless Electro-Tin Plated Copper for enhanced conductivity and corrosion resistance.
  Versatile Conductor Size: Accommodates up to 3 AWG conductors, suitable for a range of applications.
  High Voltage Rating: With a 35 kV voltage rating, suitable for high-voltage applications.
  Sturdy Construction: Robust design for industrial applications, ensuring durability and performance.
  Two-Hole Design: Facilitates secure connections to multiple terminals or conductors.
  Standard Barrel Type: Ensures compatibility with various wiring setups and electrical components.
  Temperature Resilience: Temperature rating of 90°C, suitable for diverse environmental conditions.
  Chamfered Entry: Barrel type with chamfered entry for ease of conductor insertion.
  Pad Hole Spacing: 1-3/4 Inch pad hole spacing for flexibility in mounting and installation.
  Visual Inspection Window: Includes a sight window for visual inspection of the connection.
  Generous Pad Size: 3 Inch L X 1.189 Inch W X 0.152 Inch Thk pad size for stability in connections.
  Color-Coded Identification: White color code for easy visual identification in complex wiring setups.

Technical Specifications
