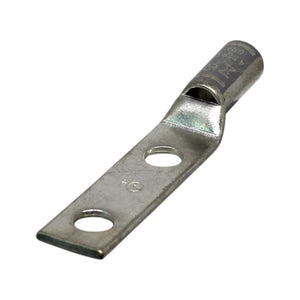

Copper Short Barrel Two Hole Compression Lugs 4 AWG 1/4-inch Bolt Size

The is a robust copper compression lug designed for a wide range of electrical applications. It supports a 4 AWG conductor size and features two holes, a 1/4-inch bolt size, and 5/8-inch hole spacing, ensuring secure and efficient electrical connections. The lug is equipped with a standard barrel and an integrated sight window for easy visual inspection. Its tin-plated finish provides excellent corrosion resistance, while the distinctive gray color code enables quick identification and ensures compatibility with standard color-coding systems. This lug guarantees reliable and long-lasting performance in various electrical settings.

Key Features

• Copper Construction – Provides excellent electrical conductivity and ensures reliable, long-lasting connections.
• 4 AWG Conductor Size – Designed for 4 AWG wire, suitable for medium to larger conductors.
• 1/4-inch Bolt Size – Standard bolt size that ensures a secure and stable connection.
• 5/8-inch Hole Spacing – Provides optimal hole spacing for secure attachment points and efficient electrical connections.
• Standard Barrel – Features a standard barrel for easy wire insertion and consistent compression.
• Sight Window – Allows for visual inspection of the crimped connection to ensure proper installation and quality control.
• Tin Plating & Gray Color Code – Tin plating increases corrosion resistance, and the gray color code ensures quick identification and compatibility with standard color-coding systems.


Technical Specifications
