1-Hole Copper Compression Lug 4 AWG #10 Bolt | 125A 90°C Tin-Plated
Shipping calculated at checkout
SKU: 210-98006
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

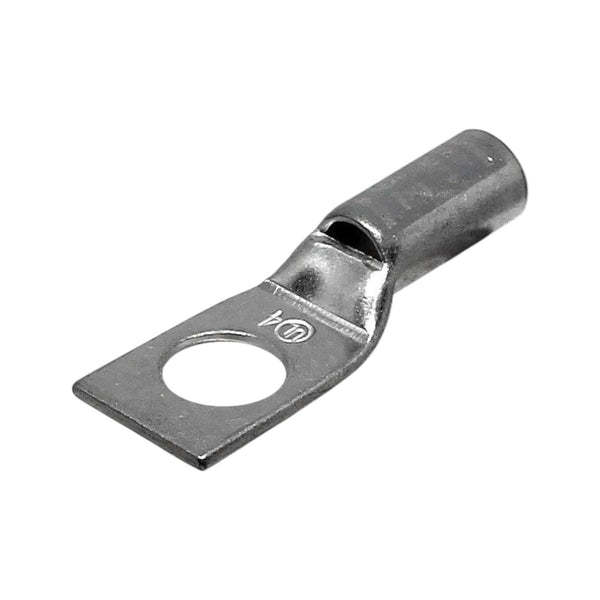

The Conversions Tech 1-Hole Copper Compression Lug is a short barrel terminal designed for 4 AWG conductors and #10 bolt mounting. Engineered for industrial electrical installations, this lug provides a secure crimped connection for power distribution, control panels, and equipment grounding applications. The tin-plated copper construction delivers reliable conductivity with corrosion resistance, while the integrated sight window enables visual verification of proper wire insertion during crimping.
Specifications
- Wire Size: 4 AWG
- Stud/Bolt Size: #10
- Material: Tin-plated copper
- Color Code: Gray

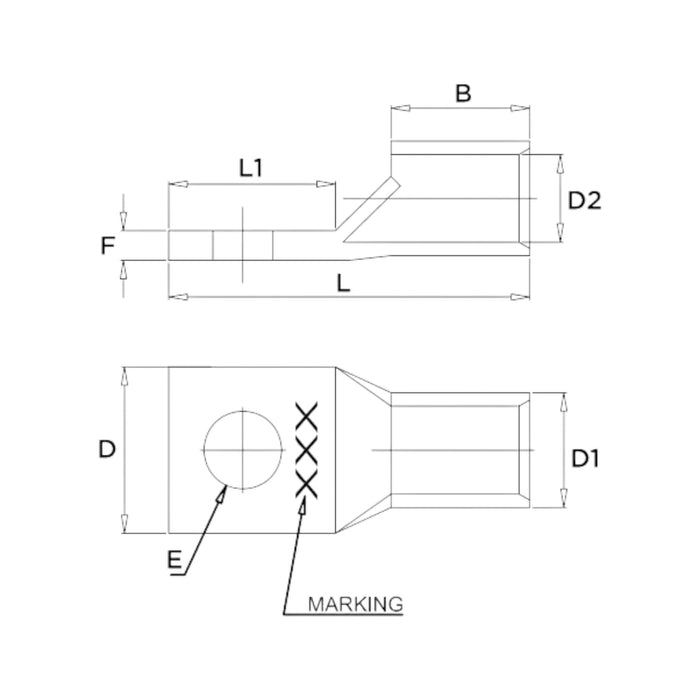

- Overall Length (L): 36.6mm (1.44")
- Length 1 (L1): 15.2mm (0.60")
- Diameter (D): 13.7mm (0.54")
- Diameter 1 (D1): 9.1mm (0.36")
- Diameter 2 (D2): 7.1mm (0.28")
- Width (B): 17.5mm (0.69")
- Width 1 (E): 5.6mm (0.22")
- Thickness (F): 1.9mm (0.07")
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Maximum Amp Rating: 125A
- Barrel Type: Standard short barrel with sight window
- Configuration: Single hole
- Certifications: UL Approved, CE Certified, RoHS Compliant
Cross-Reference
Equivalent to standard industrial one-hole compression lugs from major manufacturers. Used in applications requiring 4 AWG termination to #10 studs in switchgear, motor controls, and power distribution equipment.
FAQ
What crimping tool is required for this 4 AWG compression lug?
Use a crimping tool rated for 4 AWG copper lugs with a die that matches the standard barrel dimensions. The sight window allows visual confirmation of full wire insertion before crimping.
Is this lug rated for 90°C conductor ampacity?
Yes. The 90°C temperature rating supports full 4 AWG ampacity per NEC tables when installed with 90°C rated conductors and proper termination practices.
Can this lug be used in wet or corrosive environments?
The tin-plated finish provides corrosion resistance suitable for industrial environments. Verify specific environmental suitability with your application requirements and applicable electrical codes.
