One-Hole Copper Compression Lug 4 AWG 5/16" Stud | 35kV 90°C 125A
Shipping calculated at checkout
SKU: 210-98009
Only 9 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

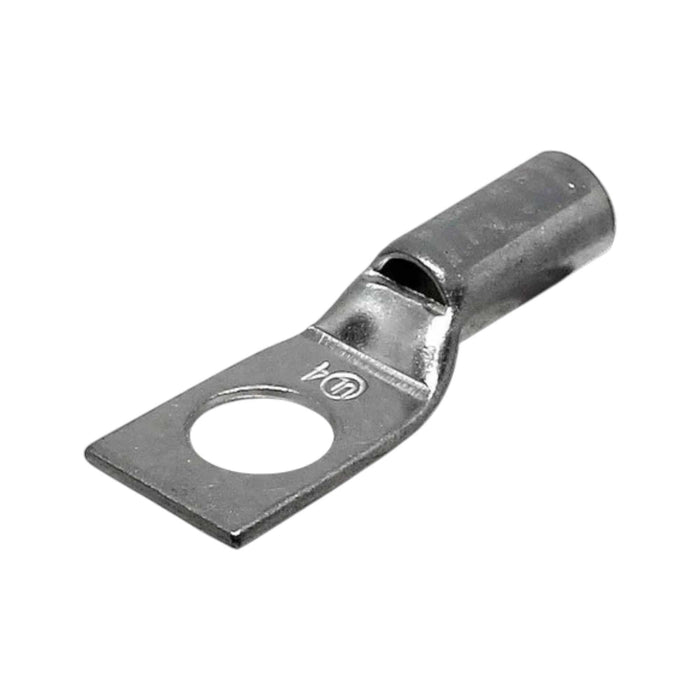

The Conversions Tech one-hole copper compression lug terminates 4 AWG conductors to 5/16-inch studs in industrial, commercial, and renewable energy installations. The short barrel design with sight window enables visual verification of conductor insertion, while electro tin-plated seamless copper construction resists oxidation and maintains conductivity. Gray color coding aids phase identification in complex panels and switchgear assemblies.
Specifications
- Wire Size: 4 AWG
- Stud/Bolt Size: 5/16"
- Material: Electro tin-plated seamless copper
- Barrel Type: Standard straight barrel
- Pad Dimensions: 0.875" × 0.486"
- Pad Hole Configuration: One hole
- Overall Length (L): 40.4mm (1.59")
- Neck Length (L1): 19.1mm (0.75")
- Outer Diameter (D): 13.7mm (0.54")
- Inner Diameter (D1): 9.1mm (0.36")
- Hole Diameter (D2): 7.1mm (0.28")
- Width (B): 17.5mm (0.69")
- Hole Spacing (E): 8.8mm (0.35")
- Thickness (F): 1.9mm (0.07")
- Wire Strip Length: 0.562"
- Voltage Rating: 35 kV
- Current Rating: 125A max
- Temperature Rating: 90°C
- Color Code: Gray
- Features: Sight window, chamfered cable entry
- Certifications: UL 453G/467/486A/B, CSA approved, CE certified, RoHS compliant
Cross-Reference
Equivalent to Burndy YAV/YA series, Panduit LCA/LCB series, and Ilsco CCL-4 type compression lugs. Conversions Tech lugs deliver comparable electrical performance and dimensional compatibility at reduced procurement cost.
FAQ
What crimping tool is required for 4 AWG compression lugs?
Use an industry-standard crimp tool with a die set rated for 4 AWG copper compression terminals. The short barrel design accepts standard hex or indent crimp profiles—verify die compatibility with your specific tool manufacturer.
Is this lug suitable for medium voltage applications?
The 35 kV voltage rating supports medium voltage terminations when properly installed with appropriate insulation and clearances per NEC and local utility standards. Always confirm system voltage requirements against the lug rating.
Does the sight window indicate proper conductor insertion depth?
Yes. The sight window allows visual confirmation that the stripped conductor is fully inserted to the specified 0.562" strip length before crimping. This prevents incomplete terminations that create high-resistance connections.
Why Pros Buy Direct from Conversions Tech
Engineered in the USA. Our U.S.-based engineering team designs and specifies our core product lines, and every product we carry — designed in-house or built to our exact specifications by certified partner factories — is quality-verified before it ships. UL/CSA listed where required, NEC compliant.
Cross-reference savings. Direct equivalents to Burndy, Hubbell, and other OEM part numbers at up to 30% less — same specs, same certifications, without the big-brand markup.
Real technical support. Need a torque spec, die reference, or an OEM quote? You’ll speak directly with the Conversions Tech engineering desk — not a script reader — for instant answers, custom kitting, and private-label options.
Fast US fulfillment. Orders in by 2PM ET ship same day from our US warehouse, nationwide ground and expedited.
