Short Barrel Compression Lug 4 AWG 3/8" Bolt | 90°C 35kV 125A UL/CE
Shipping calculated at checkout
SKU: 210-98010
790 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

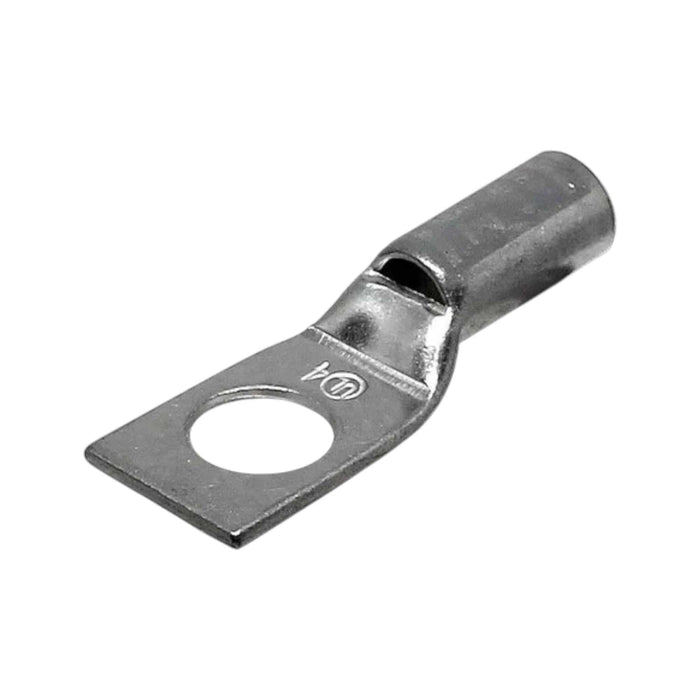

The Conversions Tech short barrel one-hole compression lug terminates 4 AWG copper conductors in industrial panels, commercial distribution equipment, and switchgear. The single-hole design with 3/8-inch bolt mounting provides a secure mechanical connection while the sight window allows visual confirmation of full conductor insertion before compression. Tin-plated copper construction resists oxidation and maintains conductivity over the service life of the installation.
Specifications
- Wire Size: 4 AWG
- Stud Size: 3/8"
- Color Code: Gray
- Overall Length (L): 42.4mm (1.67")
- Neck Length (L1): 21.1mm (0.83")
- Outer Diameter (D): 15.2mm (0.60")
- Inner Diameter (D1): 9.1mm (0.36")
- Hole Diameter (D2): 7.1mm (0.28")
- Width (B): 17.5mm (0.69")
- Hole Spacing (E): 10.4mm (0.41")
- Thickness (F): 1.7mm (0.07")
- Material: Tin Plated Copper
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Max Amp Rating: 125A
- UL Approved: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to short barrel one-hole compression lug form factors from major manufacturers. Verify dimensional compatibility with Panduit, Burndy, and Ilsco 4 AWG short barrel series when substituting.
FAQ
What crimping tool and die size are required for this lug?
Use an industry-standard compression tool with dies appropriate for short barrel lugs on 4 AWG copper. The sight window confirms proper die placement before compression.
Is this lug rated for 90°C conductor applications?
Yes. The 90°C temperature rating matches THHN/THWN-2 and XHHW-2 conductors at 75°C ampacity or higher when used with 90°C rated wire.
Can this lug be used in medium voltage terminations?
The 35 kV voltage rating supports medium voltage applications. Follow applicable termination kits and clearances per IEEE 404 and manufacturer instructions for the specific cable and equipment.
Why Pros Buy Direct from Conversions Tech
Engineered in the USA. Our U.S.-based engineering team designs and specifies our core product lines, and every product we carry — designed in-house or built to our exact specifications by certified partner factories — is quality-verified before it ships. UL/CSA listed where required, NEC compliant.
Cross-reference savings. Direct equivalents to Burndy, Hubbell, and other OEM part numbers at up to 30% less — same specs, same certifications, without the big-brand markup.
Real technical support. Need a torque spec, die reference, or an OEM quote? You’ll speak directly with the Conversions Tech engineering desk — not a script reader — for instant answers, custom kitting, and private-label options.
Fast US fulfillment. Orders in by 2PM ET ship same day from our US warehouse, nationwide ground and expedited.
