Copper Short Barrel One Hole Compression Lugs 1/0 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
Only 15 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

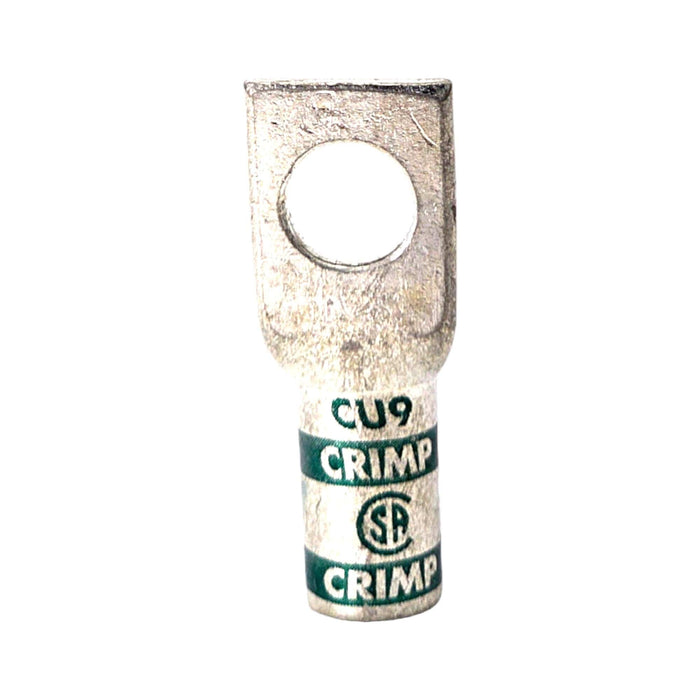

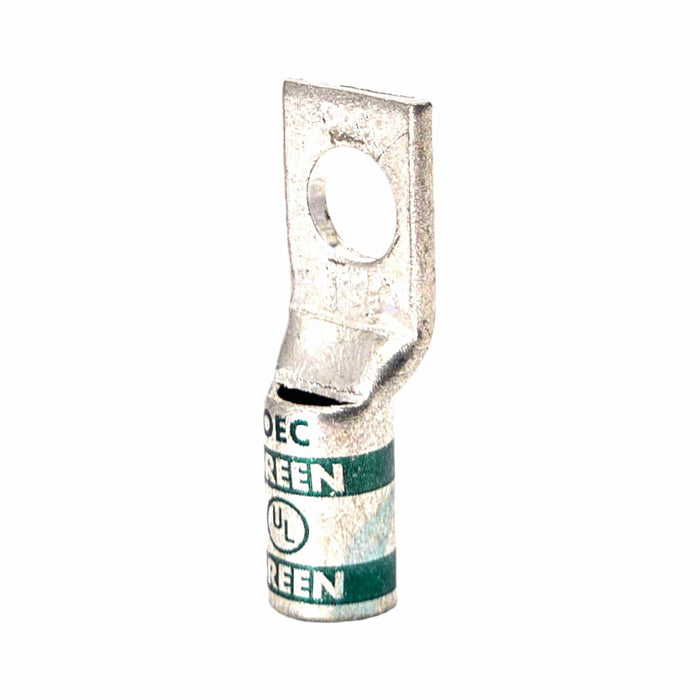

The Conversions Tech 1-Hole Lug is expertly crafted to support 1/0 AWG conductors, featuring a standard barrel design with a sight window for precise wire placement. Its robust tin-plated copper build ensures long-lasting durability and superior conductivity, while the green color code allows for swift identification during installation. This lug provides a secure and efficient solution for electrical connections in various applications, ensuring both reliability and performance.
Key Features
- High-Quality Copper Construction: Made from durable, tin-plated copper, ensuring superior conductivity and corrosion resistance.
- 1/0 AWG Conductor Size: Designed to securely accommodate 1/0 AWG cables, providing a reliable electrical connection.
- 1-Hole Configuration: The single-hole design ensures easy and stable installation, compatible with standard bolts.
- Standard Barrel Design: The standard barrel helps create a secure and robust crimp for a long-lasting connection.
- Sight Window for Accurate Placement: Features a sight window for visual inspection, ensuring correct wire placement before crimping.
- Green Color Code: The green color code allows for easy identification, speeding up installation and reducing errors.
-
Tin-Plated for Durability: The tin-plated finish provides added resistance to corrosion, making it suitable for harsh environments and extended use.

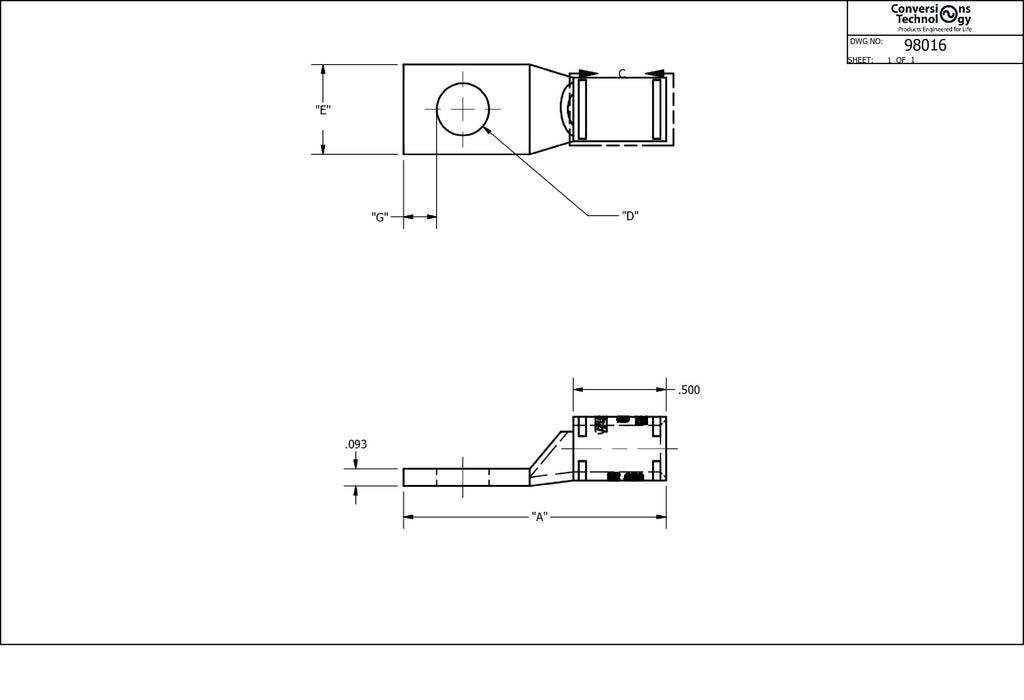

Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Green |
| Overall Length | 1.83 inches |
| Barrel Length | 0.625 inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 1/0 AWG |
| Stud Size | 1/4 inch |
| Die Index | I-37 |
| Pad Size | 0.875 inch L x 0.673 inch W x 0.109 inch Thk |
| Pad Hole | 1 |
| Barrel Type | Standard |
| Size | Inner Diameter 0.359 inch, Outer Diameter 0.468 inch |
| Barrel Entry Type | Chamfered |
| Temperature Rating | 90°C |
