Short Barrel Copper Compression Lug 4/0 AWG 3/8" Stud | 90°C 360A UL
Shipping calculated at checkout
SKU: 210-98017
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Short Barrel Copper Compression Lug is a one-hole terminal connector engineered for 4/0 AWG copper conductors. Designed for power distribution panels, control systems, renewable energy installations, and heavy-duty electrical terminations where space constraints favor a shorter barrel profile. The tin-plated copper construction provides conductivity and corrosion resistance, while the integrated sight window allows visual confirmation of proper conductor insertion prior to crimping.
Specifications
- Wire Size: 4/0 AWG
- Stud Size: 3/8"
- Configuration: One hole
- Barrel Type: Short barrel
- Material: Tin-plated copper
- Color Code: Purple

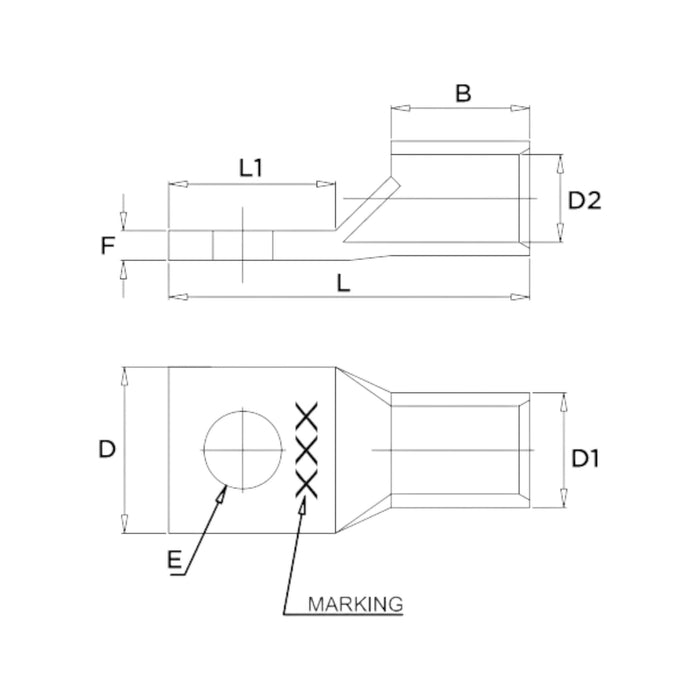

- Overall Length (L): 55.4 mm (2.50")
- Length 1 (L1): 21.1 mm (0.80")
- Diameter (D): 25.4 mm (1.00")
- Diameter 1 (D1): 17.4 mm (0.70")
- Diameter 2 (D2): 14.2 mm (0.60")
- Width (B): 25.4 mm (1.00")
- Width 1 (E): 10.4 mm (0.40")
- Thickness (F): 3.1 mm (0.12")
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Maximum Amp Rating: 360 A
- Certifications: UL Approved, CE Certified, RoHS
- Features: Sight window for conductor verification
Cross-Reference
Equivalent to short-barrel compression lug form factors from major manufacturers including Panduit, Burndy, and Ilsco. Provides comparable electrical and mechanical performance at lower unit cost for high-volume installations.
FAQ
What is the difference between short barrel and standard barrel compression lugs?
Short barrel lugs have a reduced barrel length for applications with space constraints or where limited conductor length is available. The electrical and mechanical ratings remain equivalent to standard barrel designs when properly crimped with the correct die and tool. Always verify your crimping tool is compatible with short-barrel dies.
Does the purple color code indicate a specific wire size?
Yes. The purple color code identifies this lug for use with 4/0 AWG conductors per industry standard color-coding systems. This allows quick field verification that the correct lug has been selected for the conductor size.
Is this lug suitable for 35 kV medium voltage applications?
The lug is rated for 35 kV maximum voltage. Verify that your complete termination assembly—including insulation, stress relief, and clearances—meets the requirements of your specific medium voltage application and applicable codes.
