Copper Short Barrel One Hole Compression Lugs 2/0 AWG 1/4 Bolt Size
Shipping calculated at checkout
SKU: 210-98020
988 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

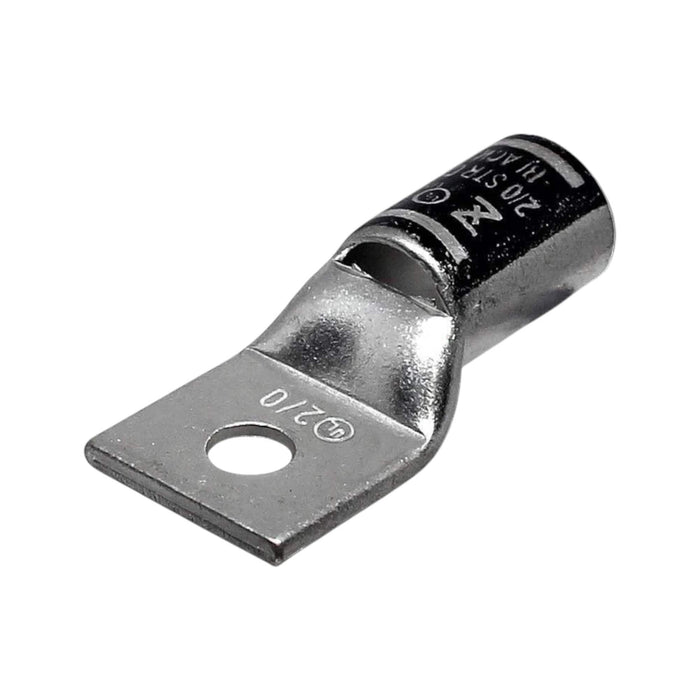

The Conversions Tech Copper Compression Lug is a durable connector designed for 2/0 to 4 AWG flexible conductors, featuring a 1-hole configuration and a 1/4-inch bolt size. It includes a standard barrel, sight window, and a black color code for easy identification. The tin-plated construction ensures corrosion resistance, providing a secure and efficient electrical connection in various applications. This lug is built for long-lasting performance and reliability in demanding environments.
Key Features
- Durable Copper Construction: Made from high-quality copper, ensuring excellent electrical conductivity and long-lasting reliability.
- Conductor Size Range: Designed to accommodate 2/0 to 4 AWG flexible conductors, offering versatility for a wide range of applications.
- 1-Hole Configuration: The single hole design ensures a stable and secure connection to terminals, enhancing electrical terminations.
- 1/4-Inch Bolt Size: Compatible with 1/4-inch bolt sizes, simplifying installation and ensuring compatibility with standard terminal sizes.
- Standard Barrel Design: The standard barrel ensures a reliable crimp connection, providing strong and secure electrical terminations.
- Sight Window: Features a sight window for visual inspection, ensuring correct wire insertion and proper crimping during installation.
-
Tin-Plated & Black Color Code: The tin-plated finish provides corrosion resistance, while the black color code aids in quick identification during installations.

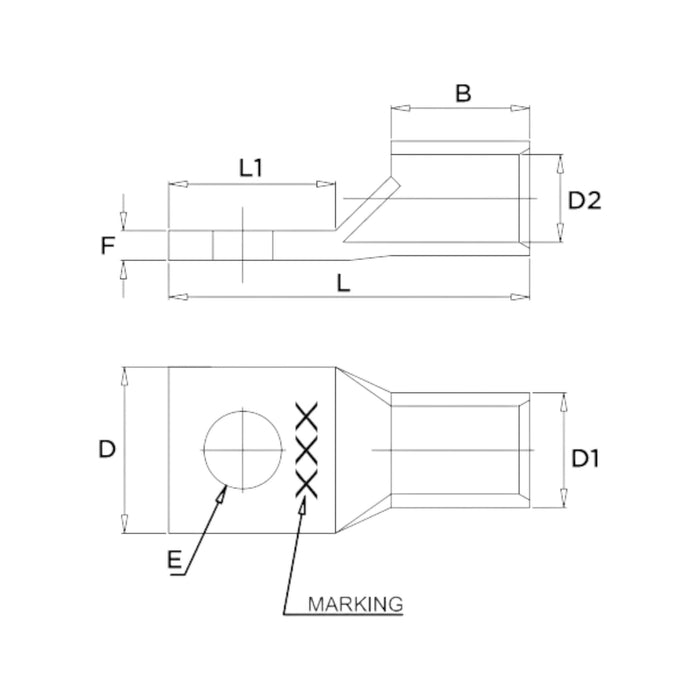

Technical Specifications
| Wire Size | 2/0 AWG |
|---|---|
| Stud Size | 1/4" Stud |
| Color | Black |
| Overall Length (L) | 46.1mm (1.80") |
| Length 1 (L1) | 18.4mm (0.70") |
| Diameter (D) | 20.8mm (0.80") |
| Diameter 1 (D1) | 14.2mm (0.60") |
| Diameter 2 (D2) | 11.7mm (0.50") |
| Width (B) | 21.3mm (0.80") |
| Width 1 (E) | 7.1mm (0.30") |
| Thickness (F) | 2.5mm (0.10") |
| Material | Tin Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Maximum Amp Rating | 265A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
