1-Hole Copper Compression Lug 3/0 AWG 1/4" Stud | 90°C 35kV 310A
Shipping calculated at checkout
SKU: 210-98024
990 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech 3/0 AWG copper compression lug is engineered for high-current electrical terminations in industrial, renewable, and utility-grade systems. This single-hole terminal features a standard barrel design with integrated sight window for visual confirmation of proper conductor seating. The electro-tin plated copper construction provides corrosion resistance and maintains conductivity across demanding operating conditions. Color-coded orange for immediate wire gauge identification during installation and maintenance.
Specifications
- Wire Size: 3/0 AWG
- Stud Size: 1/4" (1-hole configuration)
- Material: Seamless high-conductivity copper, electro-tin plated
- Color Code: Orange

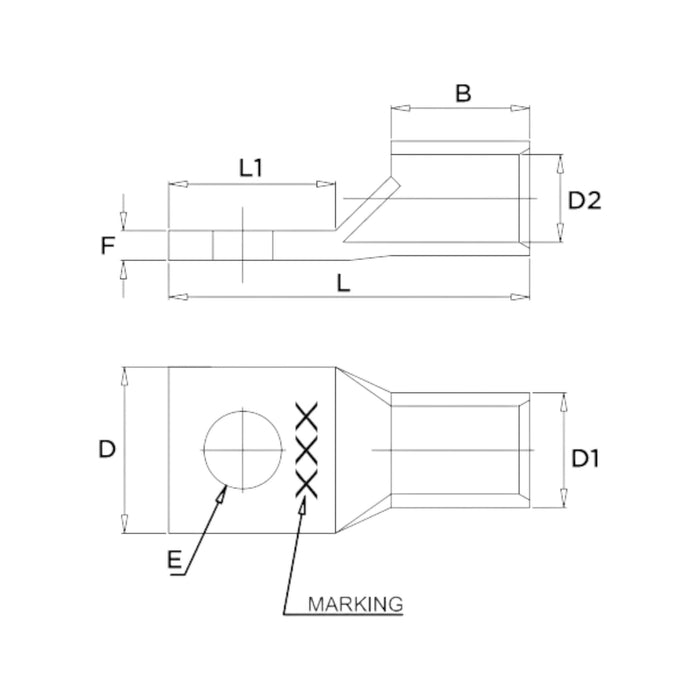

- Overall Length (L): 51.7 mm (2.04")
- Barrel Length (L1): 18.4 mm (0.70")
- Diameter (D): 23.0 mm (0.90")
- Inner Diameter (D1): 15.7 mm (0.60")
- Inner Diameter (D2): 13.0 mm (0.50")
- Width (B): 24.4 mm (0.96")
- Width (E): 7.1 mm (0.30")
- Thickness (F): 2.7 mm (0.10")
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Maximum Amp Rating: 310 A
- Certifications: UL Approved, CE Certified, RoHS Compliant
- Features: Sight window for conductor insertion verification
Cross-Reference
Equivalent to standard one-hole compression lug configurations from major manufacturers including Panduit, Burndy, and Ilsco. Designed to industry-standard dimensions for direct substitution in existing installations.
FAQ
What crimping tool is required for this 3/0 AWG compression lug?
Use a compression tool with the appropriate die set for 3/0 AWG copper terminals. Verify die compatibility with the standard barrel geometry. The sight window confirms full conductor insertion before crimping.
Is this lug rated for wet locations or outdoor use?
The electro-tin plating provides corrosion resistance. For specific environmental ratings and installation conditions, consult the applicable NEC articles and local authority having jurisdiction.
Can this lug be used on both copper and aluminum conductors?
This terminal is engineered for copper conductors only. Do not install on aluminum wire. The 3/0 AWG sizing and tin-plated copper construction are optimized for copper-to-copper connections.
