Copper Compression Lug 250 MCM 1/4" Bolt | 35kV 90°C Tin-Plated
Shipping calculated at checkout
SKU: 210-98032
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

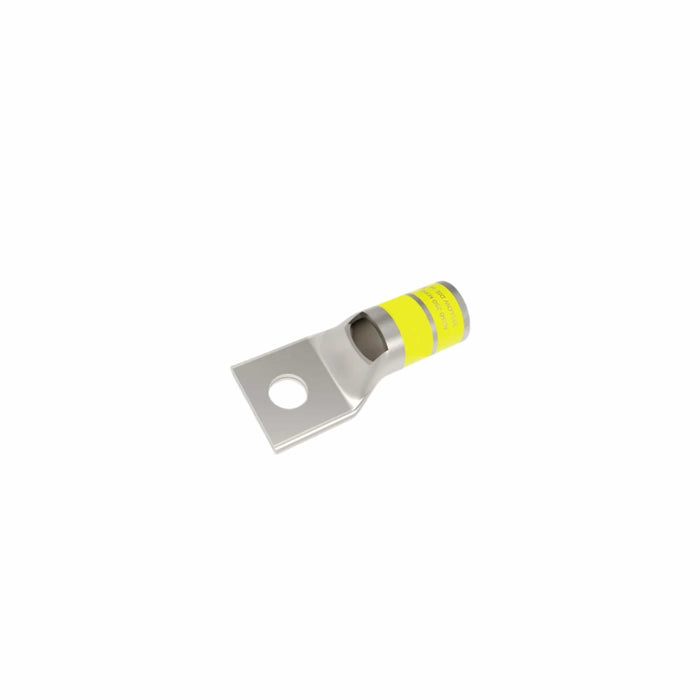

The Conversions Tech Copper Short Barrel One-Hole Compression Lug is a spec-built terminal connector for 250 MCM copper conductors. Engineered for medium-power electrical applications, this lug features a 1/4-inch bolt hole for standard terminal compatibility and a sight window for visual verification of conductor insertion and crimp quality. The tin-plated copper construction provides corrosion resistance while maintaining conductivity. Yellow color coding per industry standards allows for quick field identification. Designed for use in switchgear, panelboards, motor control centers, and power distribution equipment where reliable terminations are critical.
Specifications
- Conductor Size: 250 MCM copper
- Stud/Bolt Size: 1/4 inch
- Material: Seamless electro-tin plated copper
- Barrel Type: Standard with chamfered entry

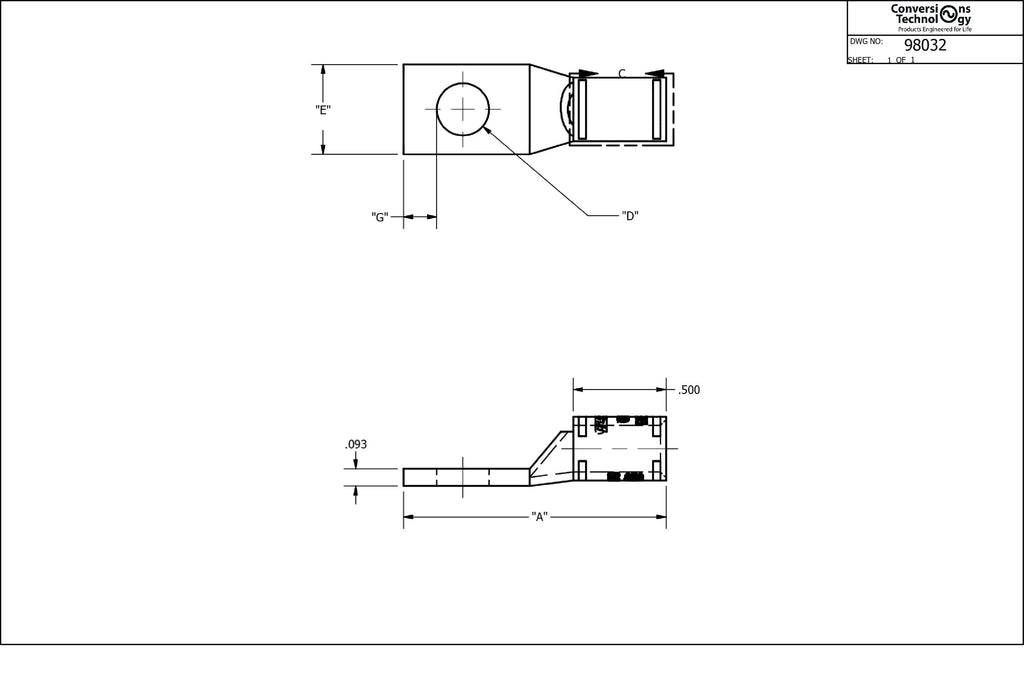

- Barrel Length: 1.063 inches
- Inner Diameter: 0.593 inches
- Outer Diameter: 0.75 inches
- Pad Dimensions: 0.875" L x 1.088" W x 0.157" thick
- Hole Configuration: 1 hole
- Overall Length: 2.469 inches
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-62
- Color Code: Yellow
- Sight Window: Yes
Cross-Reference
Equivalent to standard short-barrel one-hole compression lugs from major manufacturers. Form factor matches industry-standard 250 MCM terminal lugs used in Crouse-Hinds, Appleton, and Burndy type applications. Spec-built by certified partner factories to Conversions Tech engineering requirements.
FAQ
What crimping tool and die should I use with this lug?
Use a compression tool with die index I-62. Always verify the die index marking on your tooling before crimping. The sight window allows visual confirmation that the conductor is fully inserted before compression.
Is this lug rated for 90°C conductor ampacity?
Yes. The 90°C temperature rating supports full ampacity of 250 MCM copper conductors per NEC tables. Verify your application does not exceed 35 kV. Temperature rating applies to the lug itself; final assembly ratings depend on complete termination conditions.
Can I use this lug with aluminum conductors?
No. This lug is specified for copper conductors only. The tin plating and barrel dimensions are engineered for copper. Using with aluminum conductors requires a different product rated for that material combination.
