Short Barrel Compression Lug 250 MCM 1/2" Stud | 35kV 90°C Tin-Plated
Shipping calculated at checkout
SKU: 210-09804
1406 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Copper Short Barrel One Hole Compression Lug is a high-conductivity connector engineered for 250 MCM stranded conductors in industrial and commercial power distribution. The short barrel profile reduces overall installation depth while maintaining full compression integrity. Designed for 1/2-inch bolt mounting, this lug accommodates medium-voltage applications up to 35kV with a 90°C temperature rating. The electro tin-plated copper construction provides corrosion resistance for extended service life in demanding electrical environments.

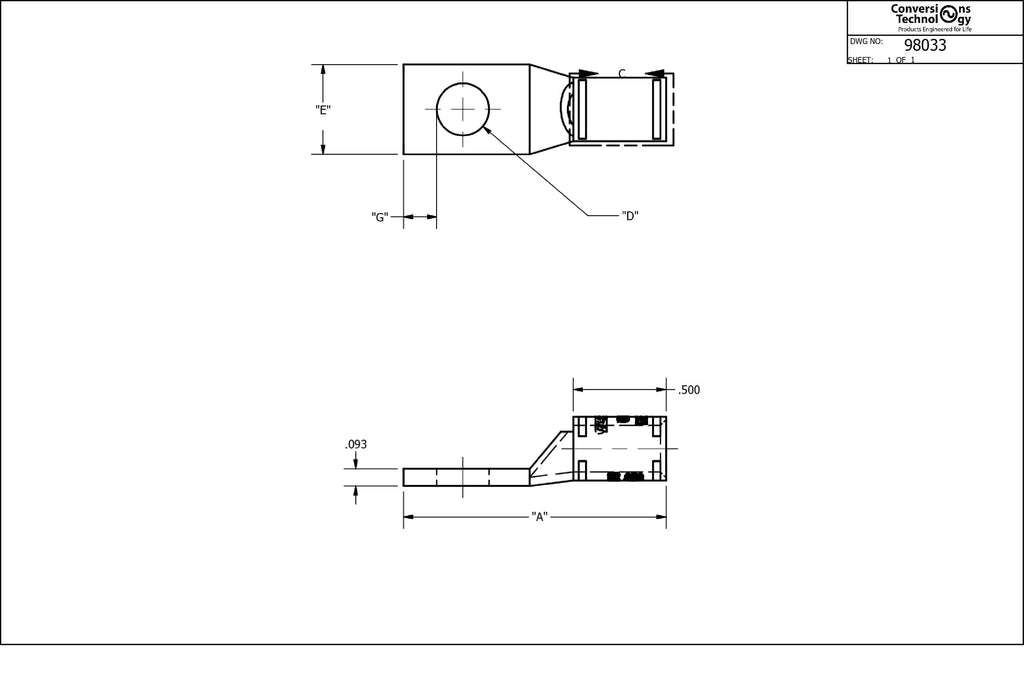

Specifications
- Material: Electro Tin Plated Copper
- Conductor Size: 250 MCM Stranded
- Stud Size: 1/2 inch
- Overall Length: 2.67 inches
- Barrel Length: 1.06 inches
- Pad Size: 1.11 inches width x 0.16 inches thickness
- Number of Pad Holes: 1
- Voltage Rating: 35 Kilovolts
- Temperature Rating: 90°C
- Die Index: 16
- Barrel Type: Standard, straight, non-insulated
- Cable Entry Type: Chamfered, beveled entry
- Wire Strip Length: 1.125 inch
- Color: Yellow
Cross-Reference
Equivalent form factor to Burndy YAV, Panduit LCA, and Ilsco compression lugs for 250 MCM 1-hole applications. Short barrel design matches competitive profiles for restricted-space terminations at reduced cost.
FAQ
What crimping tool die index is required for this lug?
Die index 16. Verify your compression tool manufacturer's die chart for 250 MCM copper short barrel lugs to ensure proper crimp profile.
Is this lug rated for wet locations or outdoor use?
The electro tin-plated copper construction provides corrosion resistance. For specific environmental ratings and code compliance, consult your local AHJ and applicable NEC articles for exposed termination requirements.
Why choose a short barrel design over standard barrel?
Short barrel lugs reduce overall termination length for confined spaces while maintaining equivalent electrical performance. The 1.06-inch barrel length requires precise conductor preparation per the 1.125-inch strip length specification.
