1-Hole Copper Compression Lug 600 MCM 5/8" | 35kV 90°C Tin-Plated
Shipping calculated at checkout
SKU: 210-98042
Only 14 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

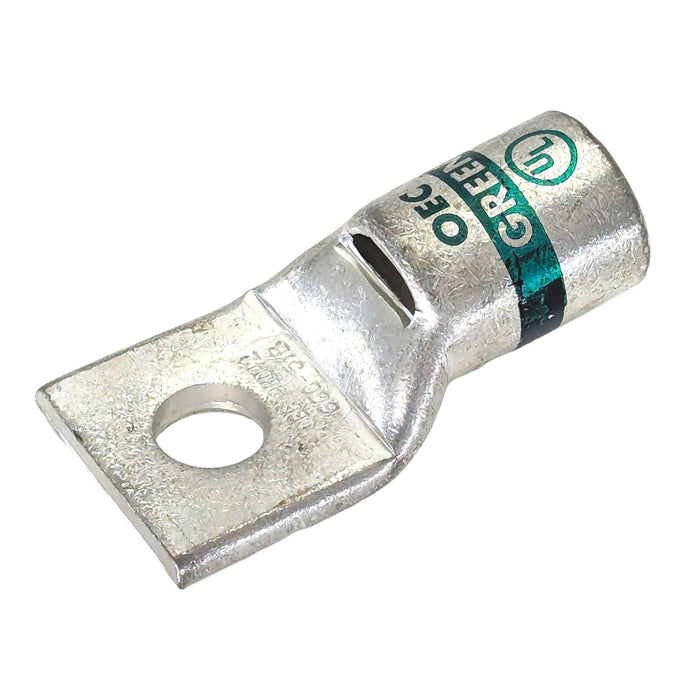

The 1-hole copper compression lug is a high-current terminal for 600 MCM conductors in industrial power distribution, switchgear, and transformer connections. The seamless electro-tin plated copper construction provides conductivity and corrosion resistance for long-term service in electrical systems. A chamfered barrel entry and sight window support proper conductor insertion and crimp verification during installation. The green color code identifies the 600 MCM size for field accuracy.
Specifications
- Material: Seamless Electro-Tin Plated Copper
- Conductor Size: 600 MCM
- Stud Size: 5/8 inch
- Barrel Type: Standard
- Barrel Length: 1.375 inches
- ID x OD: 0.92 inch ID x 1.187 inch OD
- Barrel Entry: Chamfered
- Pad Size: 1.437 inches L x 1.712 inches W x 0.267 inches Thk
- Pad Holes: 1
- Overall Length: 3.621 inches
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-94
- Color Code: Green
Cross-Reference
Equivalent form to Burndy YAV, Panduit LCBX, and Ilsco CCL-600 series one-hole compression lugs. Compatible with standard industry tooling and dies for 600 MCM copper terminations.
FAQ
What crimp die is required for this lug?
Die index I-94. Verify compatibility with your crimping tool manufacturer's chart before installation.
Is this lug rated for wet locations?
The source specifies 35 kV and 90°C ratings. Environmental suitability depends on enclosure type and local code requirements for the specific installation.
Can this lug be used with aluminum conductors?
The conductor material specification is copper. For aluminum conductors, specify a lug rated for aluminum or copper/aluminum dual-rated applications per NEC requirements.
