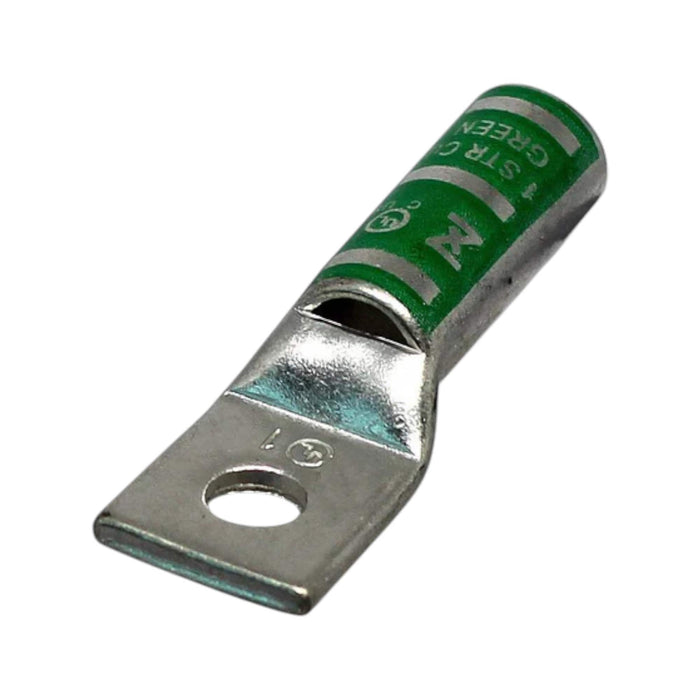

Long Barrel Copper Compression Lug 1 AWG 5/16" Stud | 35kV, 90°C
Shipping calculated at checkout
SKU: 210-98068A
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech long barrel copper compression lug terminates 1 AWG copper conductors to 5/16-inch threaded studs. Engineered for industrial power distribution, transformer terminations, and switchgear connections where high conductivity and mechanical integrity are required. The seamless electro-tin plated copper construction resists oxidation, while the extended barrel length maximizes crimp contact area for low-resistance joints in demanding electrical systems.
Specifications
- Material: Seamless Electro-Tin Plated Copper
- Conductor Size: 1 AWG
- Stud Size: 5/16 Inch
- Barrel Type: Long Barrel
- Barrel Length: 1.375 Inch
- Overall Length: 2.58 Inch
- Pad Size: 0.875 Inch L x 0.673 Inch W x 0.109 Inch Thk
- Pad Holes: 1
- Barrel Entry: Chamfered
- Insulation ID/OD: 0.359 Inch ID x 0.468 Inch OD
- Die Index: I-37
- Voltage Rating: 35 kV
- Temperature Rating: 90 Deg C
- Color Code: Green
- Sight Window: No
Cross-Reference
Equivalent to Panduit LCBX series and Burndy YAV-L long barrel compression lugs. Conversions Tech lugs provide comparable electrical and mechanical performance at reduced procurement cost for MRO and contractor applications.
FAQ
What crimping die do I need for this lug?
Use die index I-37. Verify your crimping tool manufacturer's chart to confirm compatibility with 1 AWG long barrel copper lugs.
Is this lug rated for 90°C conductor ampacity?
Yes. The 90°C temperature rating permits full ampacity per NEC Table 310.16 for 1 AWG copper when properly installed.
Does the chamfered barrel entry require wire stripping to a specific length?
Strip conductor to approximately 1.375 inches to match the barrel length. The chamfered entry assists wire insertion but does not reduce the required strip length for full barrel engagement.
