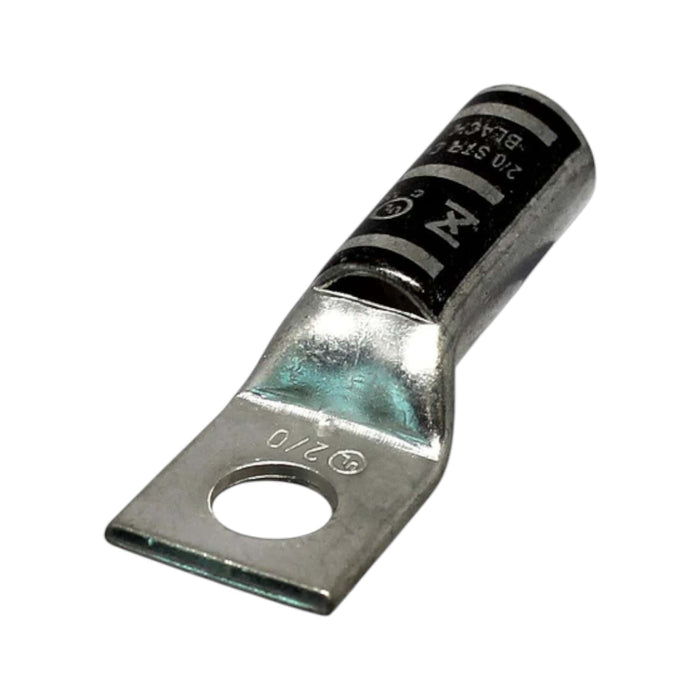

Copper Long Barrel One Hole Compression Lug 2/0 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98071
990 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech 2/0 AWG Copper Compression Lug is expertly engineered for high-performance electrical terminations across a range of applications, including power distribution panels, industrial machinery, construction, and renewable energy systems. Designed with a 5/16-inch bolt size, this lug ensures a secure and stable connection even in demanding environments. Its seamless, electro-tin-plated copper construction enhances conductivity while offering superior corrosion resistance, making it a durable and reliable choice for long-lasting performance in critical electrical systems
Key Features
- Seamless Electro-Tin Plated Copper – Maximizes conductivity and prevents oxidation.
- 2/0 AWG Compatibility – Designed for strong and stable electrical terminations.
- Chamfered Barrel Entry – Allows smooth and hassle-free wire insertion.
- Long Barrel Design (1.5 inches) – Enhances mechanical stability and electrical efficiency.
- Black Color Code – Simplifies identification for quick installations.
- 35 kV Voltage Rating – Supports high-voltage applications.
- Precision Die Index (I-45) – Ensures accurate crimping for a secure connection.
- 5/16-inch Bolt Size – Designed for compatibility with standard 5/16-inch studs.
Technical Specifications
| Wire Size | 2/0 AWG |
| Stud Size | 1/4" |
| Color | Black |
| Overall Length (L) | 55.2mm (2.17") |
| Barrel Length (L1) | 18.4mm (0.72") |
| Barrel Diameter (D) | 20.8mm (0.82") |
| Barrel Inner Diameter (D1) | 14.2mm (0.56") |
| Barrel Outer Diameter (D2) | 11.6mm (0.46") |
| Flange Length (B) | 30.4mm (1.20") |
| Flange Width (E) | 7.1mm (0.28") |
| Thickness (F) | 2.4mm (0.09") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Maximum Amp Rating | 265A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
