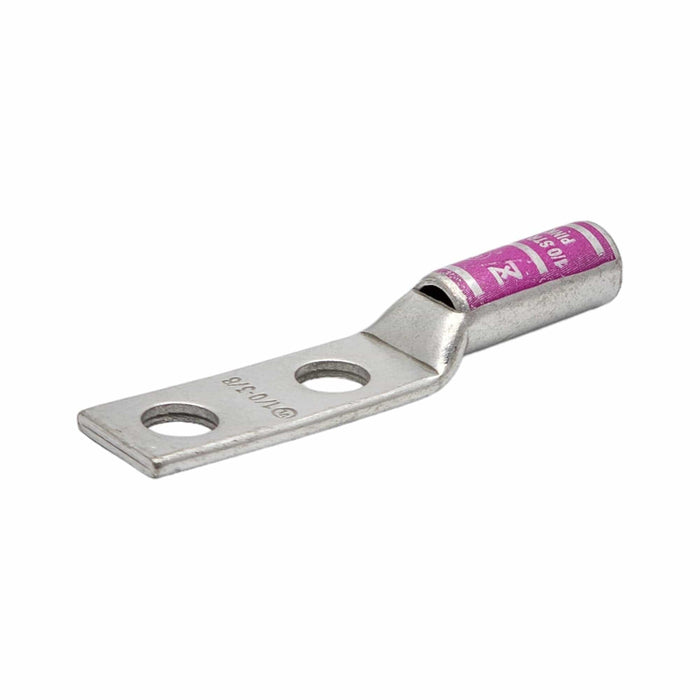

Copper Long Barrel Two Hole Compression Lugs 1/0 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98096
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Copper Compression Lug is a robust connector designed for secure and efficient electrical connections with 1/0 AWG conductors. It features a 3/8-inch bolt size, 1-inch hole spacing, and a long barrel, ensuring enhanced connectivity and stability. The tin-plated finish provides corrosion resistance, ensuring long-lasting performance. The distinctive pink color code allows for quick identification, making installations more efficient. This lug is a reliable choice for a variety of electrical applications, offering both performance and durability.
Key Features
- Seamless Electro-Tin Plated Copper Material: Ensures conductivity and corrosion resistance for reliable electrical connections.
- Pink Color: Facilitates easy identification with a distinctive color code.
- 3.793 Inch Overall Length: Provides ample length for secure conductor termination.
- 1.5 Inch Barrel Length: Accommodates 1/0 AWG conductors for efficient crimping.
- 35 kV Voltage Rating: Suitable for applications requiring high voltage resistance.
- 1/0 AWG Conductor Size: Designed to handle 1/0 AWG conductors for versatility.
- 3/8 Inch Stud Size: Compatible with common stud sizes for easy installation.
- I-42 Die Index: Indicates compatibility information for proper crimping tools.
- 1.937 Inch L x 0.738 Inch W x 0.125 Inch Thk Pad Size: Provides a stable mounting surface for the lug.
- 2 Pad Holes: Allows flexibility in conductor termination and installation.
- 1 Inch Pad Hole Spacing: Facilitates consistent and efficient spacing in various applications.
- Long Barrel Type: Enhances flexibility and ease of use during installation.
- 0.39 Inch Inner Diameter x 0.515 Inch Outer Diameter: Accommodates specific wire dimensions for secure connections.
-
Barrel Type Chamfered Entry: Streamlines conductor insertion, improving installation efficiency.
- Temperature Rating 90°C: Suitable for applications with elevated temperature requirements. Technical Specifications
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Pink |
| Overall Length | 3.793 Inches |
| Barrel Length | 1.5 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 1/0 AWG |
| Stud Size | 3/8 Inch |
| Die Index | I-42 |
| Pad Size | 1.937 Inches (L) x 0.738 Inch (W) x 0.125 Inch (Thk) |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Barrel Type | Long, Chamfered Entry |
| Inner Diameter | 0.39 Inch |
| Outer Diameter | 0.515 Inch |
| Temperature Rating | 90°C |
