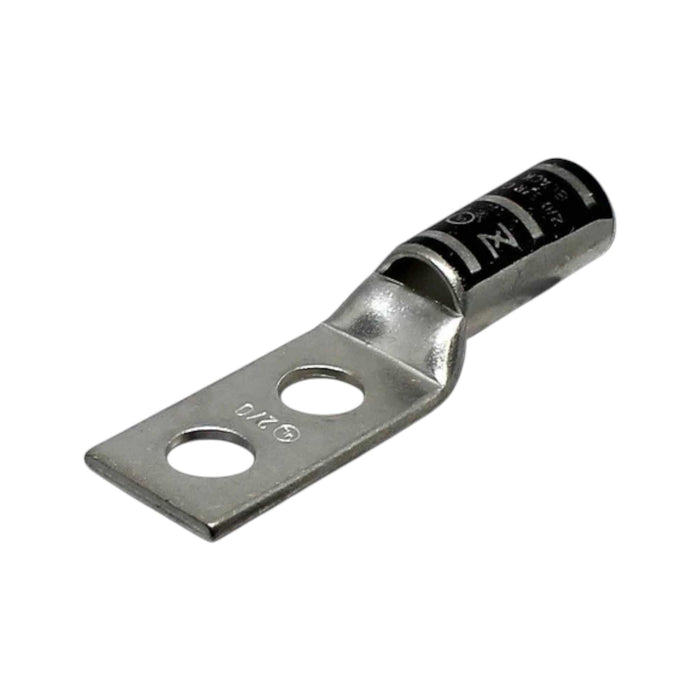

Copper Long Barrel Two Hole Compression Lugs 2/0 AWG 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09969
193 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech durable copper compression lug is expertly crafted for secure, efficient, and long-lasting electrical connections with 2/0 AWG conductors. Designed with a long barrel and dual holes for versatility, this high-performance lug accommodates a 1/2-inch bolt size, ensuring a solid and dependable connection. Its tin-plated surface enhances conductivity and provides superior corrosion resistance. The sleek black color code not only simplifies identification but also facilitates easy installation, making it the ideal choice for a wide range of high-performance electrical applications, where reliability, durability, and efficiency are crucial.
Key Features
- Seamless Electro-Tin Plated Copper: Ensures a durable and corrosion-resistant construction.
- Long Barrel Design: Provides versatility for applications requiring extended barrel length.
- 2-Hole Configuration: Allows secure and stable connections for 2/0 AWG conductors.
- 1/2 Inch Bolt Size: Accommodates various stud sizes for flexibility in installation.
- 35 kV Voltage Rating: Suitable for applications requiring higher voltage capabilities.
- Black Color: Facilitates easy identification in electrical installations.
- No Sight Window: Designed without a sight window for a clean and streamlined appearance.
Technical Specifications
| Wire Size | 2/0 AWG |
|---|---|
| Stud Size | 1/2" |
| Color | Black |
| Overall Length (L) | 90.9mm (3.58") |
| Neck Length (L1) | 54.1mm (2.13") |
| Neck Length (L2) | 44.5mm (1.75") |
| Outer Diameter (D) | 20.8mm (0.82") |
| Inner Diameter (D1) | 14.2mm (0.56") |
| Hole Diameter (D2) | 11.7mm (0.46") |
| Width (B) | 30.5mm (1.20") |
| Hole Spacing (E) | 13.0mm (0.51") |
| Thickness (F) | 2.5mm (0.10") |
| Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 265A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
