Copper Long Barrel Two Hole Compression Lugs 8 AWG 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-981101
195 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

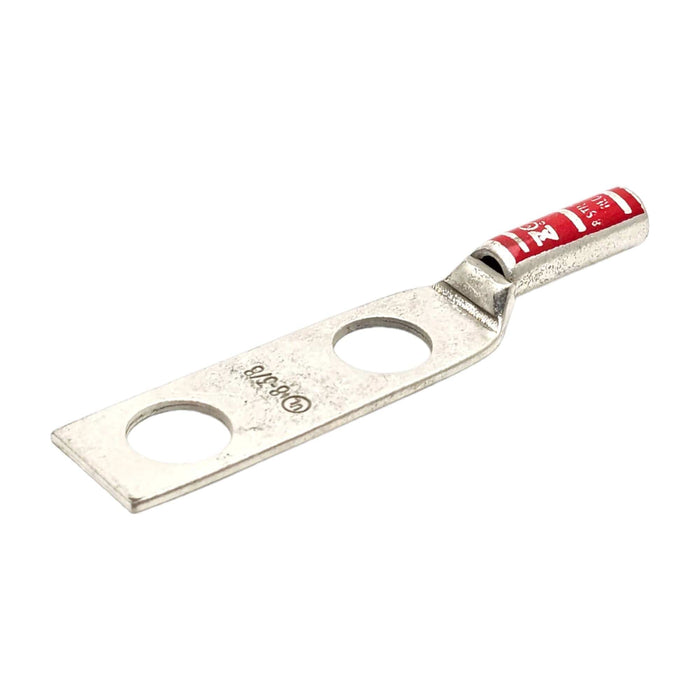

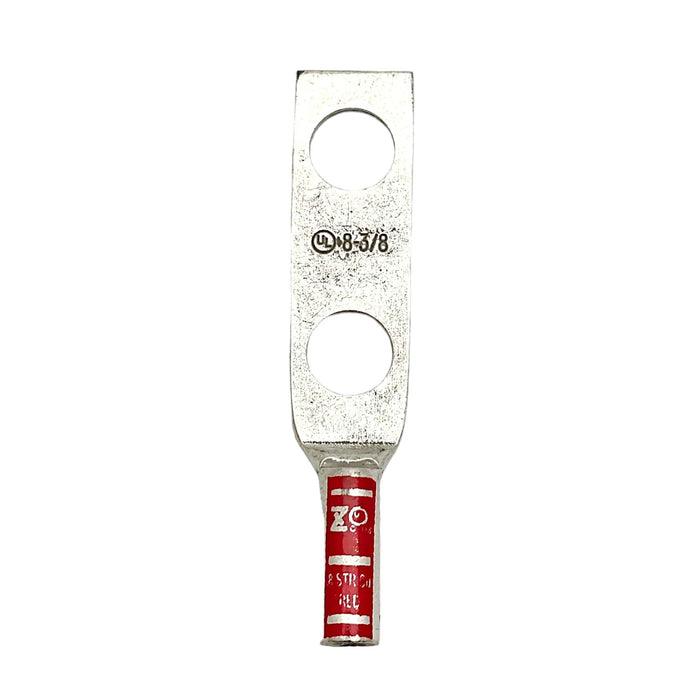

The Conversions Tech 2-Hole Copper Compression Lug is a durable connector designed for secure and efficient electrical connections with 8 AWG conductors. Featuring a long barrel, 3/8-inch bolt size, and 1-inch hole spacing, this tin-plated lug ensures reliable performance. The distinctive red color code allows for easy identification, making it a perfect choice for high-performance electrical applications.
Key Features
- Durable Copper Construction: Provides excellent conductivity and reliable electrical connections for 8 AWG conductors.
- 3/8-Inch Bolt Size: Features a 3/8-inch bolt size, ensuring secure attachment to terminals or busbars for stable connections.
- Long Barrel Design: Enhances crimping, providing a strong, stable connection that resists vibration and loosening over time.
- 1-Inch Hole Spacing: Ideal for a variety of applications, allowing flexibility in installation with secure and precise connections.
- Tin-Plated Finish: Offers superior corrosion resistance and enhances conductivity, ensuring long-lasting performance in demanding environments.
- Red Color Code: Facilitates easy identification, simplifying the organization and speeding up installations for efficient electrical work.
- High-Performance Reliability: Perfect for high-performance electrical applications, ensuring secure, efficient, and dependable connections.

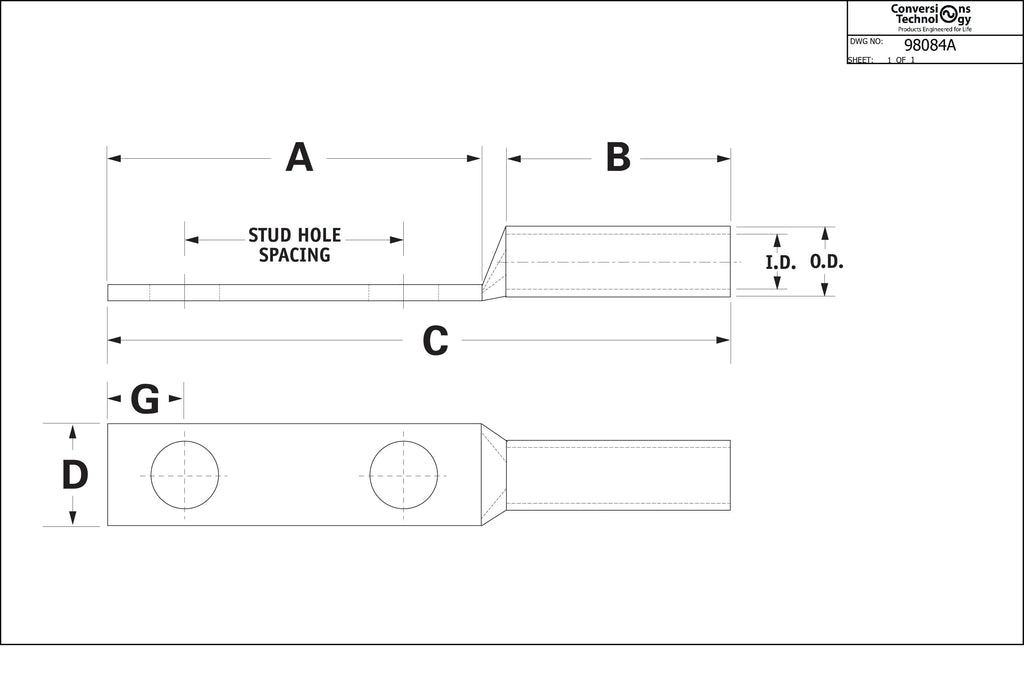

Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
| Color | Red |
| Overall Length | 2.944 Inches |
| Barrel Length | 0.812 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 8 AWG |
| Stud Size | 1/2 Inch |
| Die Index | I-21 |
| Pad Size | 1.937 Inches (L) x 0.593 Inch (W) x 0.093 Inch (Thk) |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Barrel Type | Long Barrel with Chamfered Entry |
| Insulation ID/OD | 0.179 Inch ID x 0.272 Inch OD |
| Temperature Rating | 90°C |
