Two-Hole Long Barrel Compression Lug 8 AWG #10 Bolt | 35kV 90°C
Shipping calculated at checkout
SKU: 210-98084
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

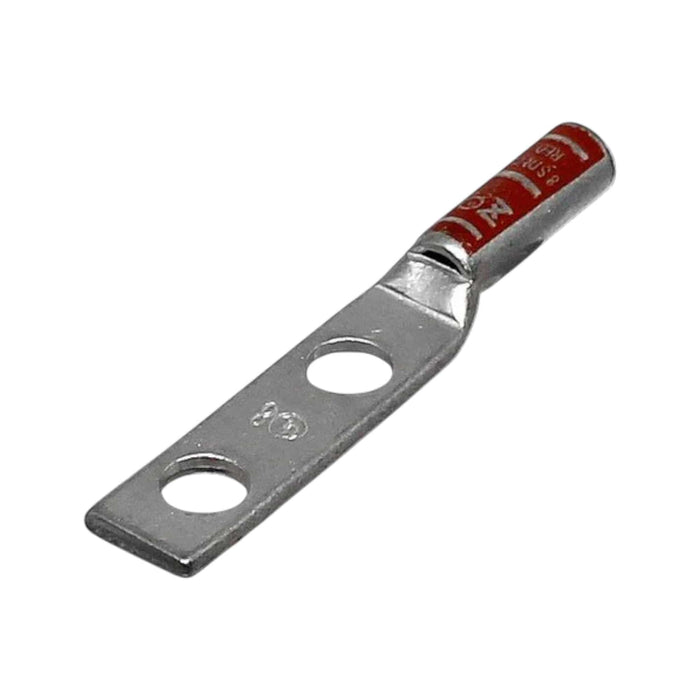

Two-hole long barrel compression lug for terminating 8 AWG copper conductors in industrial and utility electrical systems. Engineered for secure two-bolt mounting with #10 hardware and 5/8-inch hole spacing. The long barrel design provides extended contact surface for high-reliability compression terminations in switchgear, transformers, panelboards, and power distribution equipment. Tin-plated copper construction resists oxidation in standard indoor and outdoor electrical environments.
Specifications
- Conductor Size: 8 AWG copper
- Stud/Bolt Size: #10
- Pad Holes: 2
- Pad Hole Spacing: 5/8 inch
- Material: Seamless electro-tin plated copper
- Barrel Type: Long barrel with chamfered entry
- Barrel Length: 0.812 inches
- Overall Length: 2.444 inches
- Pad Size: 1.437" L x 0.486" W x 0.093" thick
- Insulation ID/OD: 0.179" ID x 0.272" OD
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-21
- Color Code: Red
Cross-Reference
Equivalent form factor to Burndy YAV-L, Panduit LCBX, and Ilsco CCL-2 two-hole long barrel compression lugs. Matches standard 8 AWG two-hole lug dimensions for direct substitution in existing installations. Verify die index I-21 compatibility with your compression tool specification.
FAQ
What compression die do I need for this lug?
Die index I-21. Confirm your hydraulic or mechanical compression tool manufacturer supports this die code for 8 AWG copper long barrel terminations.
Is this lug rated for 90°C conductor ampacity?
Yes. The 90°C temperature rating permits full ampacity per NEC Table 310.16 for 8 AWG copper conductors when installed per code.
Can I use this with fine-stranded cable?
The chamfered barrel entry accommodates standard Class B stranded copper. For fine-stranded (Class C, D, or K) flexible conductors, verify fit with sample termination or consult factory.
