Two Hole Compression Lug Long Barrel 1/0 AWG 1/4" Stud | 35kV 90°C
Shipping calculated at checkout
SKU: 210-98094
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

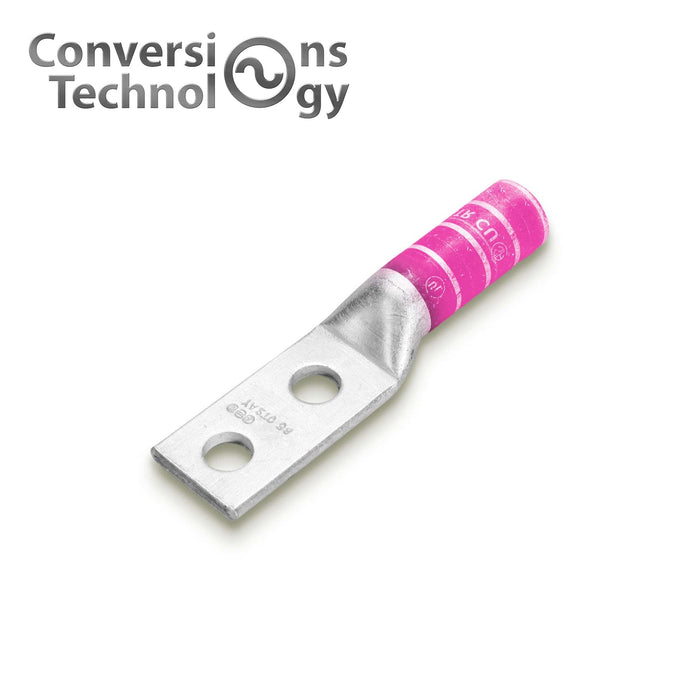

Two hole long barrel compression lug for terminating 1/0 AWG copper conductors to panels, switchgear, and busbar applications. The extended barrel length provides increased contact surface for compression tools, while dual mounting holes distribute mechanical load across the connection point. Designed for industrial and commercial electrical systems requiring secure, low-resistance terminations.
Specifications
- Material: Seamless Electro-Tin Plated Copper
- Color: Pink
- Overall Length: 3.543 inches
- Barrel Length: 1.5 inches
- Conductor Material: Copper
- Voltage Rating: 35 kV
- Conductor Size: 1/0 AWG
- Stud Size: 1/4 inch
- Die Index: I-42
- Pad Size: 1.687 inches (L) x 0.738 inch (W) x 0.125 inch (Thk)
- Pad Hole(s): 2
- Pad Hole Spacing: 7/8 inch
- Barrel Type: Long
- ID x OD: 0.39 inch x 0.515 inch
- Barrel Entry Type: Chamfered Entry
- Temperature Rating: 90°C
Cross-Reference
Equivalent form factor to Panduit LCCX series and Burndy YAV-L two-hole long barrel compression lugs. Conversions Tech spec-first engineering delivers comparable electrical performance with die index compatibility.
FAQ
What crimping tool and die set is required for installation?
Use a compression tool with die index I-42. The chamfered barrel entry assists conductor insertion; verify full barrel compression with no gaps visible after crimp cycle.
Is this lug suitable for 35 kV medium voltage applications?
Yes. The 35 kV voltage rating and 90°C temperature rating support medium voltage terminations when installed per applicable codes and manufacturer installation guidelines.
Can this lug be used with aluminum conductors?
No. This lug is specified for copper conductors only. The 1/0 AWG conductor size and 0.39 inch inner barrel diameter match copper stranding; aluminum conductors require different lug specifications.
