Long Barrel Two Hole Compression Lug 250 MCM 3/8" | 600V-35kV, 90°C, UL
Shipping calculated at checkout
SKU: 210-98104
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

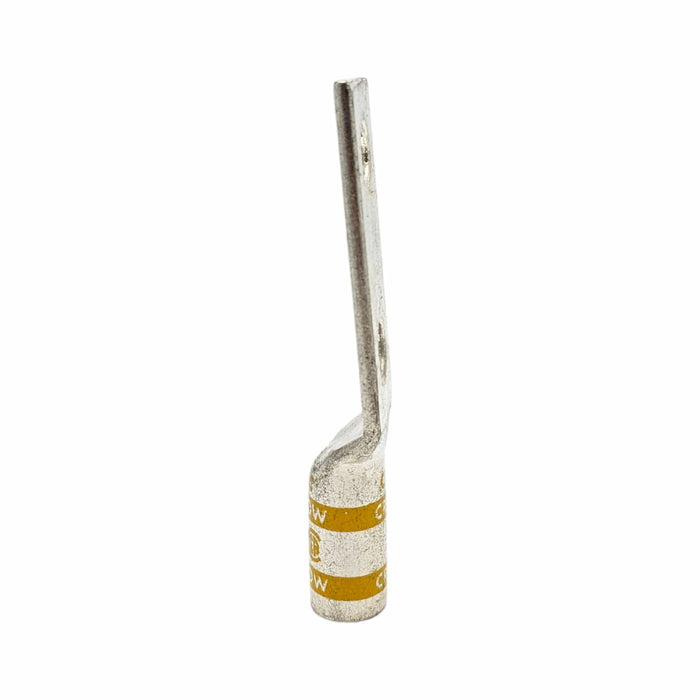

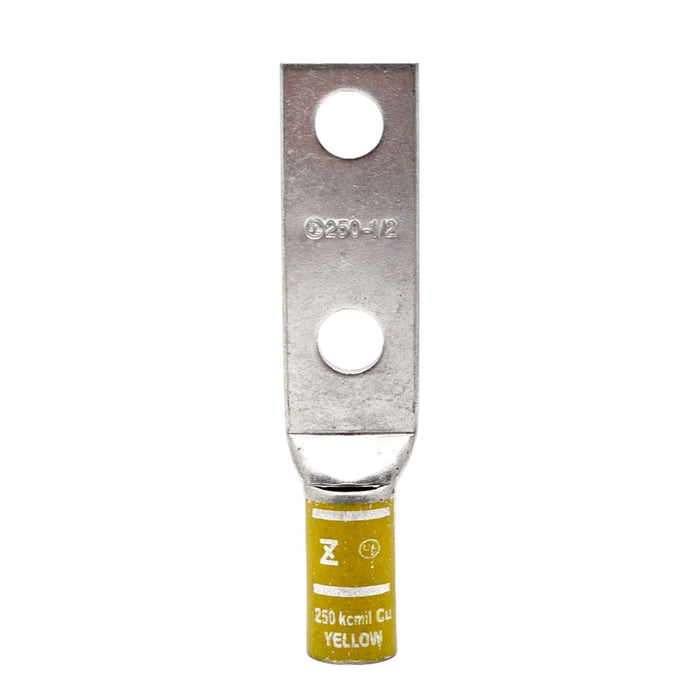

Conversions Tech long barrel two-hole compression lug terminates 250 MCM copper conductors to dual-terminal connection points. The extended barrel length increases contact surface area and mechanical stability for high-current industrial and commercial applications including switchgear, transformers, motor control centers, and power distribution blocks.
Specifications
- Conductor Size: 250 MCM
- Stud/Bolt Size: 3/8 inch
- Pad Holes: 2
- Pad Hole Spacing: 1.75 inches
- Pad Dimensions: 3" L × 1.088" W × 0.157" T
- Overall Length: 5.219 inches
- Barrel Length: 1.688 inches
- Wire Strip Length: 1.75 inches
- Material: Electro tin plated high strength seamless copper
- Color: Yellow
- Voltage Rating: 600 Volt to 35 Kilovolt
- Temperature Rating: 90°C
- Die Index: I-62
- UL: Listed
Cross-Reference
Equivalent to long barrel two-hole compression lug form factors from major manufacturers including Burndy, Ilsco, and Panduit specifications for 250 MCM dual-terminal applications.
FAQ
What crimping tool and die do I need for this lug?
Use a compression tool with die index I-62. Verify tool compatibility with your specific crimper manufacturer before installation.
Is this lug rated for medium voltage applications?
Yes. The lug is rated 600V to 35kV, suitable for both low and medium voltage terminations per the UL listing.
Why choose a long barrel over a standard barrel lug?
The 1.688-inch barrel length provides greater surface contact with the conductor, improving current distribution and mechanical pull-out strength in high-vibration or high-stress environments.
