Long Barrel Two-Hole Compression Lug 350 MCM | 1/2" Bolt, 35 kV, 90°C
Shipping calculated at checkout
SKU: 210-98106
Only 2 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

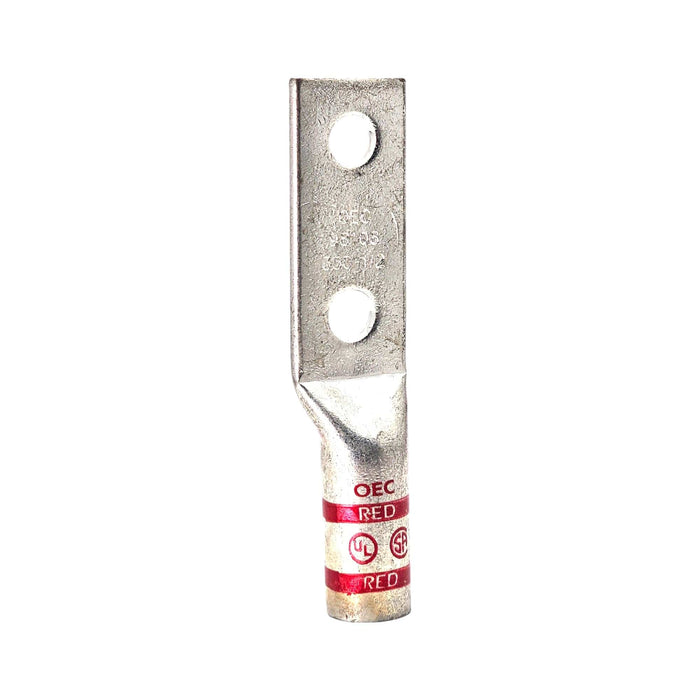

Long barrel two-hole compression lug engineered for 350 MCM copper conductors. Designed for high-voltage applications including substations, switchgear terminations, and renewable energy systems. The long barrel configuration maximizes contact surface area for reliable current transfer, while the dual-hole pad provides redundant mechanical fastening. Red color code enables rapid conductor size identification in the field.
Specifications
- Conductor Size: 350 MCM
- Conductor Material: Copper
- Stud Size: 1/2 inch
- Pad Holes: 2
- Pad Hole Spacing: 1-3/4 inches
- Pad Size: 3 inches L x 1.291 inches W x 0.187 inches Thk
- Barrel Type: Long Barrel, Chamfered Entry
- Barrel Length: 2 inches
- ID x OD: 0.703 inches x 0.89 inches
- Overall Length: 5.623 inches
- Material: Electro Tin Plated High Strength Seamless Copper
- Color: Red
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-71
Cross-Reference
Equivalent to long barrel two-hole compression lugs from major manufacturers. Spec-built to industry-standard dimensions for direct interchangeability with Burndy, Panduit, and Ilsco 350 MCM two-hole lug configurations.
FAQ
What crimping tool and die are required for installation?
Use a compression tool with Die Index I-71. The chamfered barrel entry assists conductor insertion; verify full insertion through the sight hole before crimping.
Is this lug rated for 90°C conductor applications?
Yes. The 90°C temperature rating matches standard THHN/THWN-2 and XHHW-2 insulation ratings for 350 MCM copper conductors.
Can this lug be used in 35 kV medium-voltage terminations?
The 35 kV voltage rating applies to the lug itself. Actual system voltage capability depends on complete termination design, insulation, and clearances per NEC and utility standards.
