Long Barrel Compression Connector 300 kcmil Copper | 35kV, Center Wire Stop
Shipping calculated at checkout
SKU: 210-98137
Only 19 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

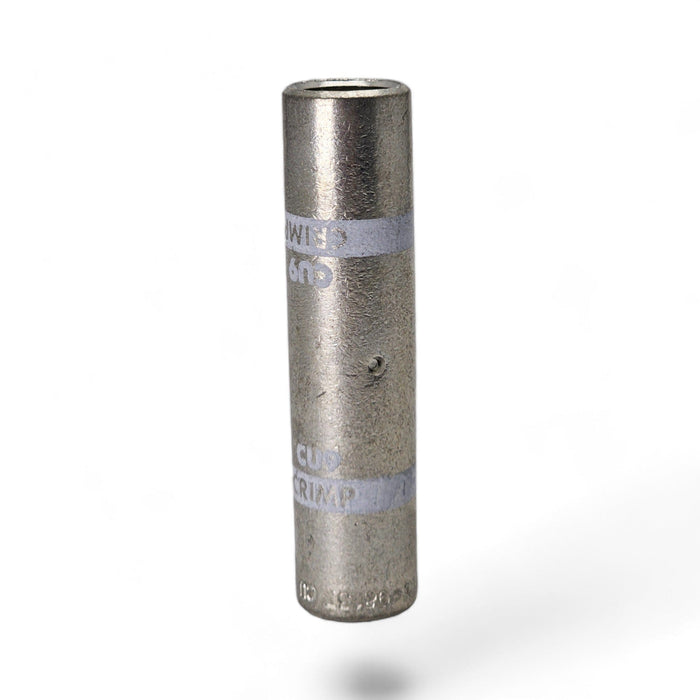

Long barrel compression connector for 300 kcmil copper conductors. Center wire stop design with chamfered barrel end for wire insertion. Used in power distribution, industrial machinery, renewable energy systems, electrical cabinets, commercial buildings, telecommunications infrastructure, data centers, and grounding/bonding applications.
Specifications
- Type: Center Wire Stop
- Conductor Size: 300 kcmil
- Length: 4.125 inches
- Inner Diameter: 0.66 inch
- Outer Diameter: 0.812 inch
- Body Material: Electro-Tin Plated High Strength Seamless Copper
- Conductor Material: Copper
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Color Code: White
- Barrel Type: Long with Chamfered End
- Application: Grounding and Bonding
Cross-Reference
Equivalent to long barrel compression lugs from major manufacturers. Form factor matches industry-standard 300 kcmil copper compression connectors used in utility and industrial grounding applications.
FAQ
What crimping tool is required for this connector?
Use a compression tool with dies rated for 300 kcmil copper connectors. Verify die compatibility with the connector's barrel dimensions: 0.812 inch outer diameter, 0.66 inch inner diameter.
Does the center wire stop affect conductor insertion depth?
The center wire stop positions the conductor at the correct depth for full barrel contact. Insert conductor until it seats firmly against the stop.
