Two-Hole Compression Lug 6 AWG #10 Bolt | 35 kV, 90°C Tin-Plated Copper
Shipping calculated at checkout
SKU: 210-98045A
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

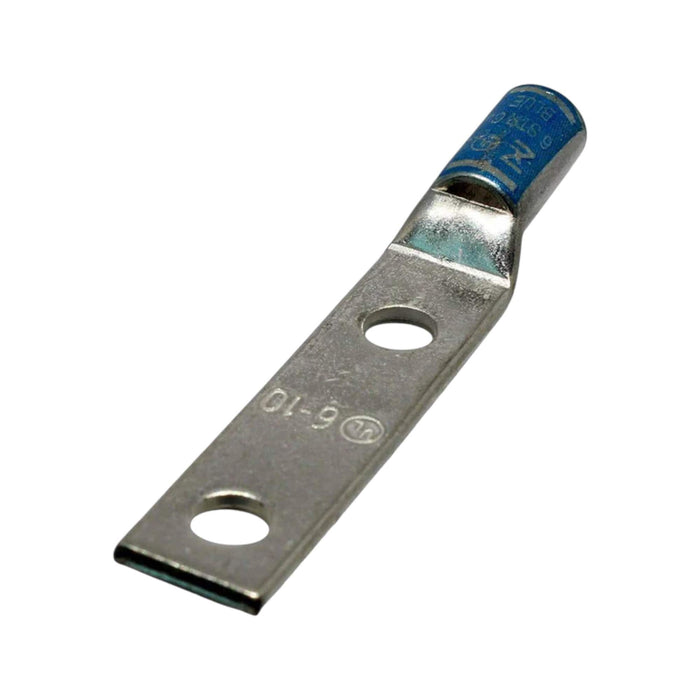

The Conversions Tech two-hole compression lug is a tin-plated copper termination fitting engineered for medium-gauge power distribution and industrial control applications. Designed for 6 AWG copper conductors, this short-barrel lug provides dual #10 bolt mounting points for mechanical redundancy in high-vibration environments. The integrated sight window enables visual verification of full conductor insertion prior to crimping, while the chamfered cable entry facilitates wire feeding in tight junction boxes and panel terminations. Blue color-coding aligns with industry-standard identification systems for 6 AWG applications.
Specifications
- Material: Seamless Electro-Tin Plated Copper
- Conductor Size: 6 AWG
- Stud/Bolt Size: #10
- Number of Pad Holes: 2
- Pad Hole Spacing: 5/8 Inch
- Barrel Type: Standard (Short Barrel)
- Barrel Length: 0.5 Inch
- Inner Diameter: 0.203 Inch
- Outer Diameter: 0.295 Inch
- Overall Length: 2.132 Inch
- Pad Dimensions: 1.437 Inch Length x 0.44 Inch Width x 0.087 Inch Thickness
- Cable Entry: Chamfered
- Sight Window: Integrated
- Color Code: Blue
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-24
Cross-Reference
Equivalent to Burndy YAV, Panduit LCBX, and Ilsco OSLB two-hole compression lug form factors for 6 AWG/#10 bolt applications. Conversions Tech lugs are engineered to US specifications and produced through certified partner factories to deliver compatible dimensional and electrical performance at reduced procurement cost.
FAQ
What crimping tool and die are required for this lug?
Use a compression tool with die index I-24. This industry-standard die specification ensures proper circumferential crimping on the 0.5-inch standard barrel. Verify tool compatibility with your crimping equipment manufacturer.
Is this lug rated for 90°C conductor ampacity?
Yes. The 90°C temperature rating permits full ampacity utilization of 6 AWG copper conductors per NEC ampacity tables, provided the complete termination assembly—including the equipment terminal—is similarly rated.
Why two holes instead of one?
Dual #10 bolt holes spaced at 5/8 inch provide mechanical redundancy and distribute termination stress across two points. This configuration resists loosening under thermal cycling and vibration, commonly specified for transformer secondary terminations, motor leads, and bus bar connections.
