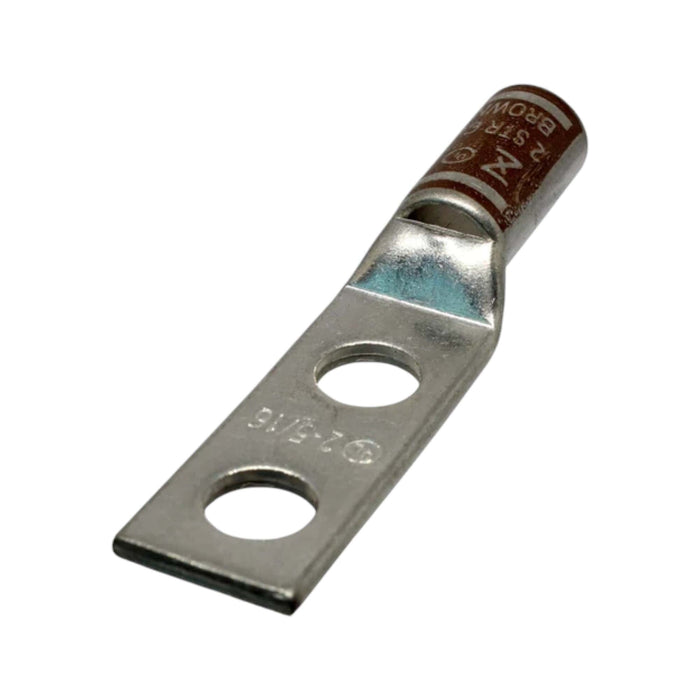

Short Barrel Two-Hole Copper Compression Lug 2 AWG 5/16" Stud | 35kV
Shipping calculated at checkout
SKU: 210-09925
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Short barrel two-hole compression lug for 2 AWG copper conductors. Features a 5/16-inch stud size with 3/4-inch hole spacing for dual-bolt mounting. Used in power distribution, grounding, and industrial panel applications where reliable termination of medium-gauge conductors is required. The integrated sight window allows visual confirmation of proper conductor insertion before crimping.
Specifications
- Material: Seamless electro-tin plated copper
- Conductor size: 2 AWG
- Stud size: 5/16 inch
- Pad holes: 2
- Pad hole spacing: 3/4 inch
- Pad dimensions: 1.687" L x 0.599" W x 0.109" thick
- Barrel type: Standard
- Barrel length: 0.625 inch
- Inner diameter: 0.312 inch
- Outer diameter: 0.421 inch
- Overall length: 2.598 inches
- Cable entry: Chamfered type
- Die index: I-33
- Voltage rating: 35 kV
- Color code: Brown
Cross-Reference
Equivalent to standard two-hole compression lug form factors from major manufacturers. Designed to match dimensional and electrical specifications of industry-standard 2 AWG lugs at lower cost.
FAQ
What crimping tool die should I use with this lug?
Use die index I-33. This specification ensures proper compression force and barrel deformation for a reliable electrical connection on 2 AWG copper conductors.
Why does this lug have two holes instead of one?
Two-hole mounting provides mechanical stability and redundancy for high-vibration environments or applications requiring higher pull-out strength. The 3/4-inch spacing fits standard busbar and equipment mounting patterns.
Is the brown color code standardized?
Yes. Brown color coding indicates 2 AWG compatibility per industry standard color-coding systems, allowing quick field identification without measuring conductor size.
