Two-Hole Compression Lug 3/0 AWG 1/2" Stud | 35kV 90°C Tin-Plated Copper
Shipping calculated at checkout
SKU: 210-09943
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

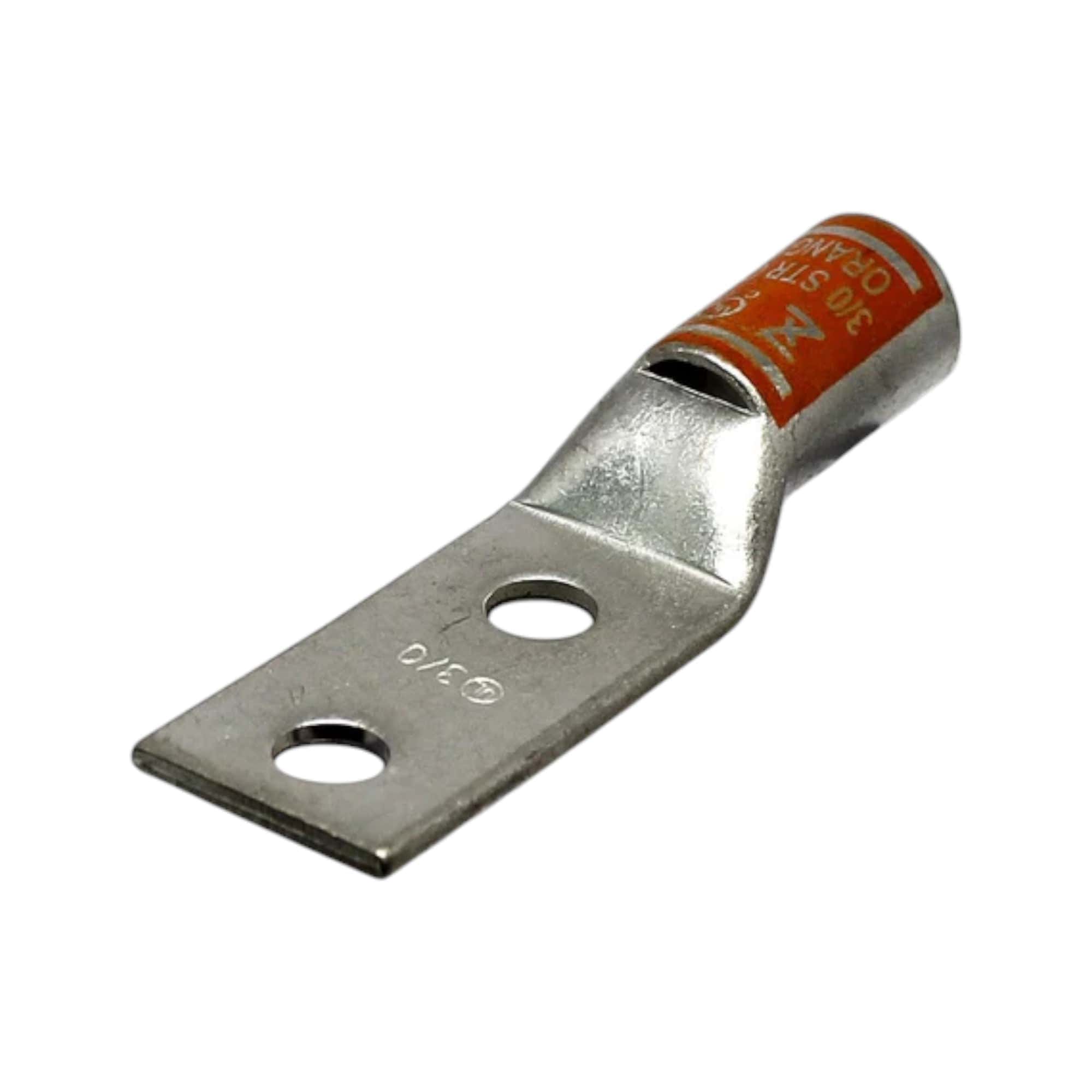

The Conversions Tech two-hole compression lug is a tin-plated copper termination for 3/0 AWG copper conductors. Designed for medium-voltage power distribution, transformer terminations, and industrial panel connections, this lug features a standard barrel with chamfered entry and integrated sight window for visual crimp verification. The two-hole pad pattern provides mechanical stability on bus bars and equipment terminals.
Specifications
- Material: Seamless electro-tin plated copper
- Conductor size: 3/0 AWG
- Stud size: 1/2 inch
- Pad holes: 2
- Pad hole spacing: 1-3/4 inches
- Pad dimensions: 3 inches length x 0.885 inch width x 0.125 inch thickness
- Barrel type: Standard
- Barrel length: 0.75 inch
- ID x OD: 0.484 inch inner diameter x 0.609 inch outer diameter
- Barrel entry: Chamfered
- Overall length: 4.189 inches
- Voltage rating: 35 kV
- Temperature rating: 90°C
- Die index: I-50
- Color code: Orange
- Sight window: Integrated
Cross-Reference
Equivalent to two-hole compression lug form factors from major manufacturers including Panduit, Burndy, and Ilsco. Conversions Tech lugs are engineered to US specifications and manufactured by certified partner factories to deliver compatible fit and electrical performance at reduced cost.
FAQ
What crimping tool and die should I use with this lug?
Use a compression tool with die index I-50. The integrated sight window allows visual confirmation of full die closure during crimping.
Is this lug rated for medium-voltage applications?
Yes. The 35 kV voltage rating and 90°C temperature rating support medium-voltage power distribution and industrial equipment terminations.
Why does this lug have two holes instead of one?
The two-hole pad pattern distributes mechanical stress and prevents lug rotation under vibration or thermal cycling. The 1-3/4 inch hole spacing matches standard bus bar drilling patterns.
