Two-Hole Compression Lug 600 MCM 3/8" Bolt | 35kV, 90°C, Tin-Plated Copper
Shipping calculated at checkout
SKU: 210-98061
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

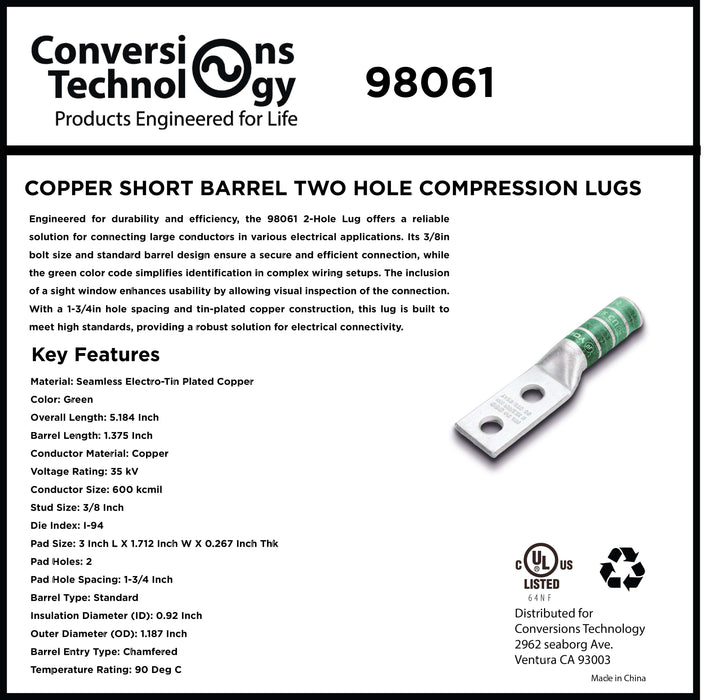

The two-hole compression lug is a copper termination device engineered for high-current electrical connections in industrial power distribution, switchgear, and transformer applications. Designed for 600 MCM copper conductors with a 3/8-inch bolt interface, this lug provides mechanical and electrical integrity through compression crimping. The tin-plated finish resists oxidation, while the sight window enables visual verification of full conductor insertion prior to crimping. Green color coding identifies the 600 MCM size class for inventory and field identification.
Specifications
- Conductor size: 600 MCM
- Stud size: 3/8 inch
- Material: seamless electro-tin plated copper
- Color code: green

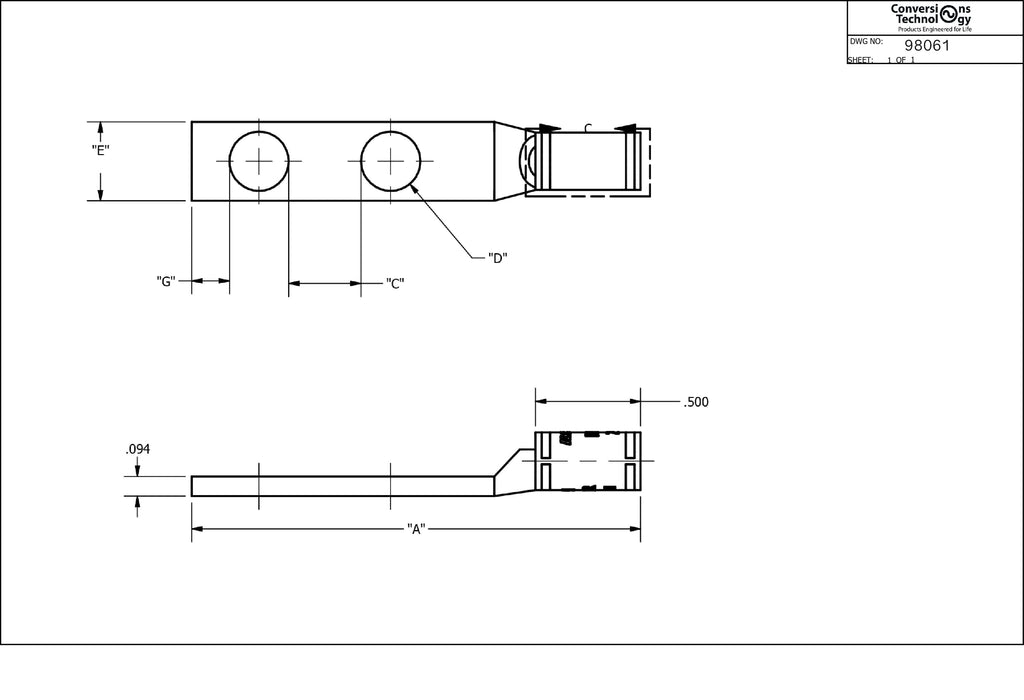

- Overall length: 5.184 inches
- Barrel length: 1.375 inches
- Barrel type: standard
- Barrel entry type: chamfered
- Insulation diameter (ID): 0.92 inch
- Outer diameter (OD): 1.187 inch
- Pad size: 3 inch L x 1.712 inch W x 0.267 inch thick
- Pad holes: 2
- Pad hole spacing: 1-3/4 inch
- Voltage rating: 35 kV
- Temperature rating: 90°C
- Die index: I-94
Cross-Reference
Equivalent to two-hole compression lug form factors from major manufacturers including Burndy, Panduit, and Ilsco. Conforms to dimensional and electrical performance standards for 600 MCM class lugs at lower total cost of ownership.
FAQ
What crimping tool and die are required for installation?
Use a compression tool with die index I-94. Verify the die code matches the barrel specification stamped on the lug. The sight window confirms full conductor insertion before crimping.
Is this lug rated for 600V or medium voltage applications?
The 35 kV voltage rating supports medium voltage terminations. Confirm application requirements against local codes and system voltage levels. The 90°C temperature rating accommodates standard conductor ampacities.
Why does the pad have two holes with 1-3/4 inch spacing?
The two-hole pad design distributes mechanical load and provides redundant electrical contact. The 1-3/4 inch hole spacing matches standard busbar drilling patterns for 3/8-inch hardware. Verify busbar hole spacing before specifying.
