Short Barrel Two-Hole Compression Lug 750 MCM 1/2" Stud | 35 kV, Die I-106
Shipping calculated at checkout
SKU: 210-98063
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Short barrel two-hole compression lug for 750 MCM copper conductor. Engineered for power distribution systems, transformer terminations, and switchgear connections where dual-bolt mounting provides mechanical redundancy. The short barrel profile suits applications with space constraints while maintaining full current-carrying capacity. Chamfered cable entry eases conductor insertion. Electro-tin plating inhibits oxidation in industrial and commercial environments.

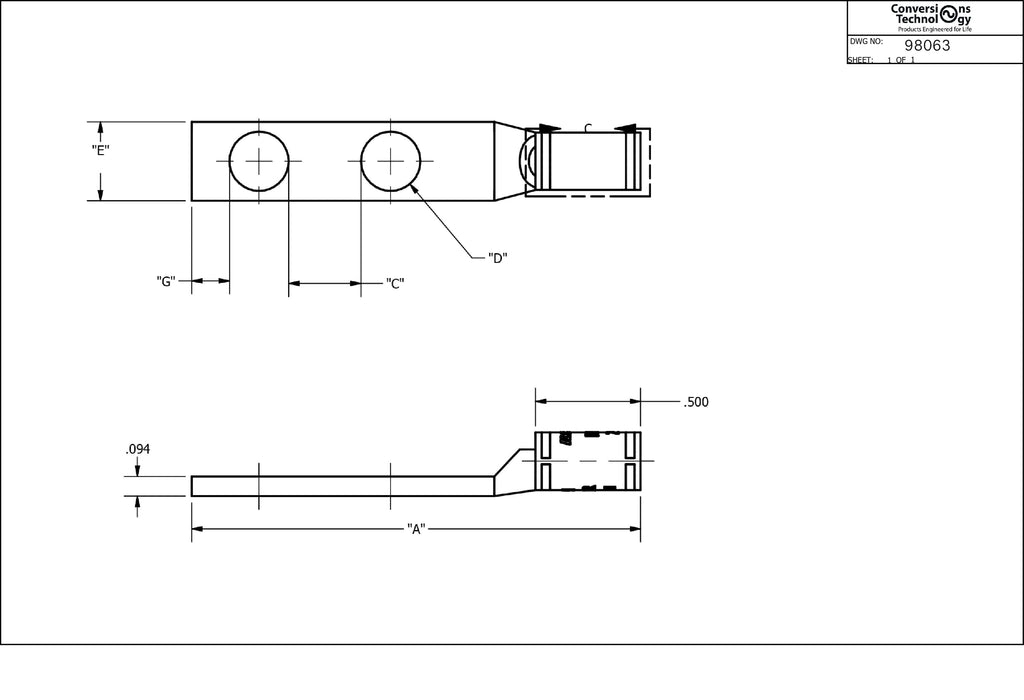

Specifications
- Conductor Size: 750 MCM
- Material: Seamless Electro-Tin Plated Copper
- Stud Size: 1/2 Inch
- Pad Holes: 2
- Pad Hole Spacing: 1-3/4 Inch
- Pad Size: 3 Inch L x 1.901 Inch W x 0.282 Inch Thk
- Barrel Length: 1.5 Inches
- Overall Length: 5.402 Inches
- Inner Diameter: 1.031 Inches
- Outer Diameter: 1.313 Inches
- Cable Entry Type: Chamfered
- Voltage Rating: 35 kV
- Die Index: I-106
- Color: Black
Cross-Reference
Equivalent to Burndy YAV-L, Panduit LCCX, and Ilsco CCL-2 form factors for 750 MCM two-hole compression lugs. Conversions Tech specification-engineered in the US and built to certified partner factory standards.
FAQ
What crimping tool and die set is required?
Use die index I-106. Verify tool compatibility with your hydraulic or battery-powered crimping system before installation.
Is this lug suitable for transformer secondary connections?
Yes. The 35 kV rating and two-hole pad design suit transformer terminations, switchgear, and bus bar connections requiring dual-bolt mounting for mechanical stability.
Does the short barrel affect current capacity?
No. The barrel is sized for full 750 MCM conductor capacity. The shorter profile reduces overall length for tight spaces while maintaining electrical performance per UL 486B compression lug standards.
