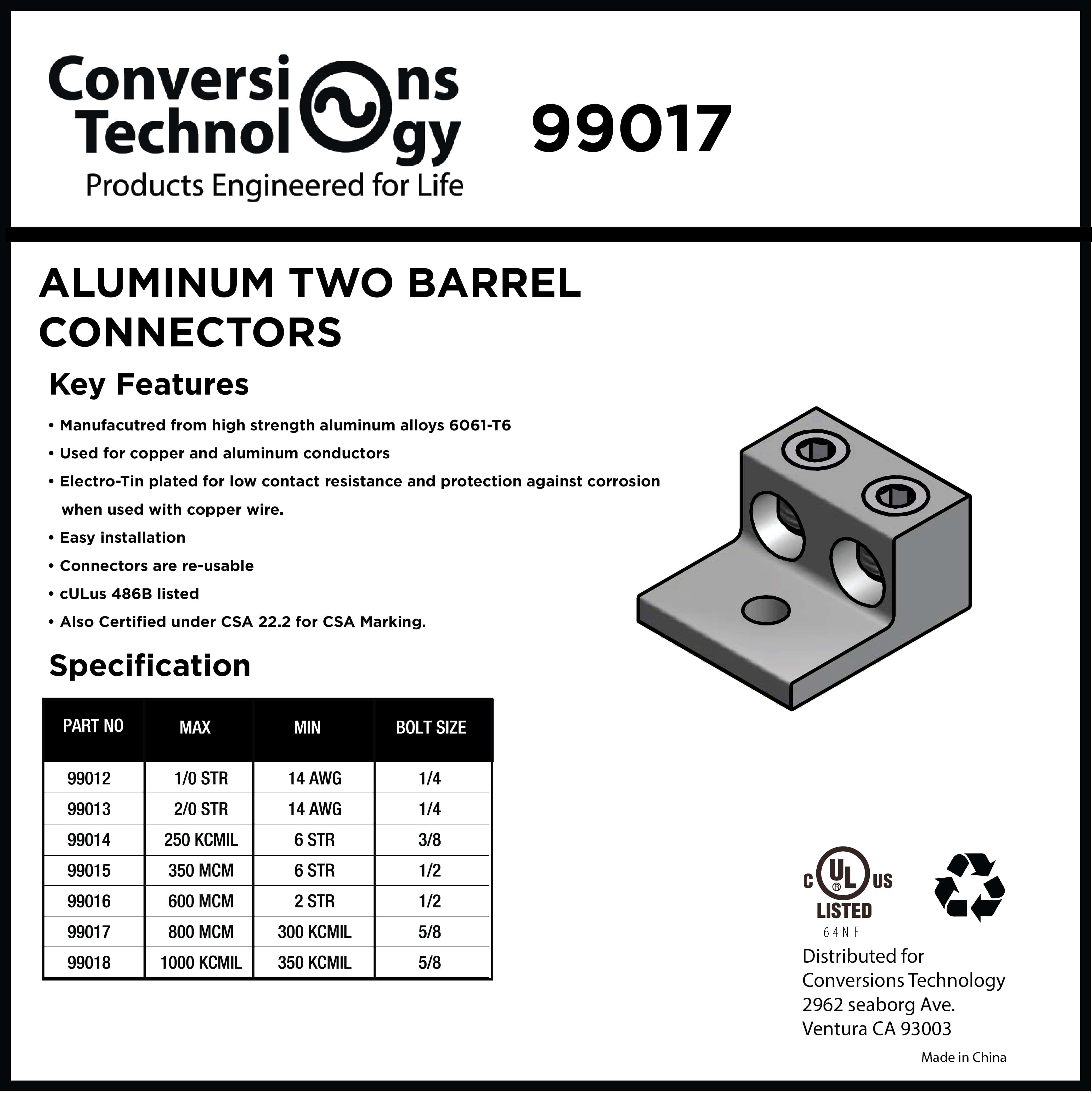

Aluminum Two Barrel Connectors 300 kcmil min. to 800 kcmil max. 5/8 Inch Stud Size

ALUMINUM TWO BARREL CONNECTORS

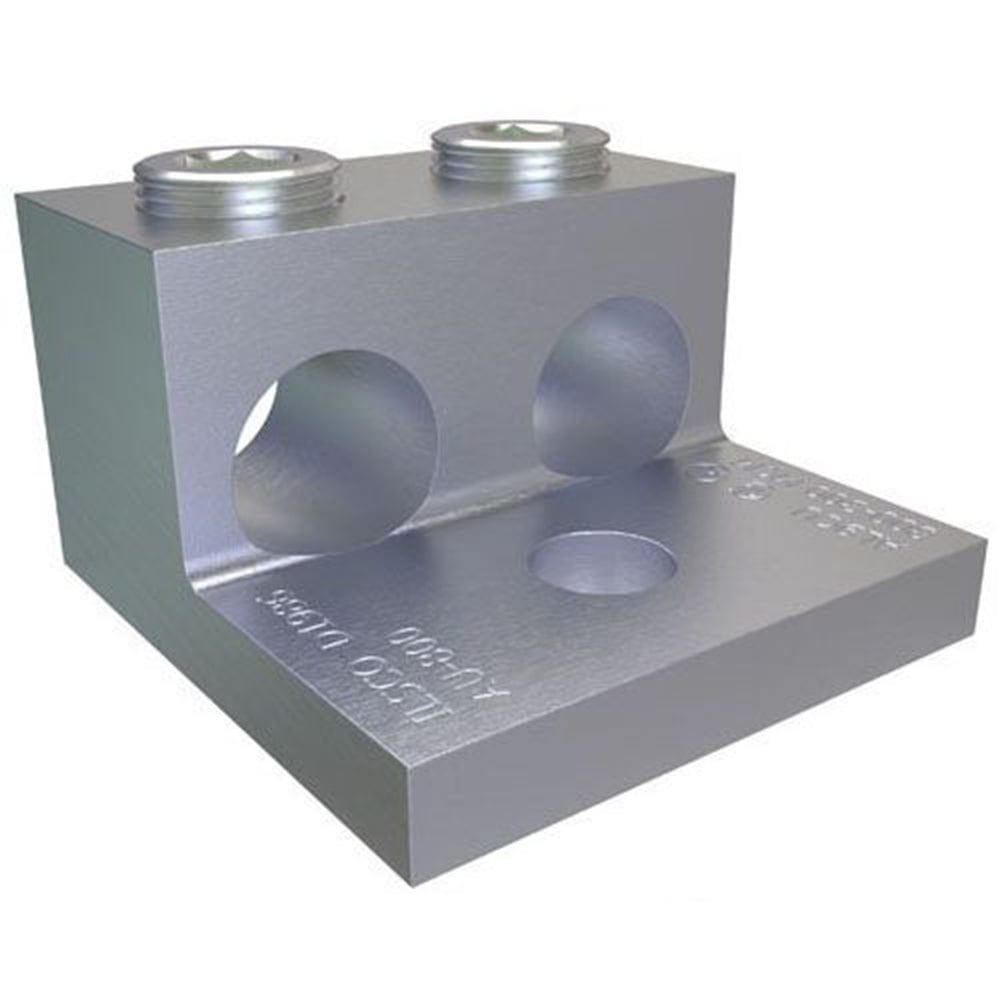

The 99017 2-Conductor Lug is a robust mechanical connector designed for securely joining two aluminum conductors with a maximum size of 800 kcmil. Its durable construction and efficient design ensure a reliable and stable electrical connection in demanding industrial and commercial applications requiring large conductor sizes.

Product Overview

The 99017 ALCU 2-Conductor Lug is engineered as a high-capacity mechanical connector for securely joining two aluminum conductors, accommodating sizes up to 800 kcmil. With its durable construction, including electro-tin plated aluminum alloy material, this lug ensures longevity and corrosion resistance in demanding environments. Featuring chamfered wire entry and a versatile 2-conductor design, the lug simplifies installation and provides flexibility in various applications, such as heavy-duty industrial machinery and power distribution systems.

Specifications

• Wire Entry Type: Chamfered for precise and easy conductor insertion.
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy for enhanced durability.
• Overall Length: 3-3/8 Inch, providing ample length for secure connections.
• Conductor Size Range: Accommodates 300 kcmil minimum to 800 kcmil maximum, offering versatility for various conductor sizes.
• Conductor Material: Compatible with both Aluminum and Copper conductors, providing flexibility in applications..
• Conductor Quantity: 2, allowing the connection of two conductors.
• Stud Size: 5/8 Inch, facilitating compatibility with common electrical components.

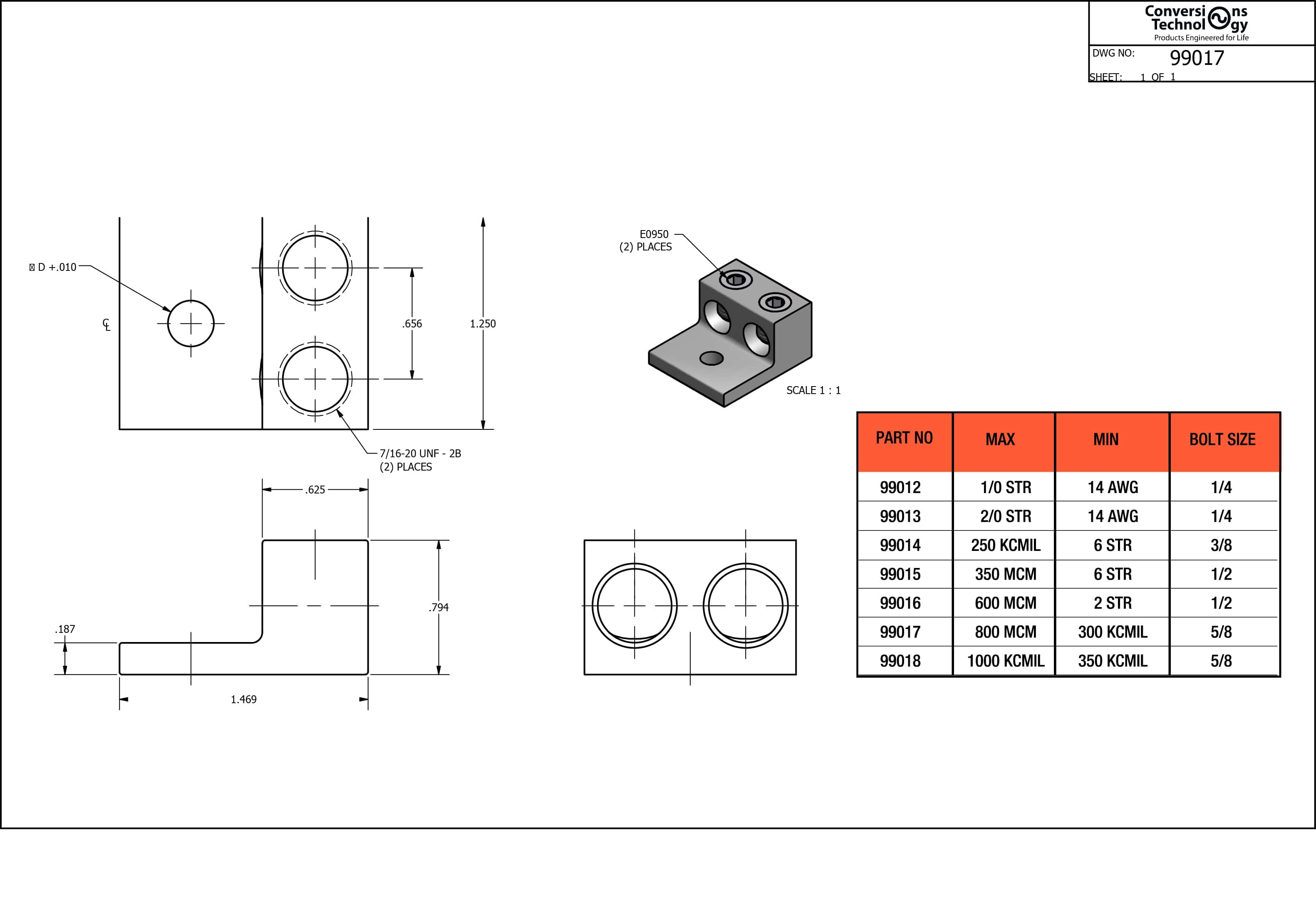

• Pad Size: 1-3/4 Inch Length X 3-3/16 Inch Width X 1/2 Inch Thickness, providing a stable connection point.
• Pad Holes: 1, accommodating a single conductor per lug.
• Pad Type: Straight for stability and ease of installation.
• Screw Type: 1/2 Inch Hex Screw, enabling easy tightening and adjustment during installation.
• Size: 1-15/16 Inch Height, contributing to the lug's overall design.
• Temperature Rating: 90 Deg C, ensuring stability in a range of operating conditions.

Uses and Cases

• Heavy Industrial Equipment: Ideal for securely connecting large aluminum conductors in heavy-duty industrial machinery, ensuring efficient power transmission.
• Power Distribution Systems: Suited for use in power distribution panels where larger conductor sizes, up to 800 kcmil, are necessary for robust and secure electrical connections.
• Utility Pole Installations: Appropriate for utility pole applications, contributing to stable and durable connections for aluminum conductors in overhead power lines.
• Renewable Energy Systems: Used in solar or wind power systems where aluminum conductors of varying sizes need to be securely connected for efficient energy transfer.
• Large-Scale Construction Projects: Designed for heavy-duty electrical wiring applications in construction or infrastructure projects where reliable and robust connections are essential.

Item Features

• High Capacity: Designed for large conductor sizes, accommodating a range from 300 kcmil minimum to 800 kcmil maximum.
• Durable Construction: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy material for enhanced durability and corrosion resistance.
• Versatile Compatibility: Suitable for both Aluminum and Copper conductors, providing flexibility for various applications.
• Stud Size: 5/8 Inch, facilitating compatibility with common electrical components.
• Efficient Design: Chamfered wire entry and a 2-conductor configuration streamline installation.
• Secure Connection: 1/2 Inch Hex Screw type allows for easy tightening, ensuring a stable and reliable connection.
