Arrester Terminal — IGC207LA (Type LAT, Low-Profile)
Shipping calculated at checkout
SKU: IGC207LA
In stock

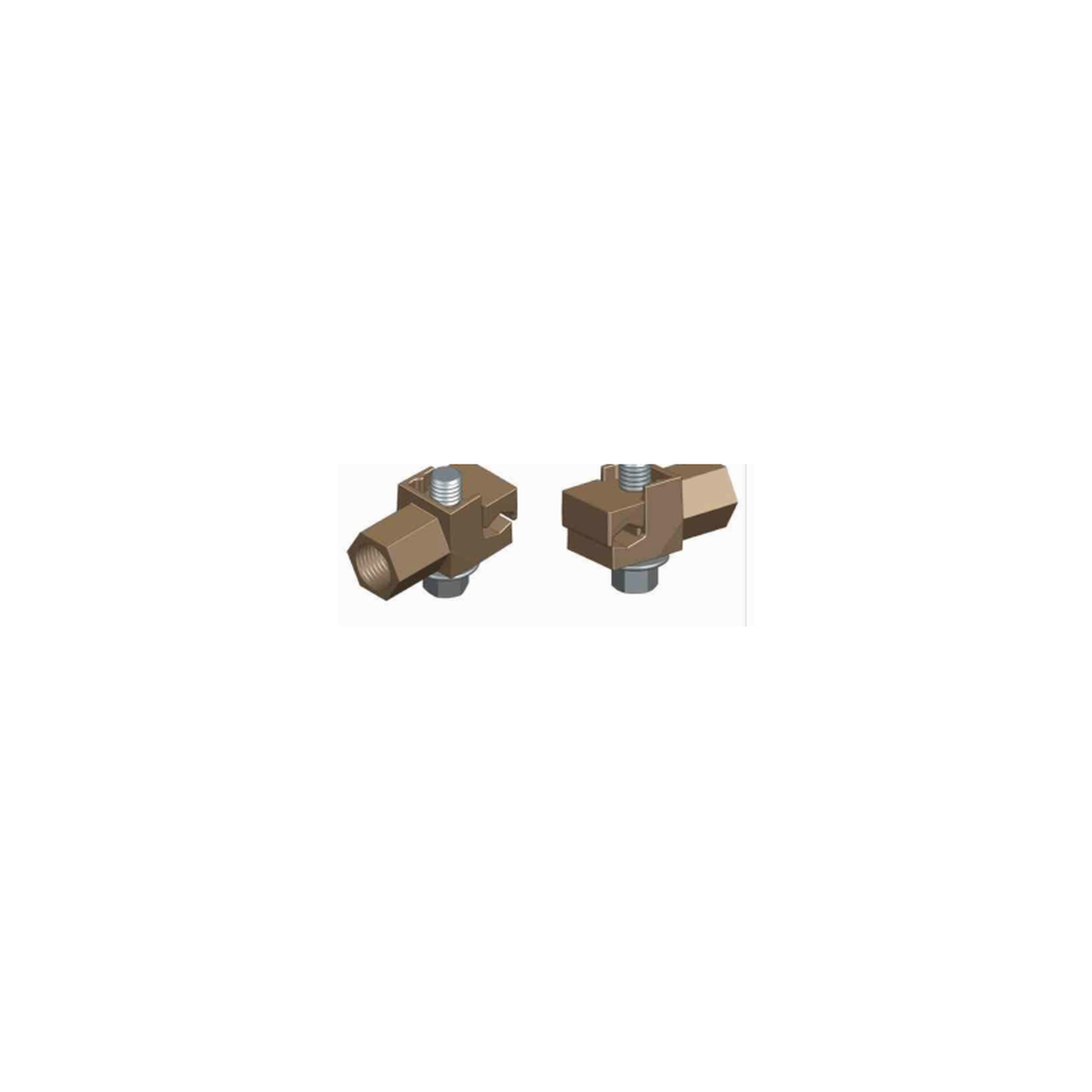

Bronze connector intended primarily for bottom termination of lightning arresters to ground. Also suited to top connections where a compact, low-profile arrester terminal is required. Rated 600 V per NEMA CC1 and IEEE 837. Bronze, RoHS compliant. Mounts to plate, structure, or bushing stud.
| Cat. No. | Stud Size | Conductor Range O.D. | Wt / 100 lbs (kg) |
|---|---|---|---|
| IGC207LA | 3/8″-16 | #6 Sol. – 1/0 Str. (.162″ – .373″ / 4.1–9.5 mm) | 22 (9.9) |
