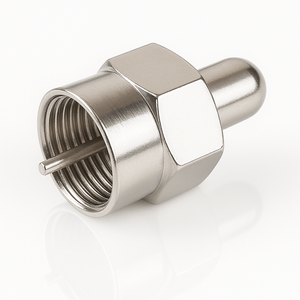

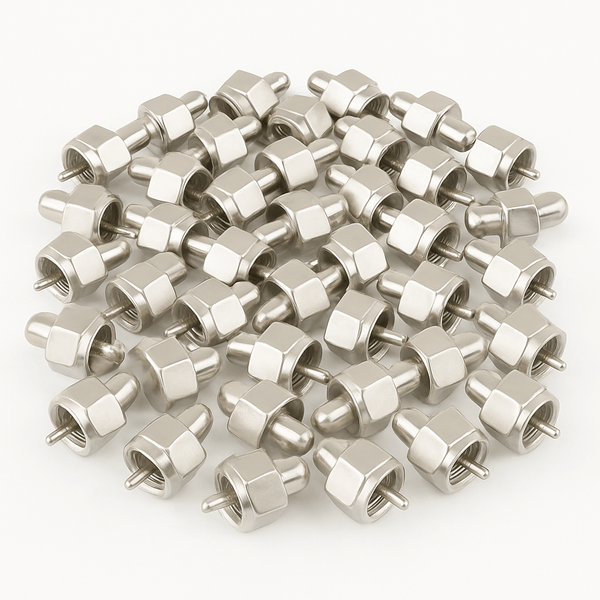

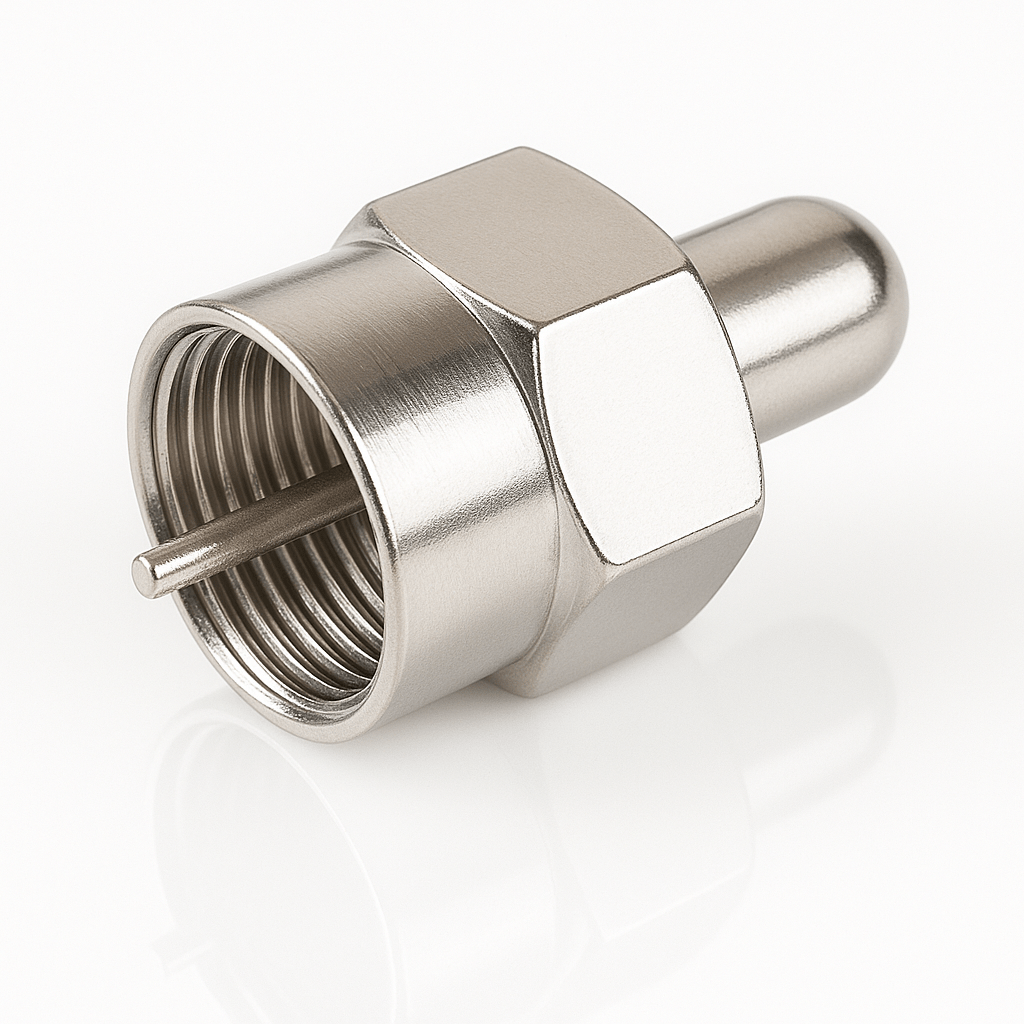

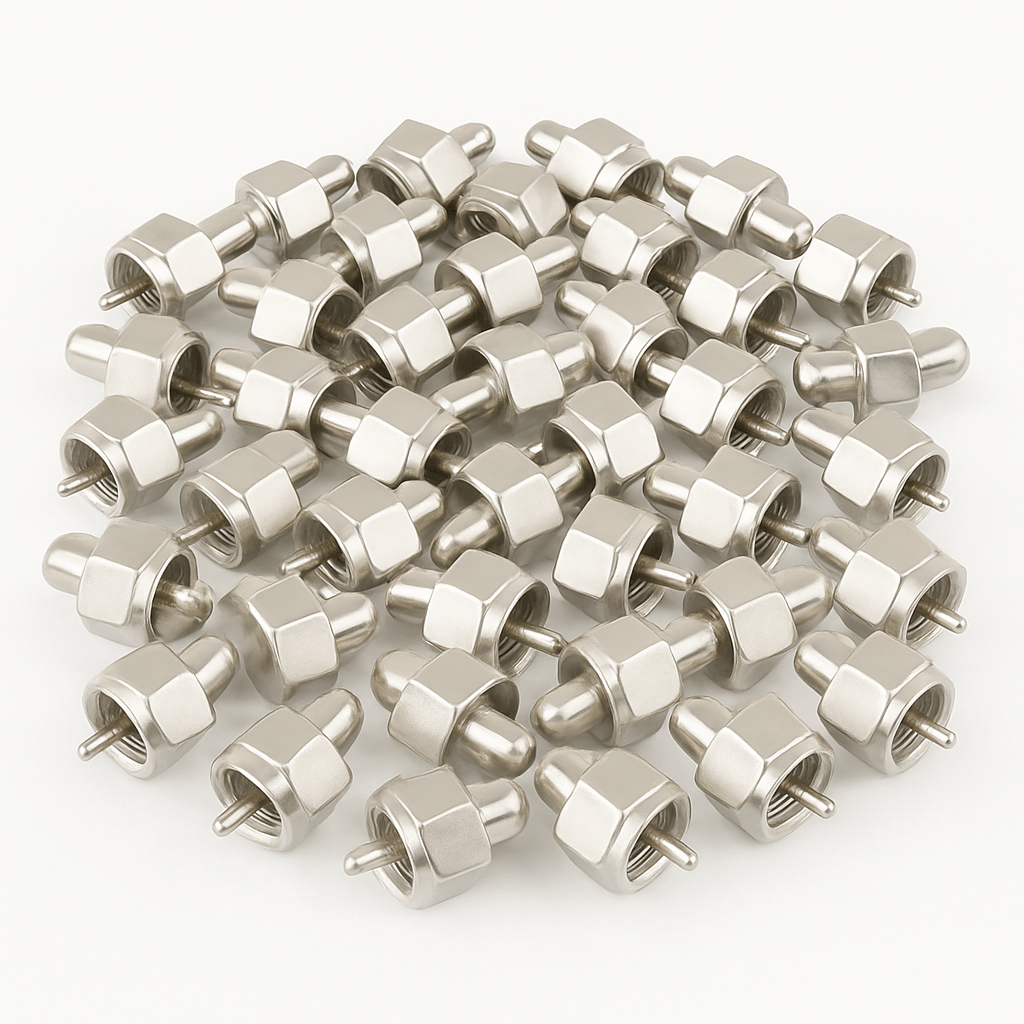

High Return Loss Terminators, 50 pcs
Shipping calculated at checkout
SKU: HRT
500 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Conversions Tech High Return Loss 75 Ω Coaxial Terminator — Ultra-Low VSWR | RoHS & REACH Compliant
Silence reflections and preserve every pixel, frame, and data packet with the Conversions Tech High Return Loss 75 Ω Coaxial Terminator. Engineered for broadcast, RF, and surveillance networks, this precision terminator maintains ≥ 26 dB return loss @ 1 GHz and ≥ 22 dB @ 3 GHz to keep signal integrity pristine. Compact, rugged, and easy to install, it’s the finishing touch that keeps every port quiet and every transmission clean.
Performance Highlights
- Ultra-Low VSWR ≤ 1.05 (DC – 6 GHz): Eliminates standing-wave build-up for maximum return-loss performance.
- Precision 75 Ω Impedance (± 1 %): Thin-film resistor ensures tight impedance matching and minimal reflection.
- Nickel-Plated Brass Shell: Resists corrosion while providing superior EMI / RFI shielding.
- Compact & Lightweight (≤ 12 g): Adds virtually zero strain to patch bays or analyzer ports.
- Quick-Grip Knurled Collar: Speeds installation in dense racks and test benches.
Ideal Use Cases
- CATV head-ends and distribution amplifiers
- Broadcast and post-production router frames
- CCTV / NVR unused video inputs
- RF test benches and spectrum / network analyzers
- Satellite, MATV, and IPTV systems
Technical Specifications
| Impedance | 75 Ω ± 1 % |
| Return Loss | ≥ 26 dB @ 1 GHz | ≥ 22 dB @ 3 GHz |
| Frequency Range | DC – 6 GHz |
| Connector Type | BNC male (others available on request) |
| Power Rating | 1 W @ 25 °C ambient |
| Body Material | Nickel-plated brass housing with precision thin-film resistor |
| Dimensions (W × L) | Ø 14 mm × 34 mm (0.55″ × 1.34″) |
| Weight | 12 g (0.42 oz) |
| Certifications | RoHS & REACH Compliant • BABA Certified |
| Origin | USA *Stock product may be sourced elsewhere. |
Applications
- Broadcast and video-production signal termination
- CATV and MATV distribution frames and amplifiers
- RF test benches and analyzer ports
- CCTV / surveillance unused inputs
- Satellite and IPTV network maintenance
Stop signal ghosts before they start. Add a Conversions Tech High Return Loss Terminator to every unused port and enjoy pristine, reflection-free transmission with rock-solid impedance matching from DC to 6 GHz.
