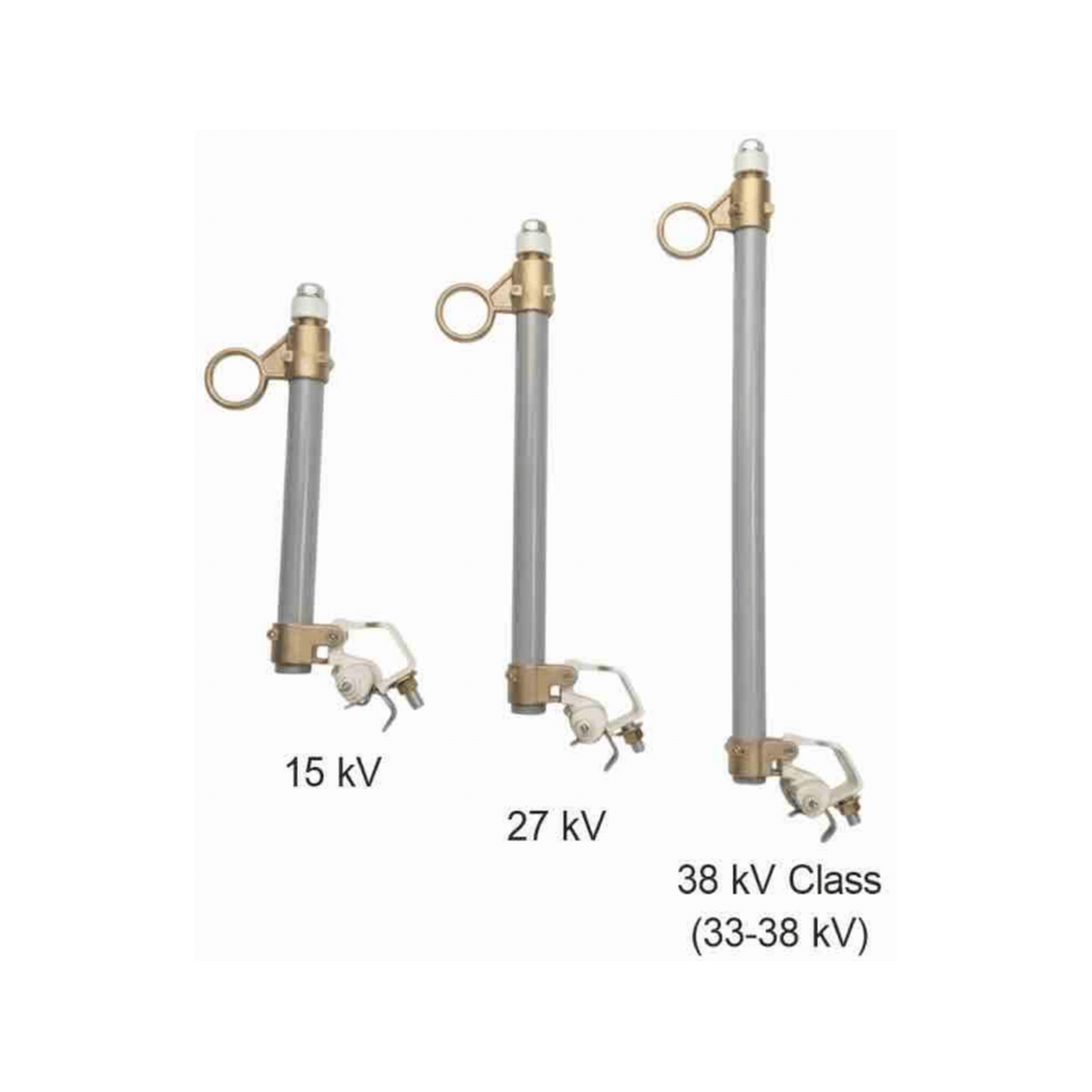

High-Voltage Drop-Out Fuse Holders — IFH Series (15 / 27 / 38 kV)
Shipping calculated at checkout
SKU: IFH15
In stock
A Type C cutout combines a fuse holder and disconnecting device, protecting distribution transformers and overhead lines by interrupting fault and overload current. The fiberglass fuse tube with UV-resistant coating houses the fuse link; on operation the assembly drops out to a visible open position — protection and a visible disconnect for crews in one device. Supplied with fuse holder, pull ring, and contact hardware. Tested per IEEE C37.41, C37.42 and IEC 60282-2. Verify fuse-link type and rating at order.
| Cat. No. | Voltage | Rated Current | Frequency | BIL (Lightning) | Interrupting Cap. |
|---|---|---|---|---|---|
| IFH15 | 15 kV | 100 / 200 A | 50 / 60 Hz | 95 kV | Up to 12 kA |
| IFH27 | 27 kV | 100 / 200 A | 50 / 60 Hz | 125 kV | Up to 12.5 kA |
| IFH38 | 38 kV Class (33–38) | 100 / 200 A | 50 / 60 Hz | 150 kV | Up to 12.5 kA |
