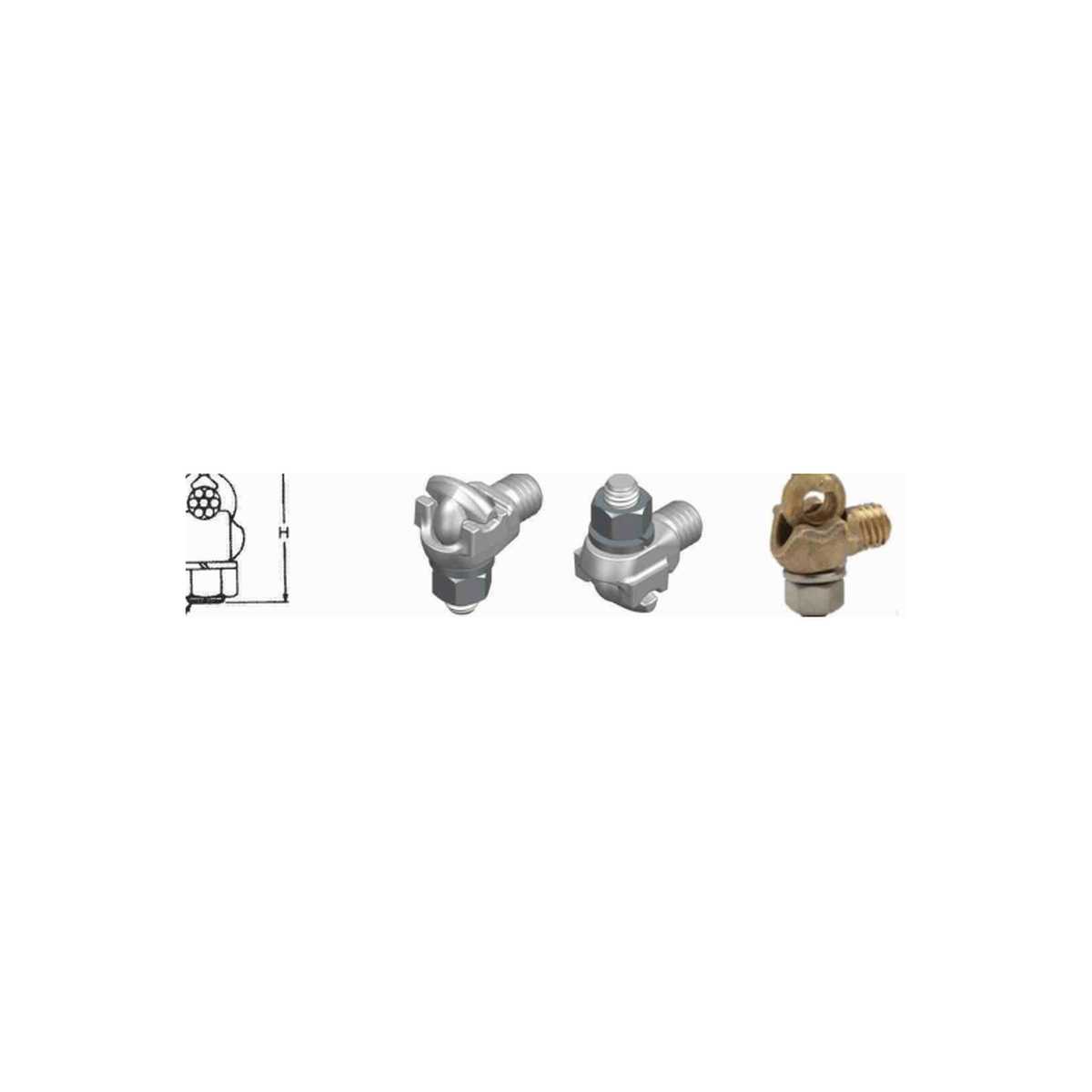

Transformer Tank Ground Clamps 90° — GTCL Type (ITCL Series)
Shipping calculated at checkout
SKU: ITCL10
In stock
Bronze-alloy 90° ground clamp for tapping copper conductor to a transformer tank. Tapered threads at the base of the stud ensure positive locking and electrical contact without lockwashers — the taper wedges tight as it seats, holding through thermal cycling. Used on pole-mounted distribution transformers, pad-mounted transformers, substation equipment, and neutral grounding connections. Rated 600 V per NEMA CC1 and IEEE 837. RoHS compliant.
| Cat. No. | Copper Cable Range | L in. (mm) | H in. (mm) | W in. (mm) | J in. (mm) | Stud |
|---|---|---|---|---|---|---|
| ITCL10 | #10 Sol. – #1 Str. | 7/8 (22.22) | 1-1/2 (38.1) | 1-3/8 (34.92) | 3/8 (9.52) | 1/2″-13 |
| ITCL8 | #8 Sol. – 2/0 Str. | 1 (25.4) | 1-7/8 (47.62) | 1-17/32 (38.89) | 3/8 (9.52) | 1/2″-13 |
