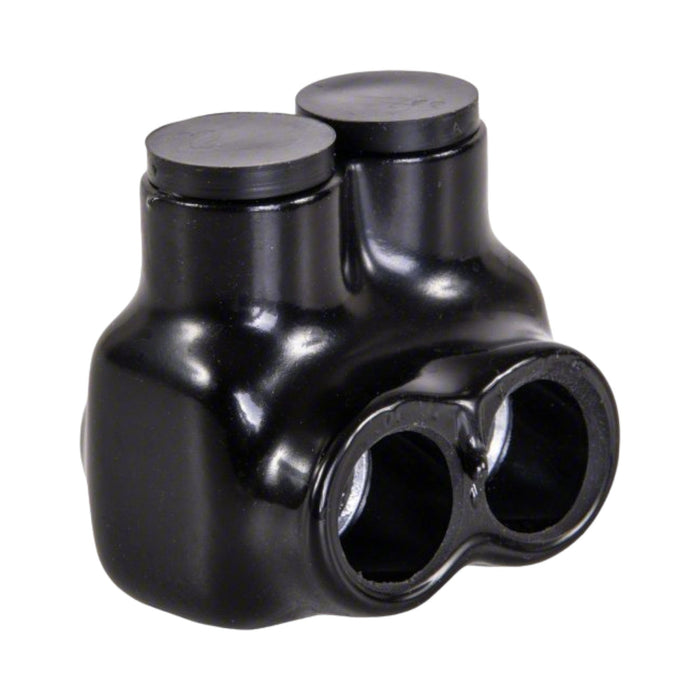

Insulated Tap Connectors 2 port single-side Entry 4 AWG - 600 MCM
Shipping calculated at checkout
SKU: 610-2002600
Out of stock
Open here
Insulated Tap connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. These connectors offer several key advantages:
Key Advantages
- Secure Connections: Utilizes adjustable set screws and a rounded body design to create a high-pressure connection between conductors. This design ensures a reliable and long-lasting connection with minimal electrical resistance.
- One-Side Wire Entry: Form secure connections between 2 conductors quickly using the single-side entry ports sized for wires between 4 AWG and 600 KCMIL. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
- NEC 230.46 Compliance: The design adheres to National Electrical Code (NEC) Article 230.46 requirements, making them suitable for line side connections on service equipment.
- Ergonomic Design: The connectors boast a rounded body and a smooth plastisol insulation finish, promoting comfortable gripping during installation.
- Removable Plugs: Each port and set screw comes equipped with a removable plug, preventing debris, moisture, and contaminants from entering the connector body before and during wire insertion.
- Pre-Filled Oxide Inhibitor: Both entry ports are pre-filled with an oxide inhibitor gel. This gel helps to prevent corrosion at the conductor-to-connector interface, ensuring a low and stable electrical resistance over time.
- Professional Performance: The durable plastisol insulation coating on each connector offers superior resistance to UV radiation, abrasion, and chemicals. This ensures reliable performance and extended service life in various environmental conditions.
Key Technical Specifications
Wire Gauge Range: 4 AWG to 600 KCMIL
Connection Type: Set Screw
Insulation Material: UV-resistant Plastisol
Features: Single-Sided Entry, Removable Plugs, Pre-Filled Oxide Inhibitor
Voltage Rating: 600 V
Material: Aluminum
Finish: Plastisol Insulated (UV resistant)
Color: Black
UPC: 810166610537
Origin Country: US
Certifications: cULus, Meets NEC 230.46
UL Standard: UL 486A/B
UL File No: E186991
Wire Cable Class: Class B, Class C
Conductor Max Amps:
- Aluminum: 100 A
- Copper: 130 A
Conductor Size Range: Aluminum: 4 AWG to 600 KCMIL
Conductor Type: Copper, Aluminum
Temperature Rating: 90C, AL9CU
Conductor Count: 2
Environmental Temperature: Cold Temperature rated to -45C
Bolt and Screw Sizes
Number of Wire Binding Screws per Port: 1
Wire Binding Screw Size: 13/16
Wire Binding Torque: 375
Dimensions:
- Height: 3.034 IN
- Height BX: 3.75 IN
- Length: 2.781 IN
- Weight: 0.707 LB
- Weight BX: 2.3166 LB
- Width: 2.578 IN
- Width BX: 6 IN
Applications
- Residential electrical installations
- Commercial building wiring systems
- Industrial machinery and equipment electrical systems
- Power distribution networks
- HVAC systems
- Infrastructure and utility projects
- Electrical systems in automotive and marine environments
- Machinery and equipment wiring across various industries
