Screw Lugs Assembly 2pin 3pin 4pin Power Cable Divided Waterproof Electrical Connector IP68 From AOHUA Factory
Sale price
$3.49
Shipping calculated at checkout
SKU: 200497261:3681680#2P;210204035:-2#N
In stock
🖨️ Print Spec Sheet
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
SPECIFICATIONS
Application: With LED Light,Power,Electrical,Wire Connections,Electrics,such as LED lightings,outdoor lighting
Brand Name: AOHUA
Cable OD: 5-10m
Conductor: copper
Connection Type: screw fixing
Connector Type: T splitter
Contact Material: Copper Alloy
Current Rated: 20A/16A
Docking Type: screw threads
Gender: Female
Housing Material: Nylon,PA66
IP Level: IP68
Model Number: M20
Operating Temperature: -40℃~+105℃
Place of Origin: Guangdong, China
Rated Current: 16 A
Rated Voltage: 300 V
Shape: Round
Type: Plug
Voltage Rated: 300V
Wire Size: 0.5/0.75/1.0/1.5mm
Product Description
Screw Lugs Assembly 2pin 3pin 4pin Power Cable Divided Waterproof Electrical Connector IP68 From AOHUA Factory

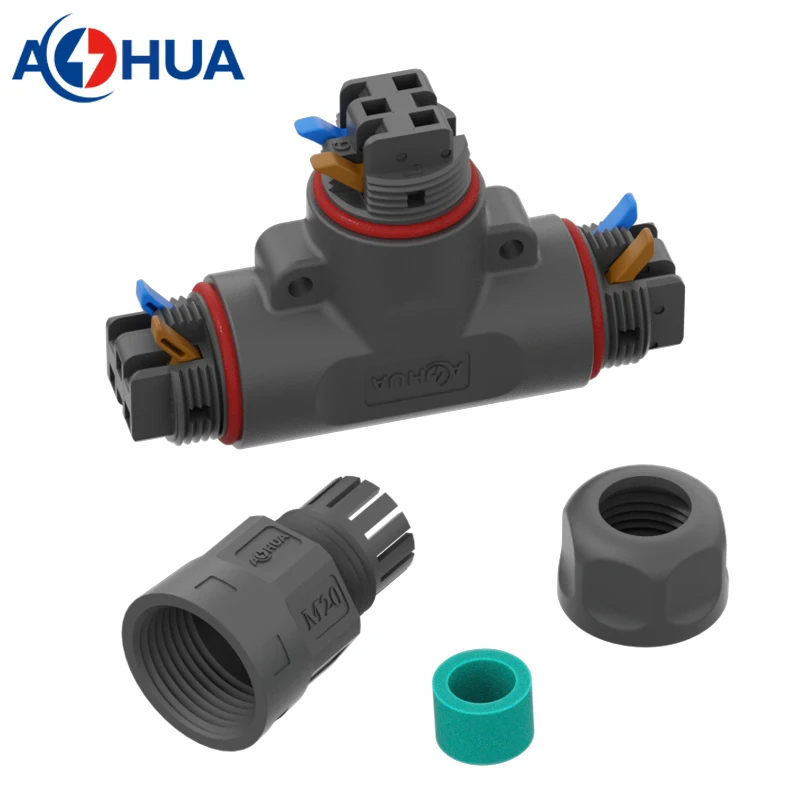

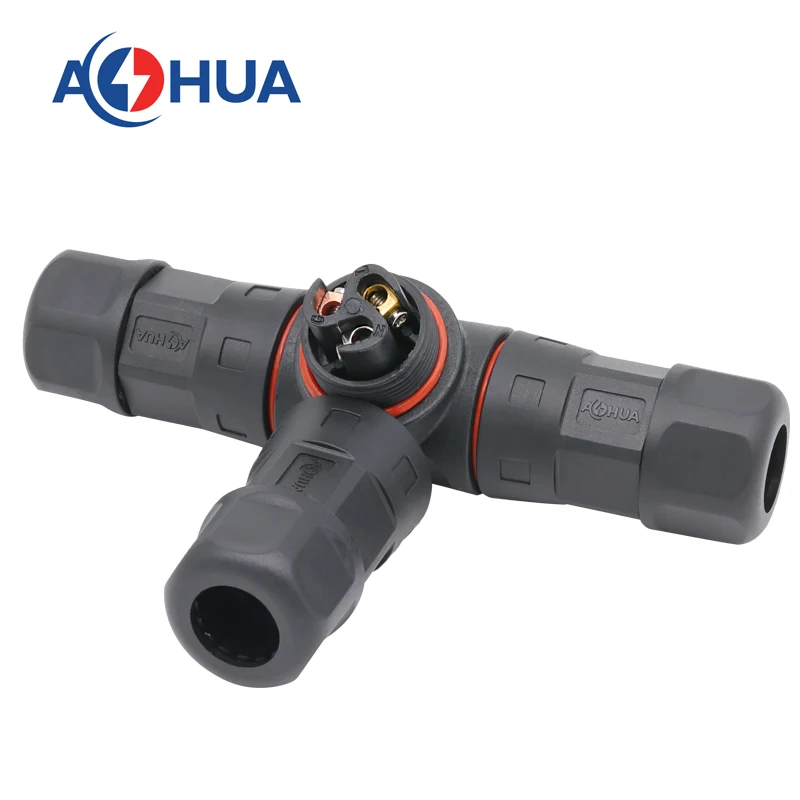

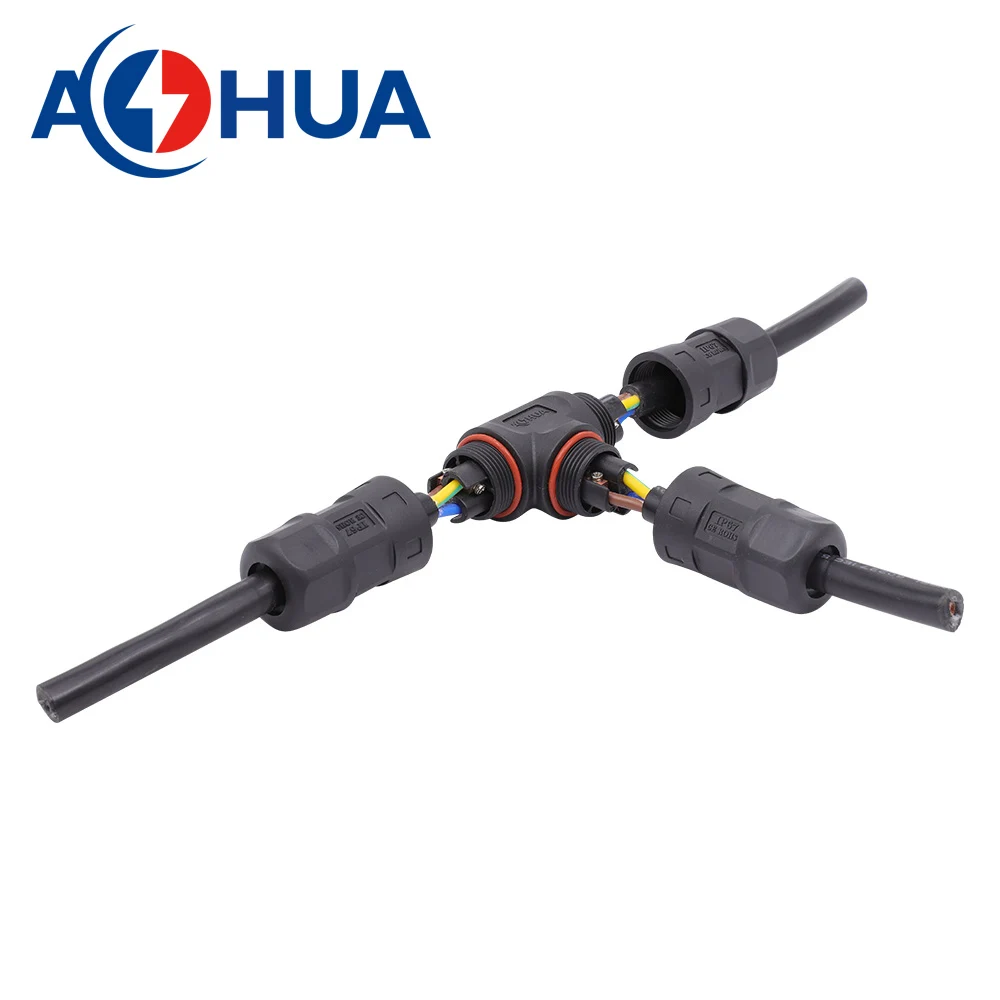

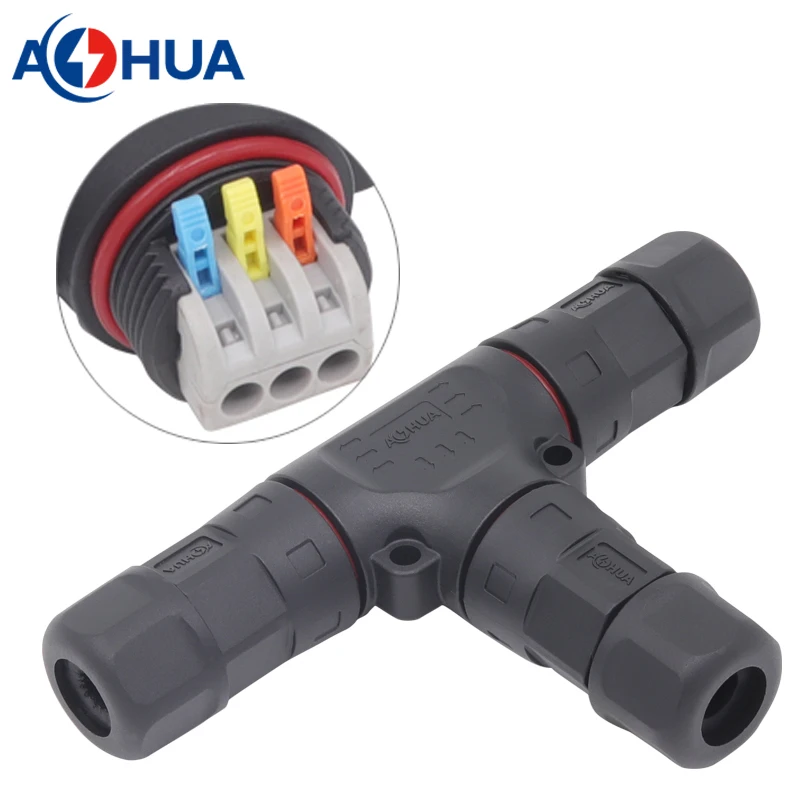

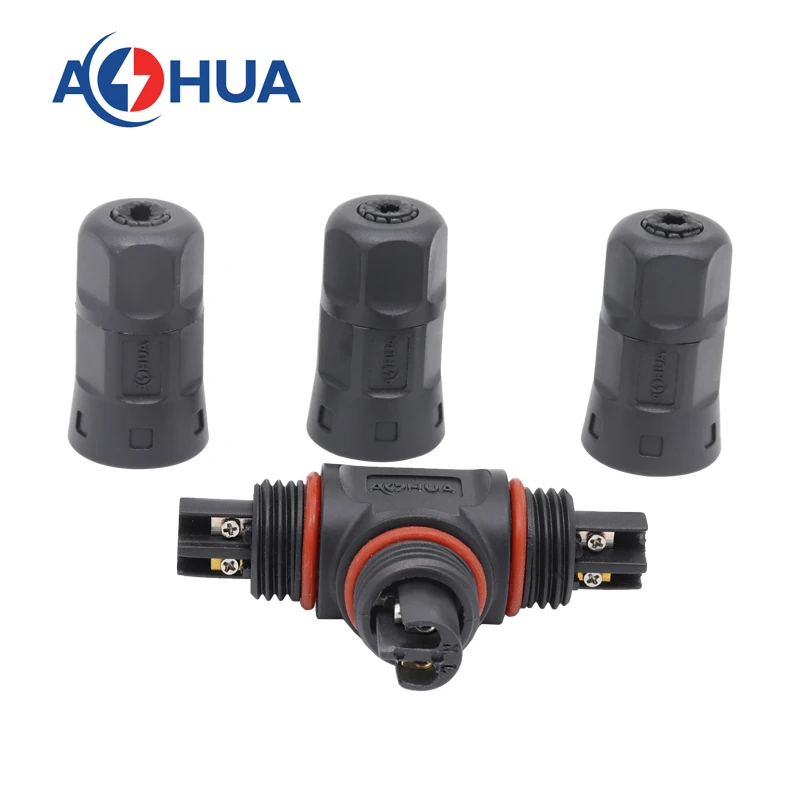

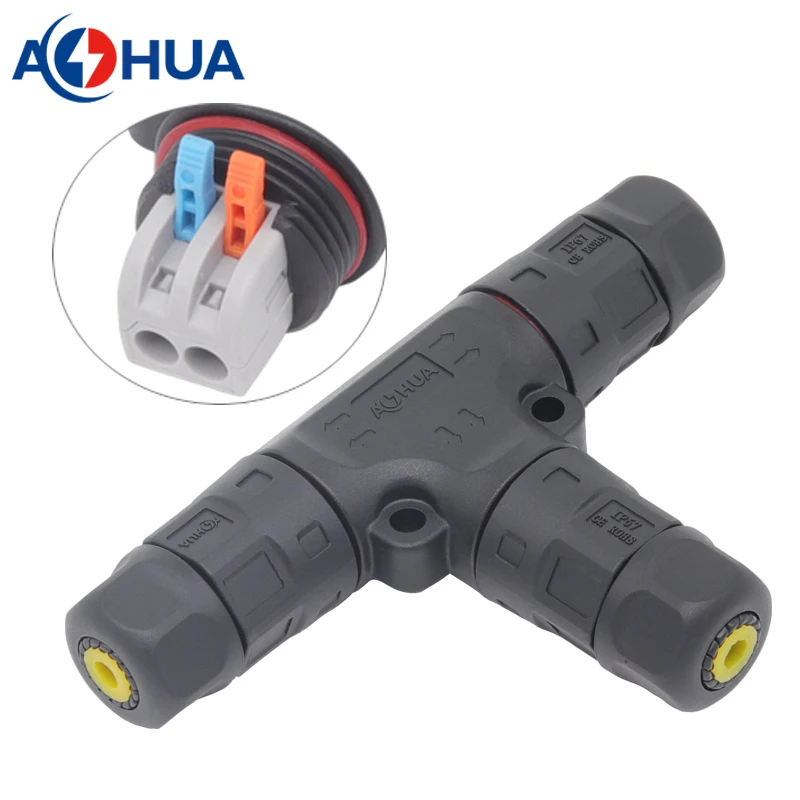

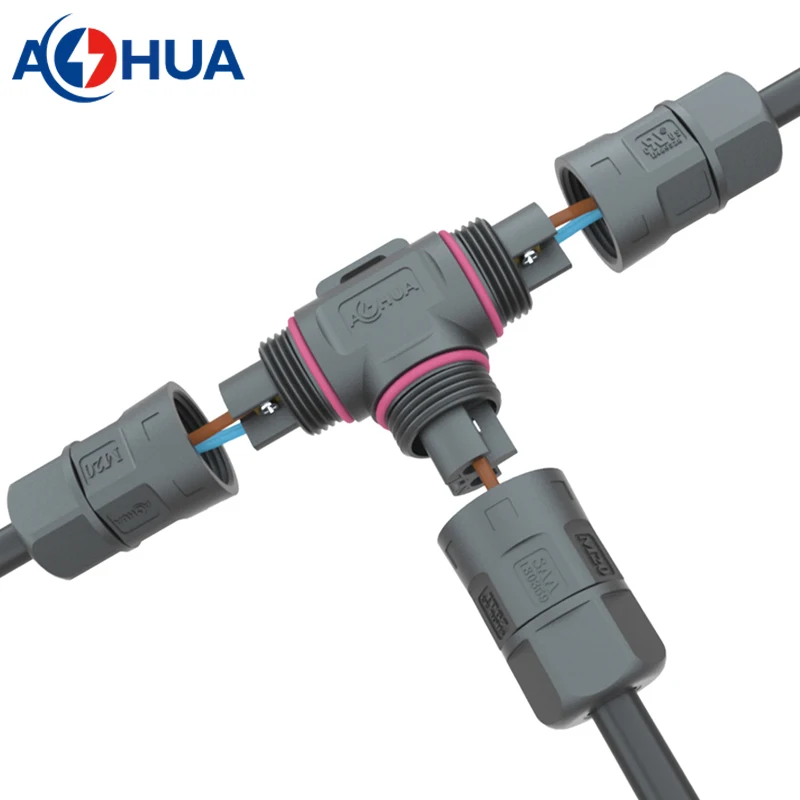

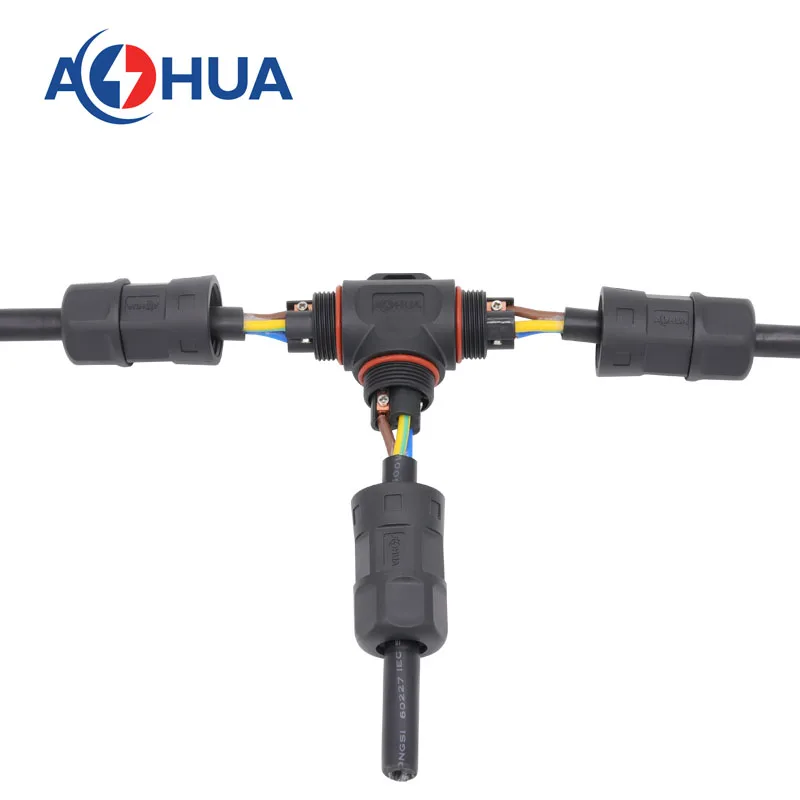

Here introduce the screw fixing type waterproof connector in Type. This is unpluggable type waterproof connector, can not plug and unplug. But the key point is its splitter. It can divide the wire into multiple wires. It means that it is one input and 2 outputs.
M15
PIN: 2pin
Voltage Rated: 300V
Current Rated: 10A
Wire Size: ≤0.5mm²
Cable OD: 3-7.5mm

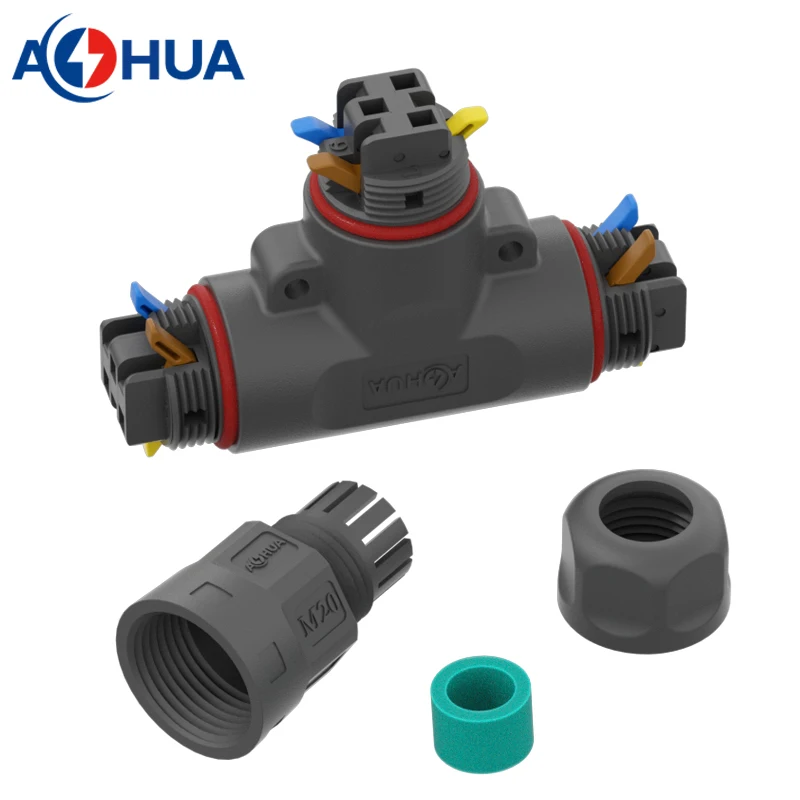

M20
PIN: 2pin /3pin / 4pin
Voltage Rated: 300V
Current Rated: 20A/10A
Wire Size: ≤1.5mm²
Cable OD: 5-10mm
Current Rated: 20A/10A
Wire Size: ≤1.5mm²
Cable OD: 5-10mm
M23
PIN: 2pin /3pin / 4pin
Voltage Rated: 300V
Current Rated: 35A/120A
Wire Size: ≤4.0mm²
Cable OD: 7-15mm
Current Rated: 35A/120A
Wire Size: ≤4.0mm²
Cable OD: 7-15mm
Plastic |
PA66 |
Conductor |
brass |
Operating Temperature |
-40℃~+105℃ |
Waterproof Grade |
IP67/Ip68 |

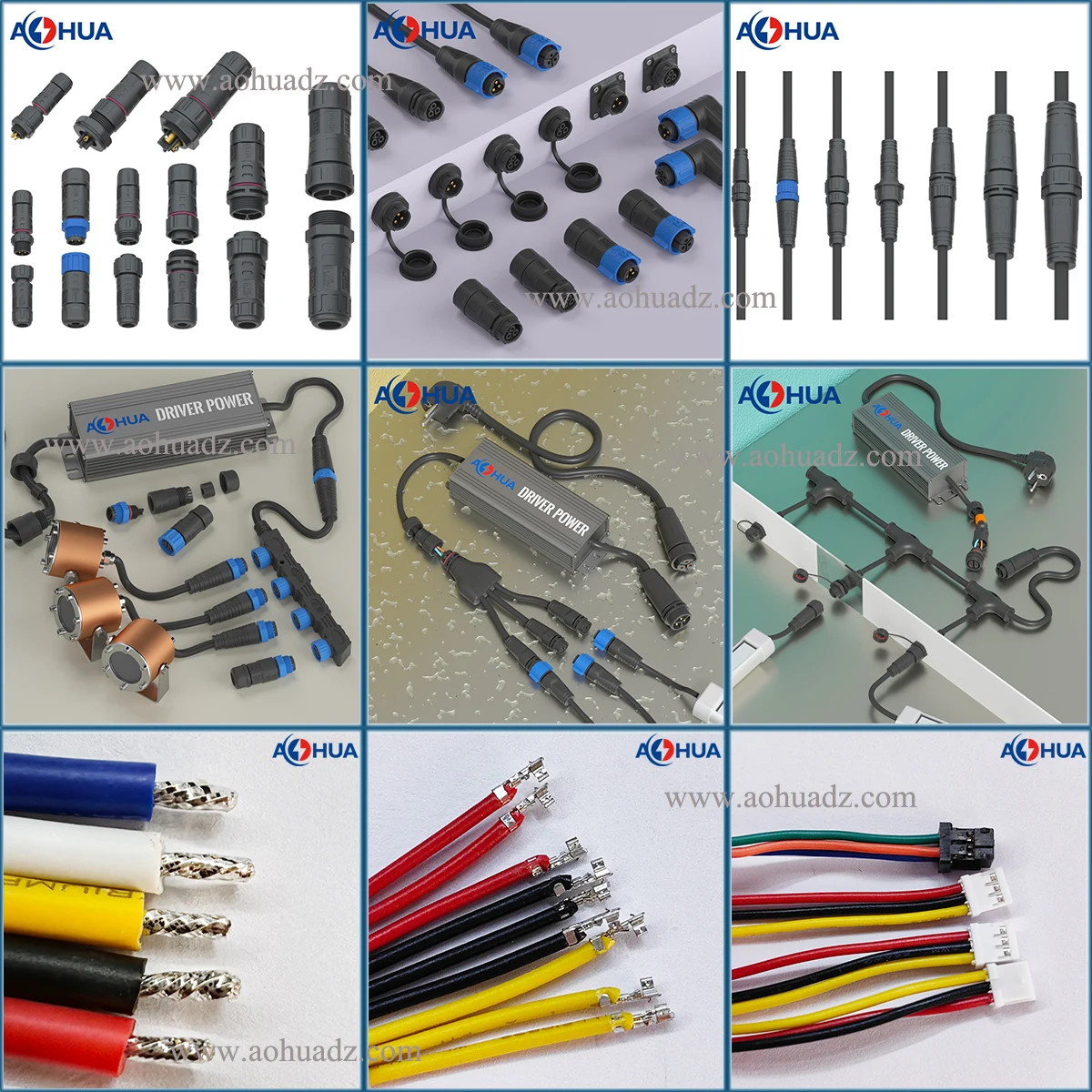

Related Product
How To Order

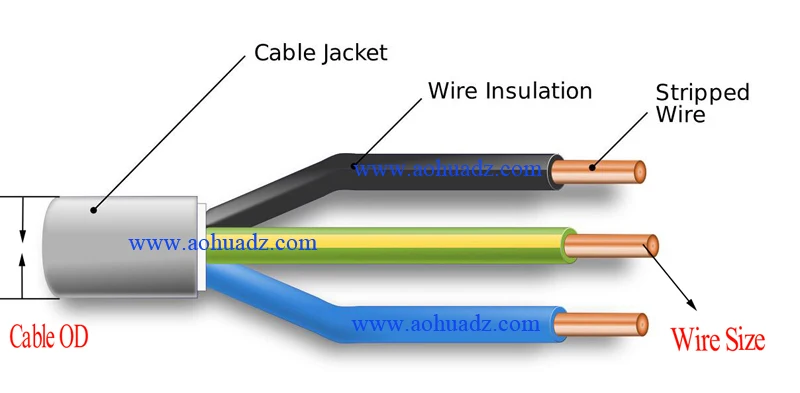

Wire details
1. Connector type;
Customization Solution
Company Profile
