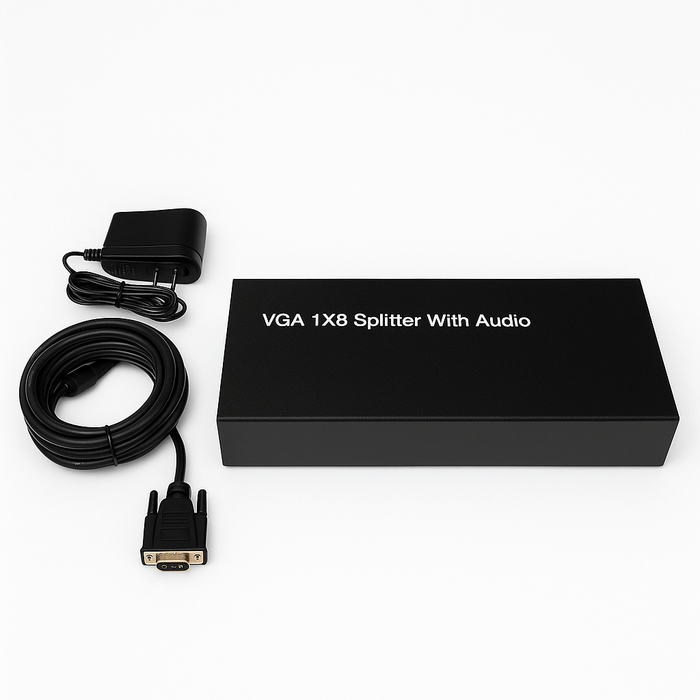

Active VGA Splitter 1×8
Shipping calculated at checkout
SKU: CTVGA-S8
Only 10 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Conversions Tech Active VGA Splitter 1×8 & 1×2 With Stereo-Audio
Replicate one VGA + stereo source to 8 or 2 displays simultaneously—zero image loss, zero setup headaches.
Key Advantages
- 500 MHz Bandwidth — razor-sharp 1920 × 1200 & 1080p video
- True Active Distribution — independent re-clocking & buffering on every output
- 15 m / 49 ft Cable Drive — crystal-clear signal on long VGA runs
- Stereo-Audio Pass-Through — synchronised L/R audio for projector arrays
- Plug-and-Play — connect, power up, present (no EDID or DIP switches)
- Cascade-Ready — stack up to 64 outputs via 1×8 model
Technical Specifications
| Model | Video Outputs | Audio Outputs | Max Resolution | Cable Reach* |
|---|---|---|---|---|
| VS-1×8A | 8 × HD-15 | 8 × 3.5 mm TRS | 1920 × 1200 @ 60 Hz / 1080p | 15 m |
| VS-1×2A | 2 × HD-15 | 2 × 3.5 mm TRS | 1920 × 1200 @ 60 Hz / 1080p | 15 m |
*Using 24 AWG, 75 Ω VGA-grade cabling.
Electrical Performance
Bandwidth (-3 dB): 500 MHz
Gain / EQ: unity with automatic pre-emphasis & DC restoration
Crosstalk: < -60 dB @ 10 MHz
Audio Response: 10 Hz – 20 kHz (±0.5 dB), THD < 0.05 %
Power: 5 V DC, regulated adapter included
Ideal For
Control rooms • Digital signage • Data-center monitoring • Trade-show demo walls • Boardrooms • Classrooms • Projector QA lines
