WINDOO Small Intermediate Electromagnetic Relay F18 HH54 MY AC DC 12 24 220V Big 8 Feet Transparent
Shipping calculated at checkout
SKU: 241567442:9619657123#AC220V;5:100014066#Small 14Pin Relay
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
SPECIFICATIONS
Brand Name: WINDOO
Certification: CE
Contact Load: Low Power
Hign-concerned Chemical: None
Model Number: WDNJ
Origin: Mainland China
Power Source: DC
Theory: Electromagnetic Relay
Use: General Purpose
Voltage: 24V
is_customized: Yes
WINDOO Electromagnetic Relay
1.LB18F high quality relay series
2. Optional voltage: DC12V DC24V
3. Contact type: 2NO2NC 4NO4NC

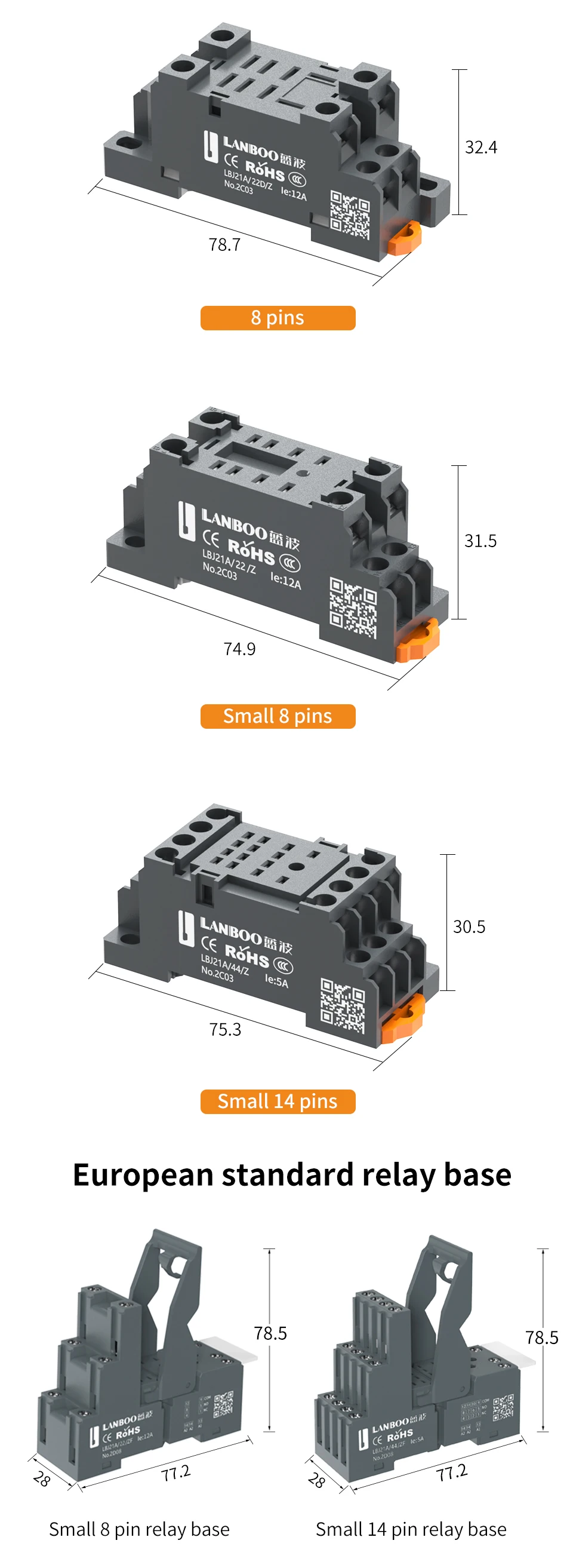

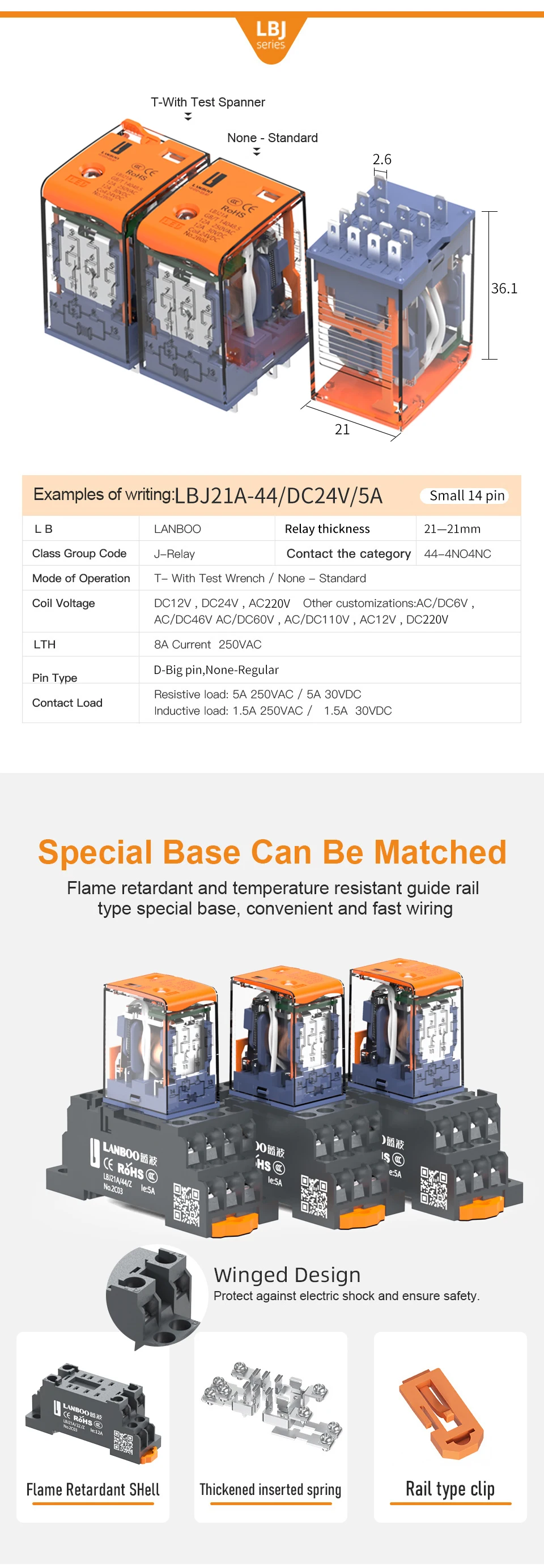

4. Can be equipped with a special base, buy a base to send a reinforced circlip
[Special attention] Executive standard: GB15092
