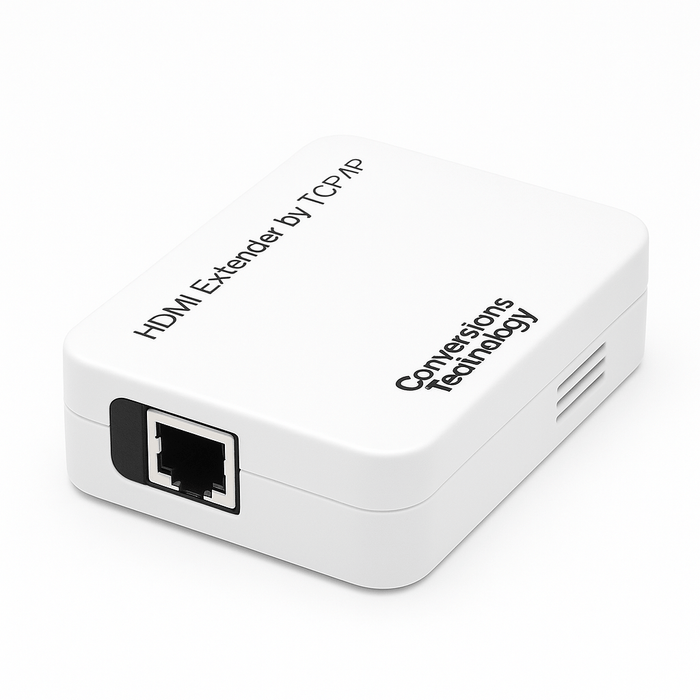

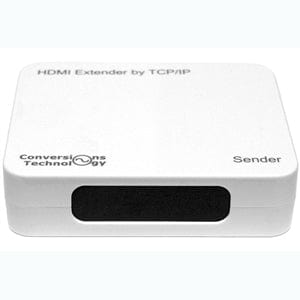

HDMI over TCP/ IP Sender and Receiver
Shipping calculated at checkout
SKU: HDMIFreedom2 Kit
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Convert ordinary Gigabit Ethernet into a zero-latency 1080p A/V backbone. The Conversions Tech Freedom² receiver reconstructs UDP packet payloads from a single Cat-5e/6 link—up to 330 ft / 100 m point-to-point—and outputs a crystal-clean TMDS stream for any HDMI™ or DVI-D display.
Core Performance Advantages
- Full-HD 1080p60 with 4:4:4 color integrity
- Layer-2 Multicast-ready (IGMP v2/v3 snooping) for unlimited screen replication
- Up to 660 ft / 200 m via a single managed Ethernet switch hop
- < 1.5 µs transport latency—no frame buffering
- HDCP 1.4 pass-through for protected content
- Ultra-low 3.5 W typ. power draw (5 V DC; PoE SKU optional)
Technical Specifications
| Transport Protocol | UDP over TCP/IP, IGMP multicast |
|---|---|
| Ethernet I/O | 1 × RJ-45, 100/1000BASE-T |
| HDMI Output | 1 × HDMI Type-A (TMDS, HDMI 1.3/1.4) |
| Video Envelope | 480p → 1080p60, 8-bit RGB/Y Cb Cr 4:4:4 |
| Audio Support | LPCM 2–8 ch, 48 kHz / 24-bit |
| Max Distance | 100 m point-to-point; 200 m with one switch |

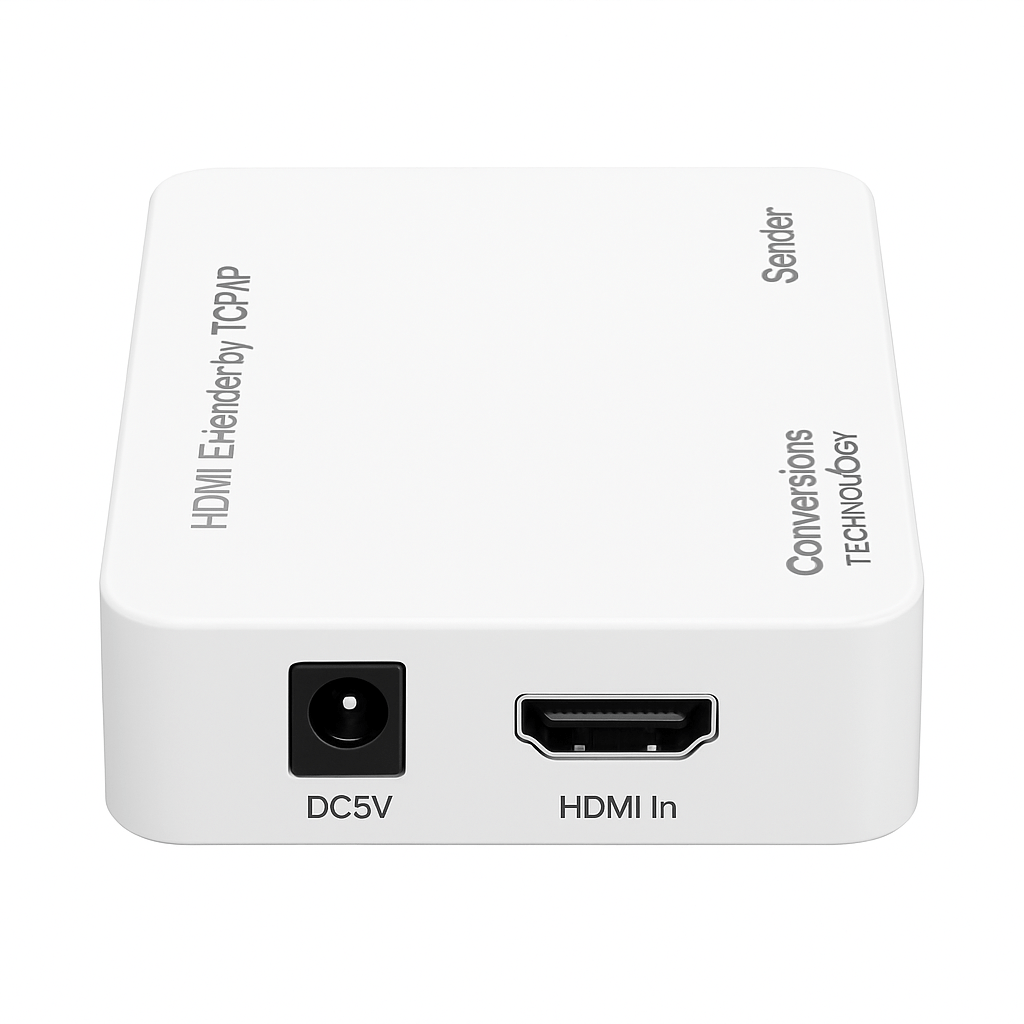

| Power Input | 5 V DC ±5 %, 1 A (locking barrel jack) |
| Dimensions | 92 × 58 × 22 mm (3.6 × 2.3 × 0.9 in.) |
| Weight | 110 g / 3.9 oz |
Network Topology Examples
- Point-to-Point: Encoder → 100 m Cat-6 → Receiver → Display
- Star / Multicast: Encoder → Gigabit switch → N × Receivers (IGMP)
- Extended Hop: Encoder → 100 m Cat-6 → Switch → 100 m Cat-6 → Receiver
Ideal Applications
Conference-room matrix replacement, campus digital signage, house-of-worship overflow, live-event monitoring, and any deployment requiring flawless full-HD video over existing copper infrastructure.
