Long Barrel Two-Hole Compression Lug 4/0 AWG 3/8" Stud | 90°C, 230A
Shipping calculated at checkout
SKU: 210-98101C
192 in stock

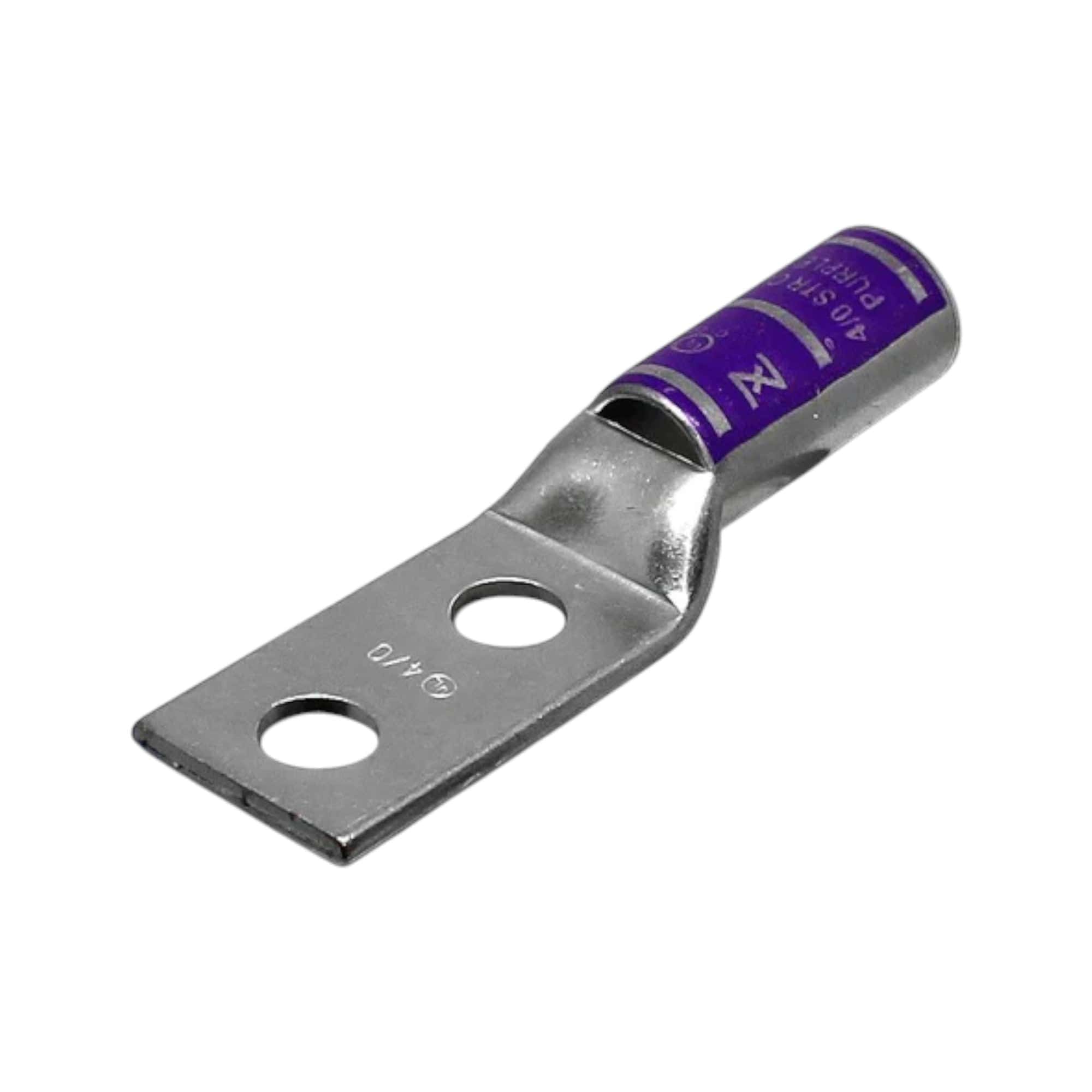

The Conversions Tech long barrel two-hole compression lug terminates 4/0 AWG copper conductors in high-current electrical systems. Engineered for switchgear, industrial control panels, renewable energy installations, and marine applications, this lug provides secure dual-point mounting with a 3/8-inch stud size. The long barrel design maximizes crimp contact area for reduced resistance and heat generation. A purple color code identifies 4/0 AWG compatibility for quick field verification.
Specifications
- Wire Size: 4/0 AWG
- Stud Size: 3/8"
- Color Code: Purple
- Overall Length (L): 86.2 mm (3.40")
- Neck Length (L1): 40.1 mm (1.58")
- Barrel Length (L2): 18.9 mm (0.74")
- Outer Diameter (D): 25.4 mm (1.00")
- Inner Diameter (D1): 17.4 mm (0.69")
- Hole Diameter (D2): 14.2 mm (0.56")
- Width (B): 37.2 mm (1.47")
- Hole Spacing (E): 10.4 mm (0.41")
- Thickness (F): 3.1 mm (0.12")
- Material: Tin-Plated Copper
- Temperature Rating: 90 °C
- Voltage Rating: 35 kV
- Max Amp Rating: 230 A
- Certifications: UL Recognized, CE Certified, RoHS Compliant
Cross-Reference
Equivalent to standard two-hole long barrel compression lugs from major manufacturers including Panduit, Burndy, and Ilsco. Conversions Tech lugs deliver comparable electrical and mechanical performance at distributor-level pricing.
FAQ
What crimping tool and die should I use for this lug?
Use a compression tool with the manufacturer-recommended die index for 4/0 AWG long barrel lugs to achieve a UL-approved crimp and gas-tight seal. Verify die compatibility with your specific crimping equipment before installation.
Is this lug rated for outdoor or wet location use?
The tin-plated copper construction resists oxidation and corrosion. The 90 °C temperature rating and 35 kV voltage rating support demanding industrial applications. Verify enclosure and insulation ratings for your specific installation environment.
Why choose a two-hole design over a single-hole lug?
Dual holes distribute mounting torque across two points, resisting rotation and loosening under vibration. This configuration is preferred for switchgear, heavy equipment, and high-current busbar connections where mechanical stability is critical.
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 4/0 AWG, 3/8 Inch stud
CT P/N 210-98101C is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA282N |
| Panduit | LCC4/0-12-X |
| NSI Industries | L40N * |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
