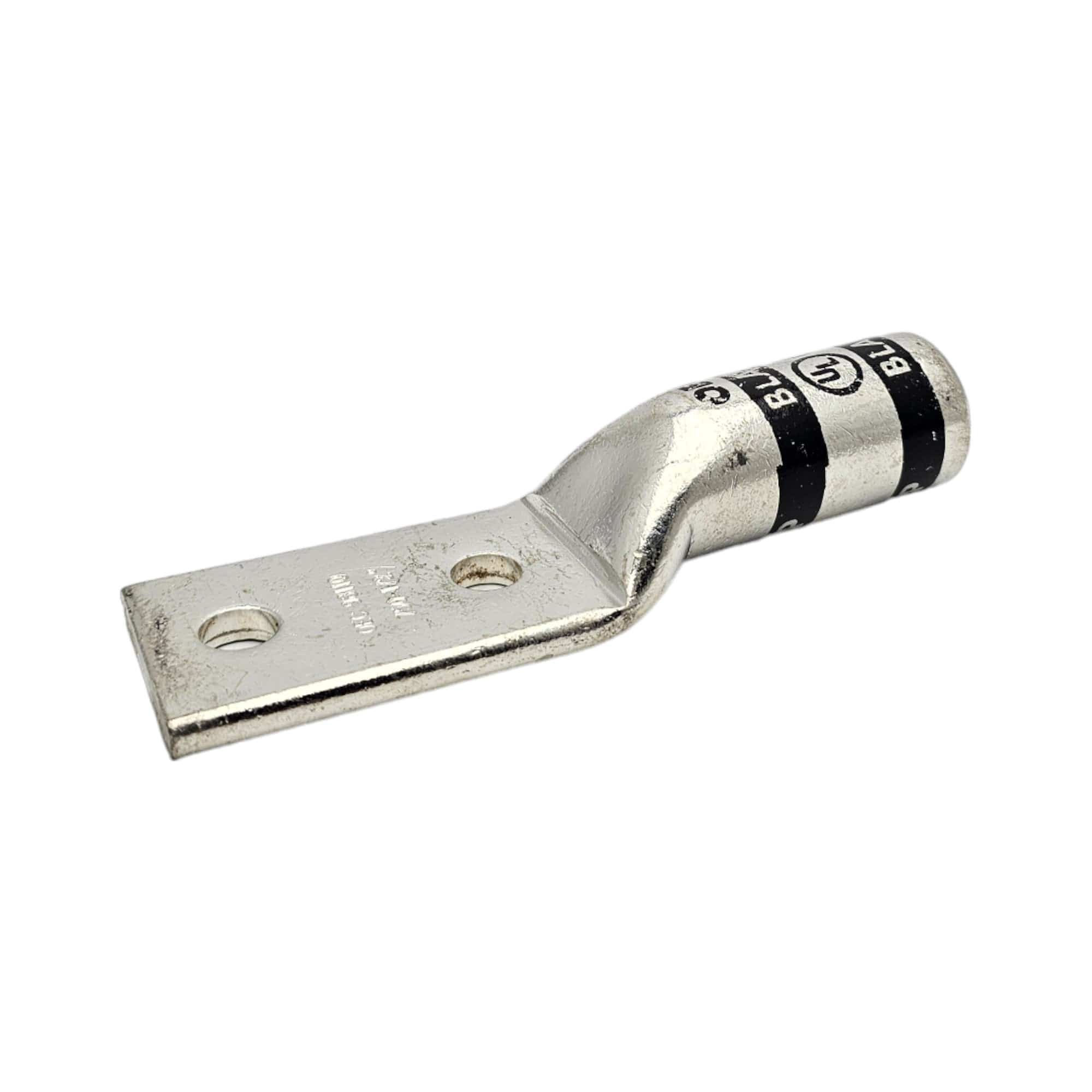

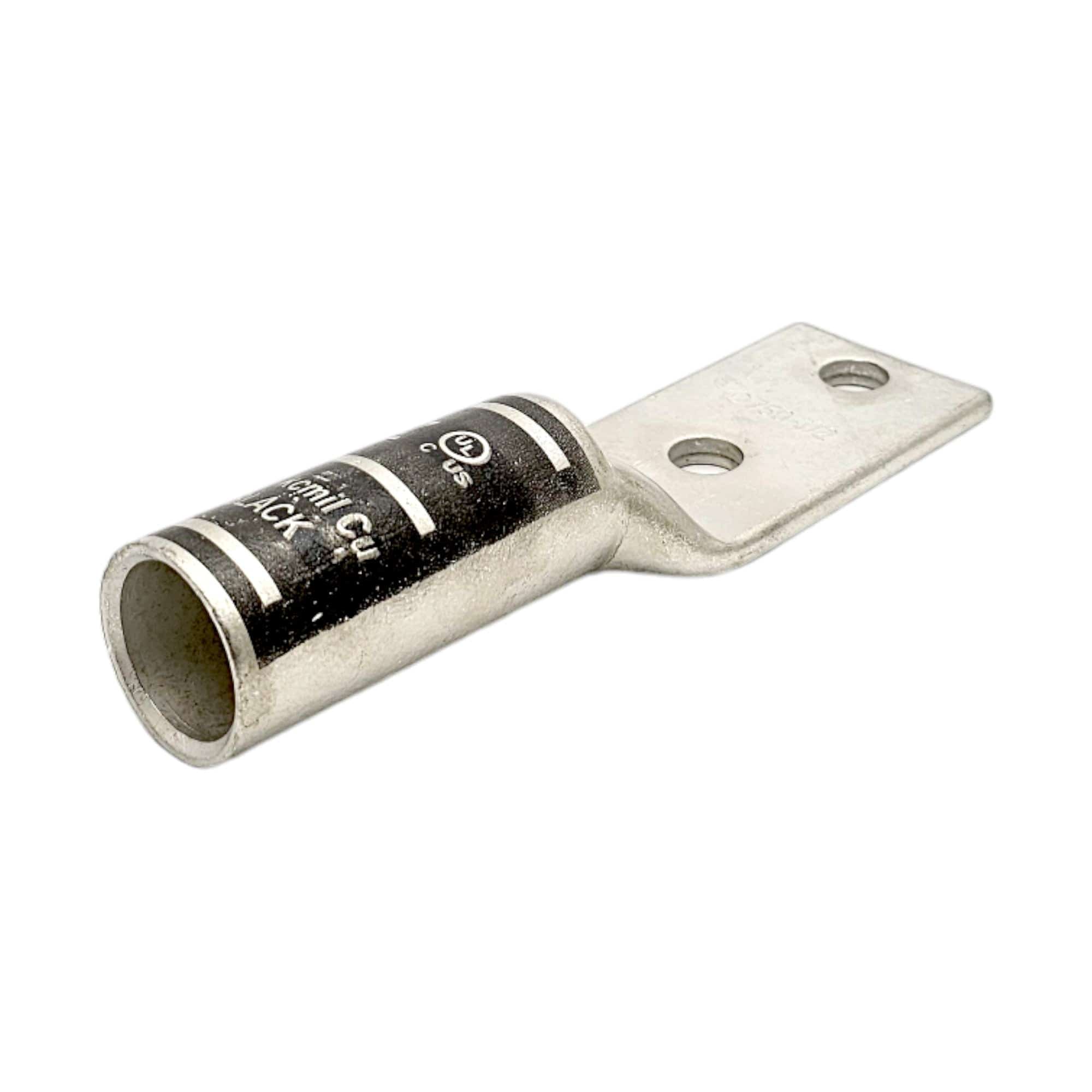

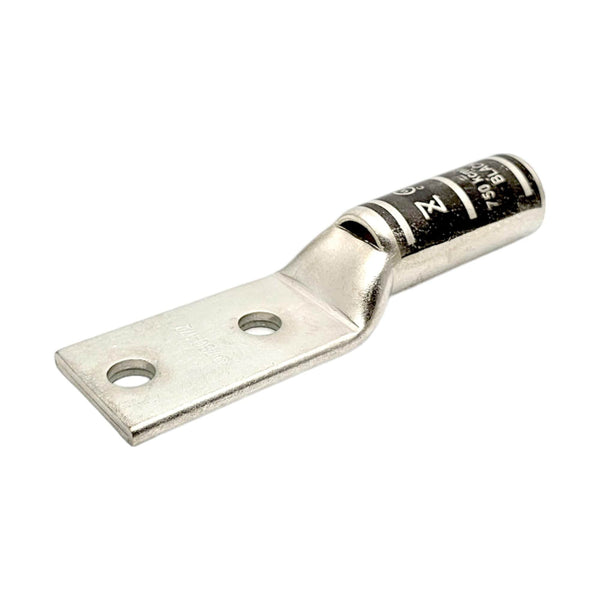

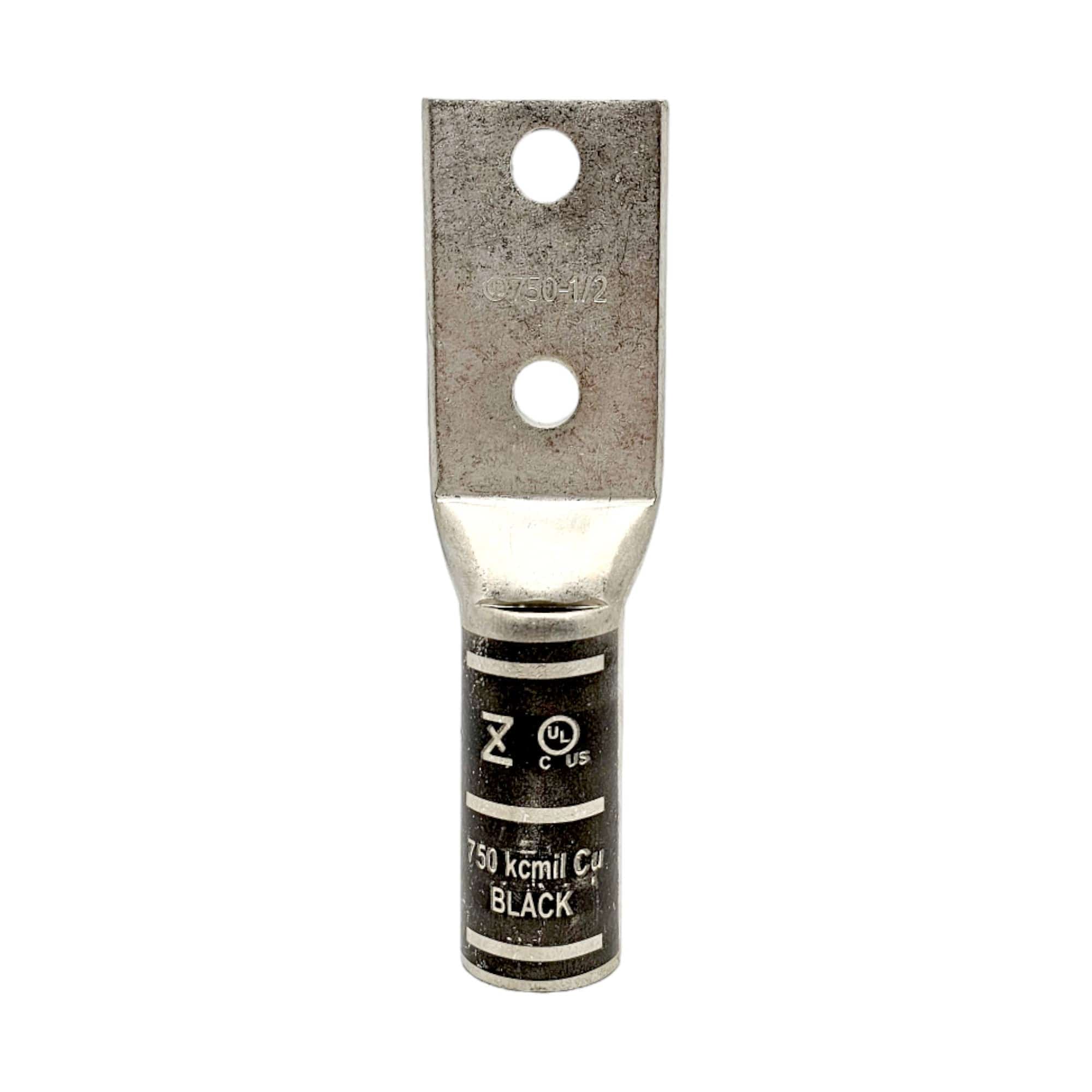

Copper Long Barrel Two Hole Compression Lugs 750 MCM 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98110
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Engineered for demanding applications, our copper compression lug securely terminates 750 MCM conductors with a rugged two‑hole design. The ½‑inch stud size and 1¾‑inch hole spacing allow easy alignment on standard busbars, while the durable electro‑tin plated copper body ensures outstanding conductivity and corrosion resistance. This high‑strength connector delivers stable, long‑lasting performance in industrial, commercial, and power‑distribution settings.
Key Benefits
- Premium Copper Construction: Made from electro‑tin plated seamless copper for superior electrical conductivity and long‑term durability.
- Secure Two‑Hole Mounting: Robust two‑hole design (½‑inch stud, 1¾‑inch spacing) provides strong, stable attachment to terminals or busbars.
- High Current Capacity: Ideal for high‑current loads and heavy‑duty power distribution in industrial and commercial environments.
- Reliable Performance: Compression lug design minimizes risk of connection failure in high‑stress conditions.
- Versatile Applications: Suitable for a wide range of electrical installations, from large residential projects to demanding industrial systems.
Technical Specifications
| Material | Electro Tin Plated High‑Strength Seamless Copper |
| Color | Black |
| Overall Length | 6.777 inches |
| Barrel Length | 2.875 inches |
| Conductor Material | Copper |
| Voltage Rating | 600 V – 35 kV |
| Conductor Size | 750 MCM |
| Stud Size | ½ inch |
| Die Index | I‑106 |
| Pad Size | 3 inches (L) × 1.901 inches (W) × 0.282 inches (T) |
| Pad Holes | 2 |
| Pad Hole Spacing | 1.75 inches |
| UL | Listed |
| Wire Strip Length | 2.937 inches |
| Temperature Rating | 90 °C |
