1-¼” EMT Rigid Compression Connector
Shipping calculated at checkout
Only 5 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

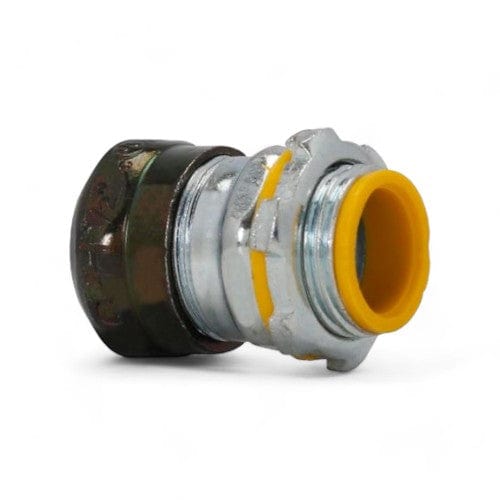

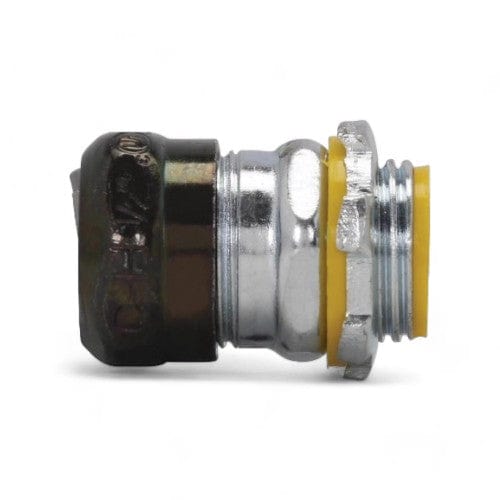

1-1/4" EMT to Rigid / IMC Compression Connector – Steel, Concrete-Tight
The Conversions Tech 1-1/4" EMT to Rigid / IMC Compression Connector is a professional-grade electrical fitting engineered to securely transition 1-1/4" Electrical Metallic Tubing (EMT) to threaded Rigid or Intermediate Metal Conduit (IMC). This connector is designed for electrical systems that require the installation flexibility of EMT while maintaining the superior mechanical strength and protection offered by rigid conduit.
Utilizing a precision compression mechanism, this connector creates a tight, leak-resistant, and concrete-tight seal between conduit types, ensuring long-term mechanical stability and electrical continuity. The heavy-duty steel body is electro-galvanized with a zinc coating exceeding 15 microns, delivering enhanced corrosion resistance for reliable performance in both indoor and outdoor environments.
Key Features & Performance Benefits
- EMT to Rigid / IMC Transition: Designed to connect 1-1/4" EMT conduit to threaded rigid or IMC conduit.
- Secure Compression Connection: Compression end allows fast installation with superior conduit retention.
- Concrete-Tight Seal: Protects conductor insulation from concrete aggregate intrusion and raceway reduction.
- Heavy-Duty Steel Construction: Provides excellent mechanical strength and long service life.
- Electro-Galvanized Zinc Finish: Zinc coating >15 μm improves corrosion resistance.
- Reliable Bonding & Grounding: Effectively bonds conduit to outlet boxes and enclosures.
- UL Listed: Certified for safety and code-compliant electrical installations.
Technical Specifications
| Product Type | EMT to Rigid / IMC Compression Connector |
|---|---|
| Trade Size | 1-1/4" |
| Conduit Compatibility | EMT to Threaded Rigid or IMC |
| Material | Steel with Zinc Electro-Galvanized Finish |
| Zinc Coating Thickness | > 15 Microns |
| Connection Type | Compression |
| Seal Rating | Concrete-Tight |
| Electrical Product Type | Standard Fitting |
| Fitting Type | Compression Connector |
| Paintable / Stainable | No |
| Certifications | UL Listed |
Applications
- Transitioning EMT conduit to rigid or IMC conduit
- Bonding conduit to outlet boxes and enclosures
- Commercial and industrial electrical systems
- Concrete-embedded conduit installations
- Indoor and outdoor electrical applications
Frequently Asked Questions (FAQs)
What does this connector connect?
This connector transitions 1-1/4" EMT conduit to threaded rigid or IMC conduit.
Is this connector concrete-tight?
Yes. It provides a concrete-tight seal to protect conductor insulation from aggregate intrusion.
Is this connector UL Listed?
Yes. The connector is UL Listed for safety and code-compliant installations.
Can this connector be used outdoors?
Yes. The electro-galvanized zinc finish provides corrosion resistance suitable for indoor and outdoor use.
Does it provide grounding continuity?
Yes. The connector effectively bonds EMT, rigid/IMC conduit, and outlet boxes.
What tools are required for installation?
Standard hand tools such as a wrench are sufficient for tightening the compression and threaded ends.
Is this connector suitable for rigid conduit only?
No. It is designed specifically as a transition fitting between EMT and rigid or IMC conduit.
How thick is the zinc coating?
The electro-galvanized zinc coating exceeds 15 microns for enhanced corrosion resistance.
Can this be used in concrete slab installations?
Yes. The concrete-tight seal makes it suitable for slab and embedded conduit installations.
Is this connector paintable?
No. This connector is not paintable or stainable.
