10Ft 50 Amp Generator Extension Cord STW 6/3 + 8/1 Generator Cord 125V 250V Generator Power Cord N14-50P & SS2-50R & CS6364 Twis
Shipping calculated at checkout
SKU: -10001:-101#10 ft
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

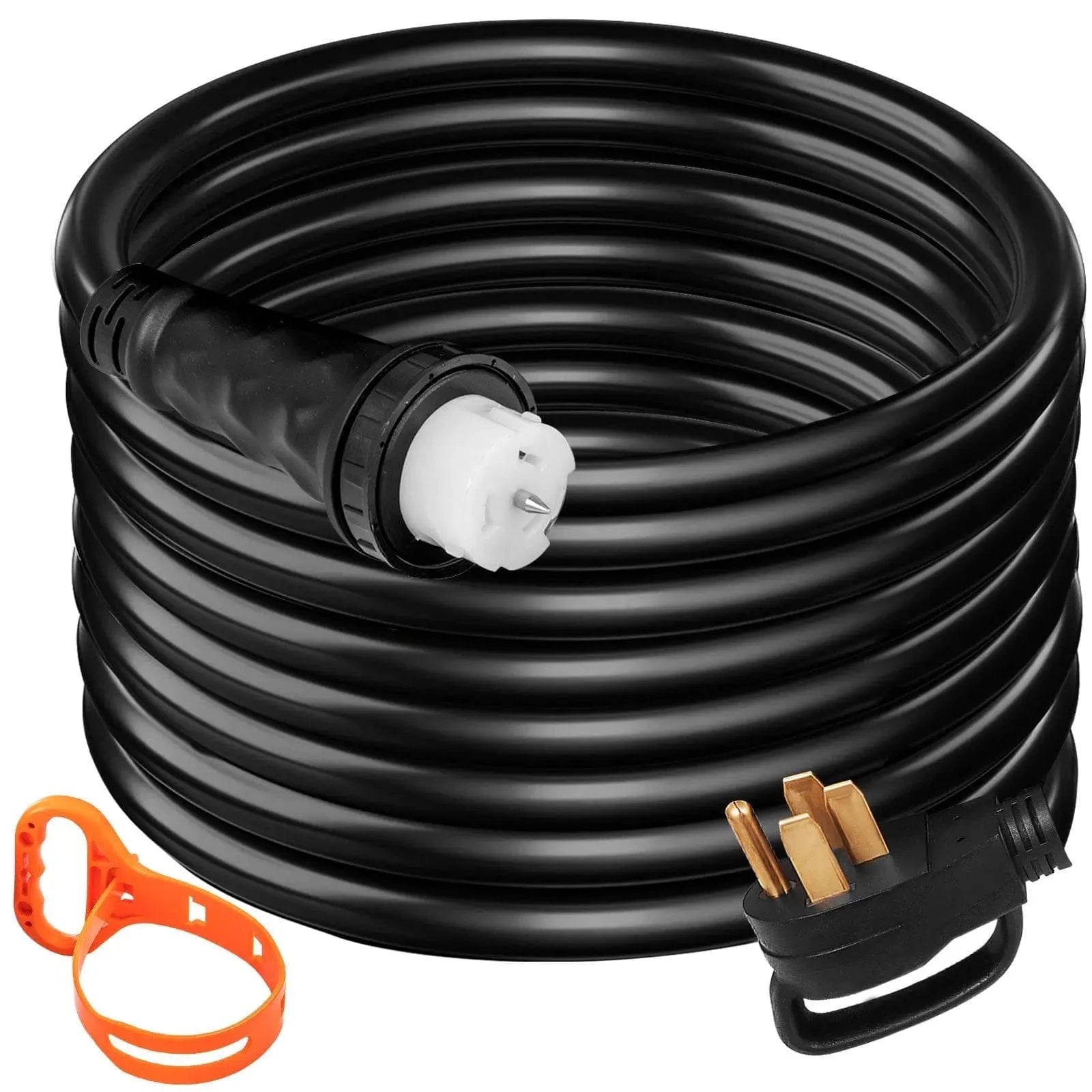

50A Generator & RV Power Cord — 10 ft • NEMA 14-50P → CS6364 Locking • STW 6/3 + 8/1 • 100% Copper
Deliver reliable 125/250 V shore or generator power with this short-run, low-loss 10 ft, 50 amp heavy-duty cord. A straight-blade NEMA 14-50P plug mates to campground pedestals or 14-50 generator receptacles, while the CS6364 locking (California Standard) connector threads securely onto CS6365 inlets for a vibration-resistant, weather-shedding connection. Built on STW 6/3 + 8/1 stranded pure copper with a rugged outdoor jacket, it’s ideal for RV shore power, generator hookups, and transfer/inlet devices where a compact length minimizes voltage drop.
Key Features & Benefits
- High-Capacity Delivery: Rated 50A, 125/250 V (up to 12,500 W) for demanding loads within circuit limits.
- Short 10 ft Run: Compact length reduces resistance and voltage drop versus long cords—better tool and charger performance.

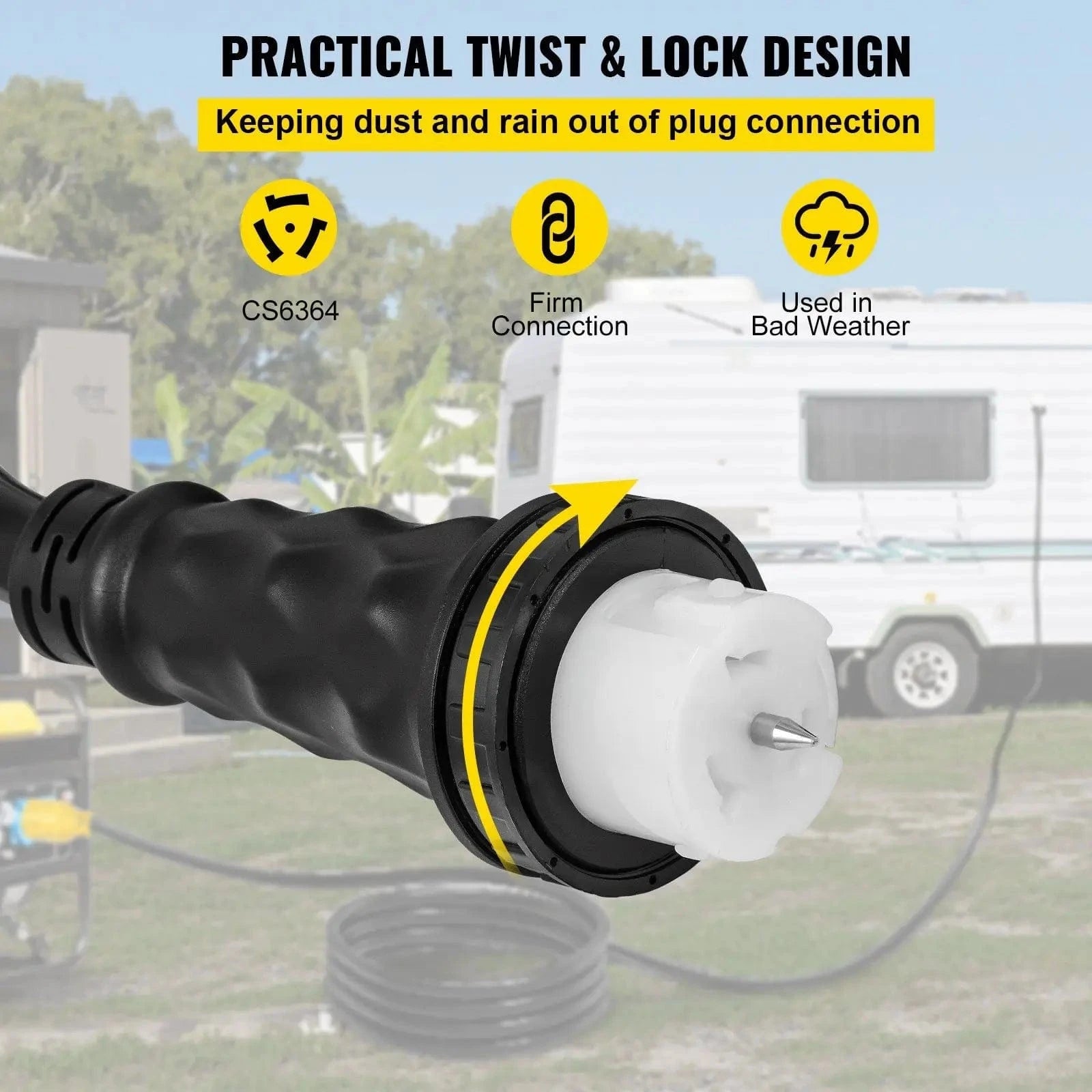

- 14-50P → CS6364 Interface: Standard pedestal/generator plug to a locking, collar-secured CS6364 connector for CS6365 inlets.
- 100% Copper Conductors: Low-resistance 6/3 + 8/1 build minimizes heat and preserves amperage under load.
- All-Weather STW Jacket: Service-grade thermoplastic sheath resists abrasion, UV, and moisture for indoor/outdoor duty.
- Extreme Temperature Range: Operates from −104 °F to 221 °F for year-round reliability.

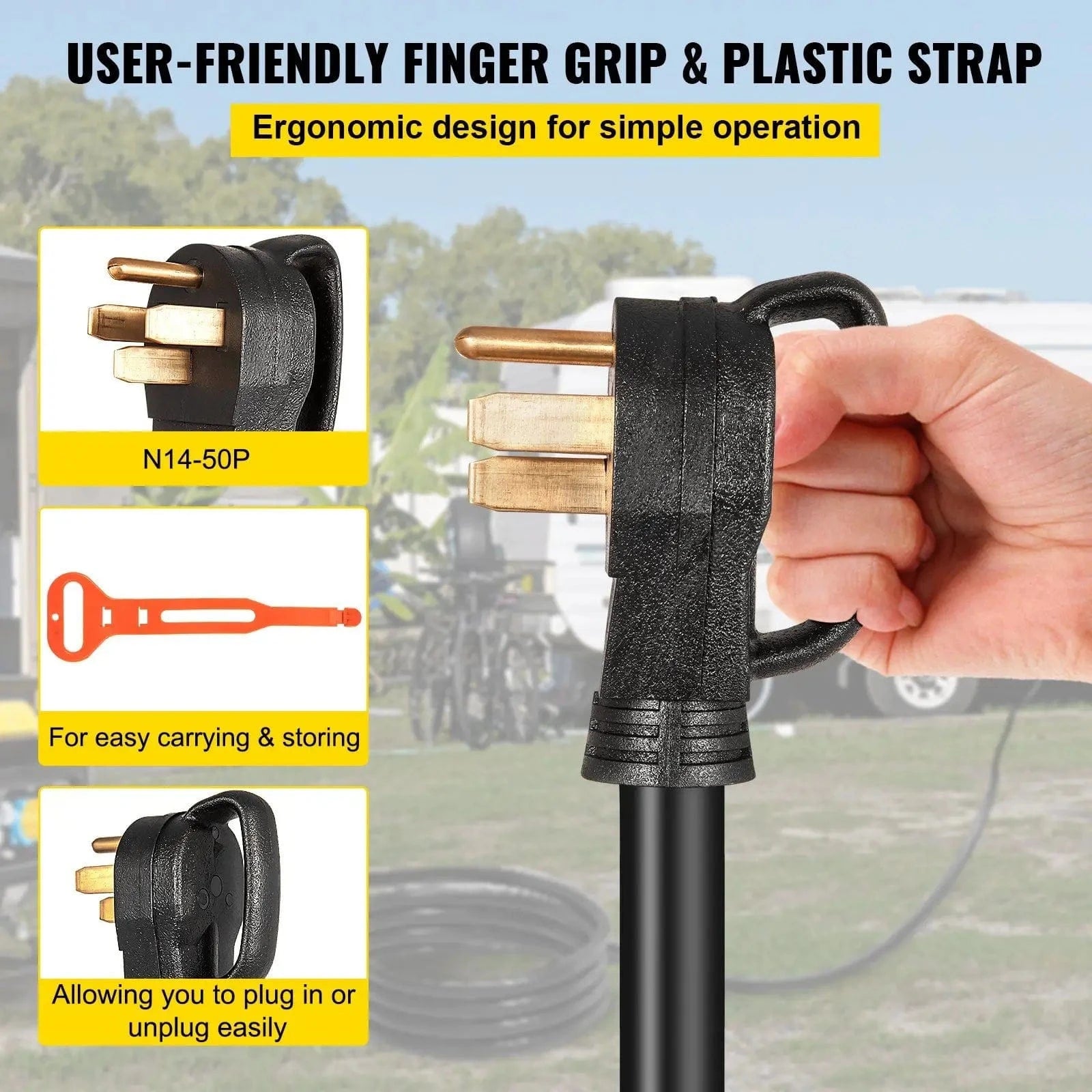

- Ergonomic Grip + Locking Collar: Easy-grip handle improves leverage; threaded collar prevents accidental disconnects.
- Storage Strap Included: Adjustable organizer keeps coils tidy in RV bays, garages, and job boxes.
Technical Specifications
| Model Number(s) | D0100HRS25T (Assembly) / D0102HS0A16 (10 ft Listing Ref.) |
| Configuration | NEMA 14-50P (male, straight-blade) → CS6364 (female, locking with collar) |
| Electrical Rating | 50 A • 125/250 V AC • up to 12,500 W (load & circuit dependent) |

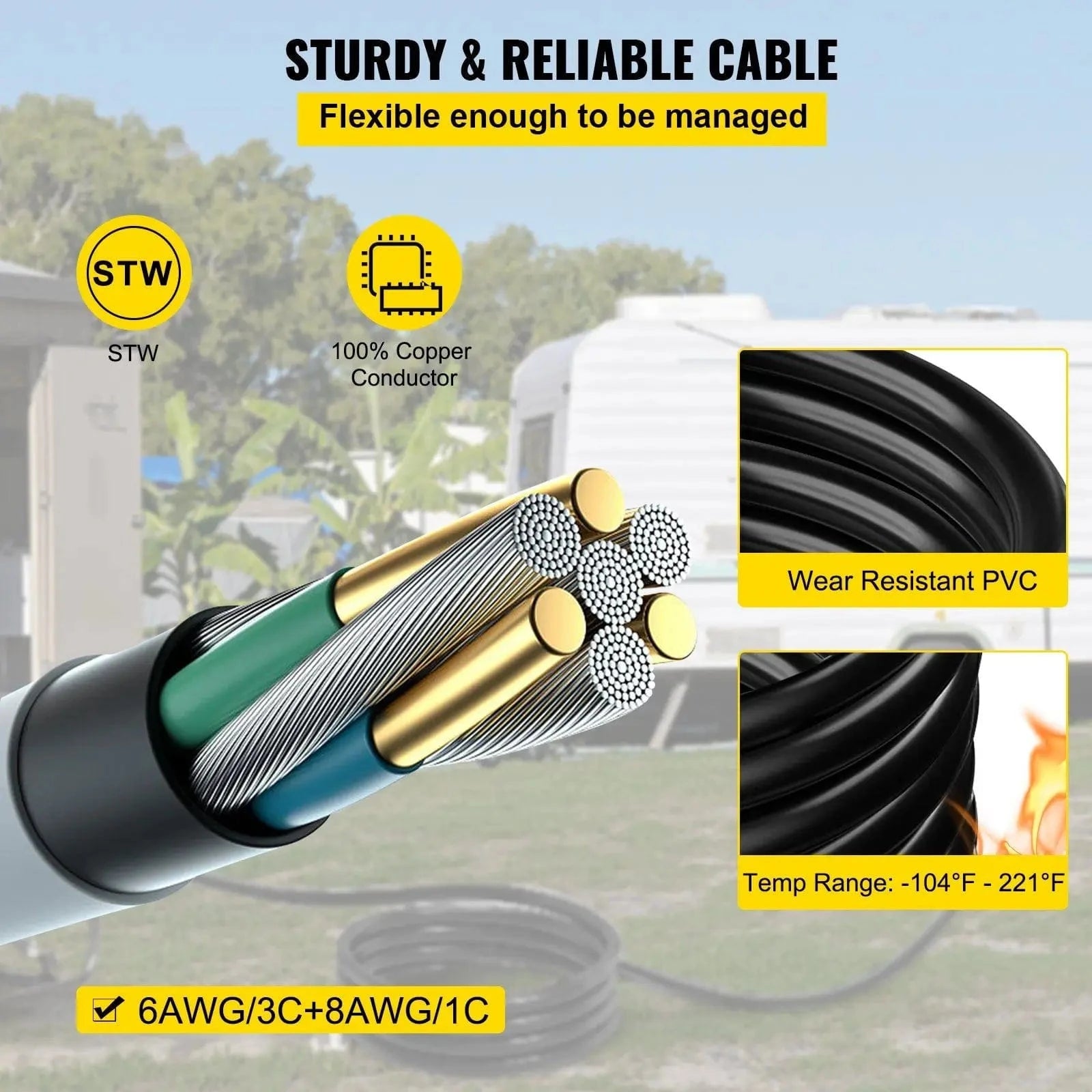

| Conductor Make-up | STW 6 AWG / 3C (L1 / L2 / N) + 8 AWG / 1C (G), stranded 100% copper |
| Length | 10 ft (≈ 3.05 m) |
| Jacket Type | STW — weather/UV/abrasion resistant |
| Ingress Protection | IP44 (splash-resistant when mated) |
| Operating Temperature | −104 °F to 221 °F (−40 °C to 105 °C) |
| Included | Cord (14-50P → CS6364) • adjustable storage strap |
Applications

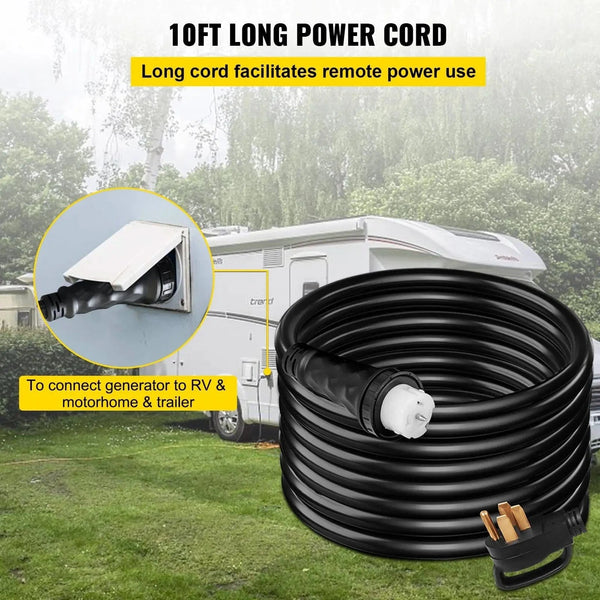

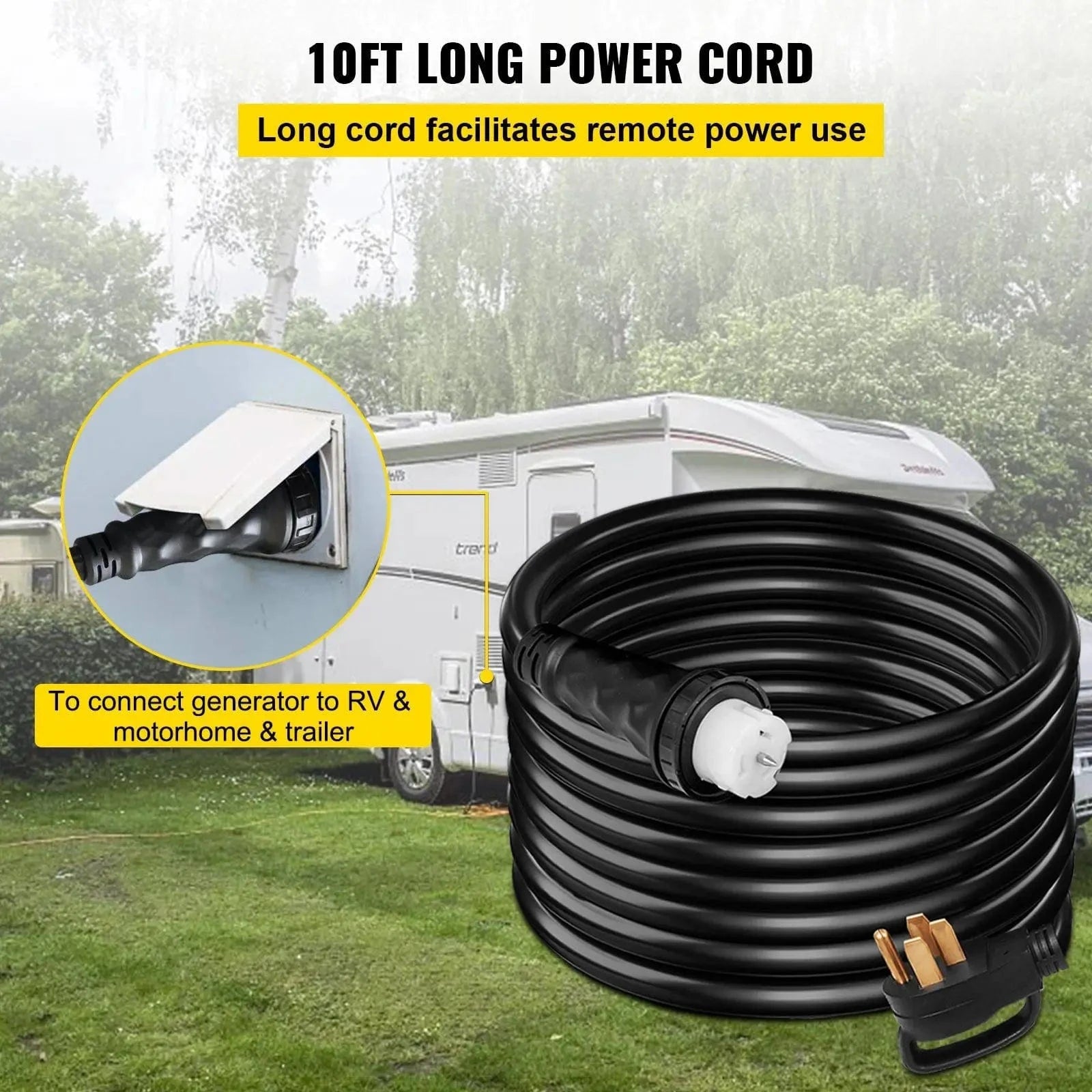

- RVs & Motorhomes: 50A shore-power extension from 14-50 pedestals to CS6365 inlets.

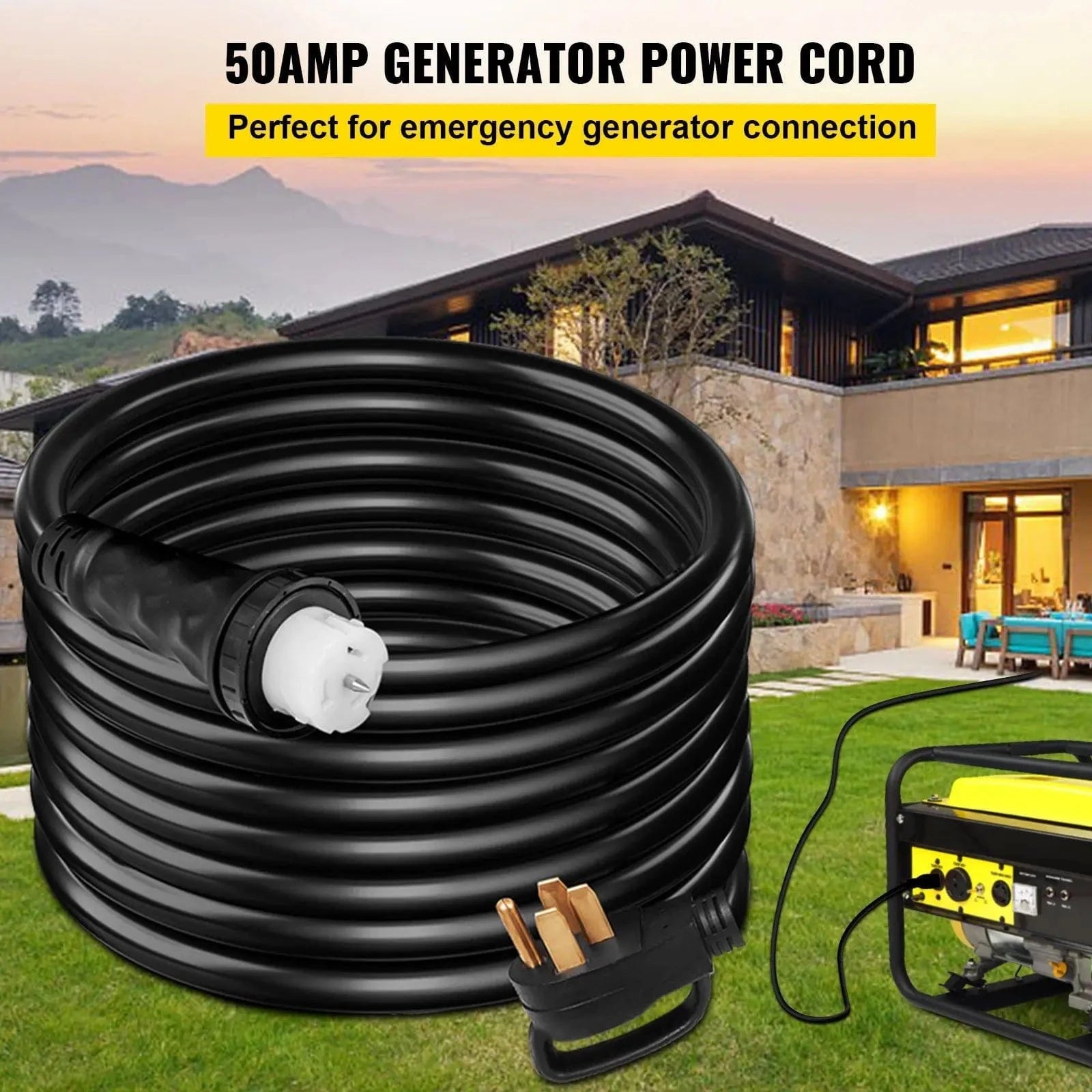

- Generator Hookups: Connect 14-50 generator receptacles to 50A CS6365 inlets (verify device ratings).
- Transfer/Inlet Devices: Short, robust link between a pedestal/generator and a 50A inlet box.
Safety & Use Notes
Verify connector standards (14-50P and CS6364/CS6365) match your equipment. Do not exceed 50 A. Keep connections dry and elevated; use approved weather covers where applicable. Fully uncoil under high load to reduce heat. Never back-feed a panel without a listed transfer device; follow local electrical codes and manufacturer instructions.
What’s in the Box
- 50A, 10 ft generator/RV extension cord — 14-50P → CS6364
- Adjustable storage/organizer strap
Frequently Asked Questions (FAQs)
1) What equipment does CS6364 mate with?
CS6364 is the locking female connector that threads onto a CS6365 male inlet (common on RVs and some 50A inlet boxes).
2) Is the 14-50 plug twist-lock?
No. NEMA 14-50P is straight-blade for pedestals/generators. The locking action is on the CS6364 end.
3) Why choose a 10 ft cord?
Short runs reduce voltage drop and heat, improving performance for 50A loads compared with long extensions.
4) Can I use this for EV charging?
Yes—if your EVSE has a CS6365 inlet or you use a proper adapter and remain ≤ 50 A. Always follow EVSE/vehicle guidance.
5) What wire sizes are inside?
6 AWG copper for L1/L2/Neutral and 8 AWG copper for Ground (6/3 + 8/1).
6) Is it outdoor-rated?
Yes. The STW jacket is outdoor-capable. The mated connection is typically IP44; shield from direct spray/standing water.
7) Will it power my whole house?
No. Use it to feed approved inlets/transfer devices within 50 A limits; never back-feed without a listed transfer switch or interlock.
8) Does it include a locking collar?
Yes. The CS6364 connector has a threaded locking collar that secures to CS6365 inlets.
9) How should I store it?
Coil loosely, avoid kinks, and use the included strap. Store in a cool, dry place out of direct sun.
10) What’s the temperature rating?
−104 °F to 221 °F, suitable for harsh cold and hot environments.
SEO-Optimized Keywords
50 amp RV power cord 10 ft, NEMA 14-50P to CS6364 locking, STW 6/3 + 8/1 copper cord, 125/250V 12.5kW RV shore power cable, generator to RV inlet cord, short 50A extension lead, heavy duty 240V RV extension cable.
