10Kw Hybrid Solar Inverter UL1741 Standard
Shipping calculated at checkout
SKU: 440-1000
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Conversions Technology 8kK Hybrid Inverter System

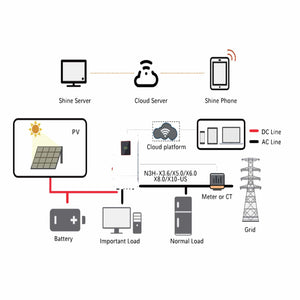

The Conversions Technology 10kK Hybrid Inverter System is an integrated solution encompassing an inverter, charger controller, and a display equipped with remote monitoring. This system is designed for easy installation in Grid-tied, Off-Grid, or Battery Backup solar setups and adeptly manages power across various sources like Solar, Battery, Grid, Loads, and Generator.
Key Features:
- Grid Tied Mode: Monetize your power to curtail your electricity bill.
- Meter Zero Mode: Neutralize your electricity charges without the need for a smart meter.
- Time of Use: Strategically utilize solar and batteries to minimize dependency on grid power.
- Programmable Smart Load Mode: Adapt to your energy consumption patterns.
- DC and AC Coupling: Versatility in energy transmission modes.
- Battery Compatibility: Compatible with a broad spectrum of battery chemistries ranging from Lead acid to Lithium.
Technical Specifications:
- AC Voltage: 120/240V (split phase)
- AC Frequency: 60/50 Hz
- Max Continuous AC Output Power: 8kW
- MPPT Voltage Range: 125-425V
- Max Input Current: 26Amp (per MPPT)
- Inverter Efficiency: 96.0%
- Listings & Certifications: UL1741-2010/2018, IEEE1547a-2003/2014
- Weight: 98 lbs
