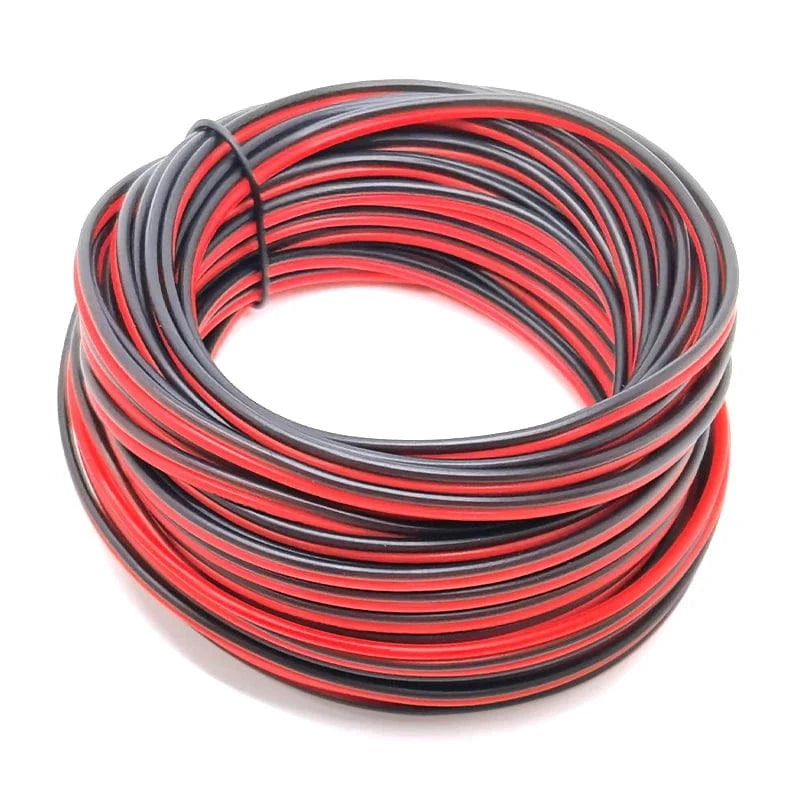

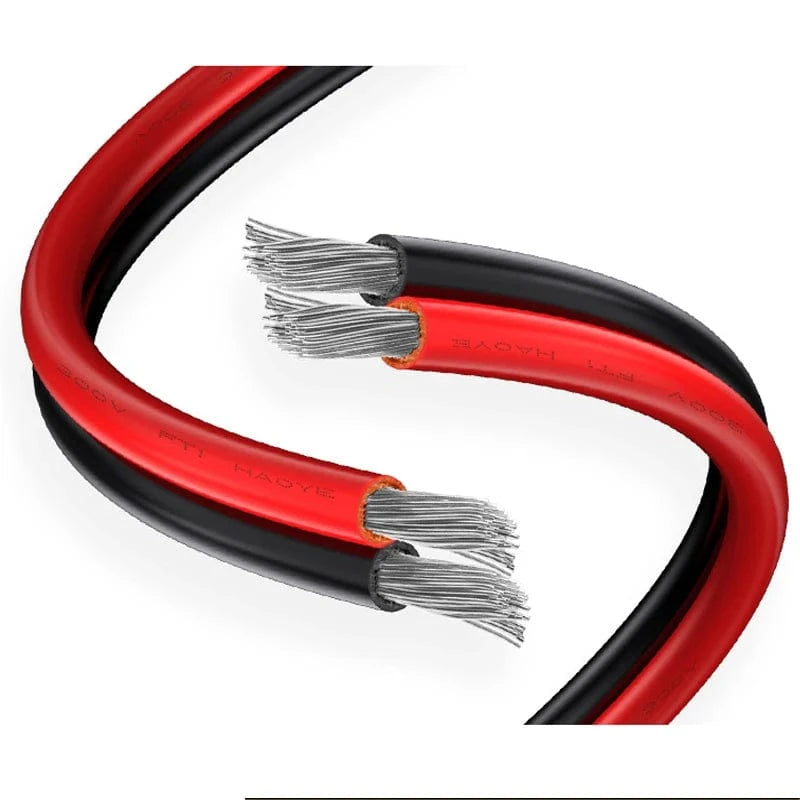

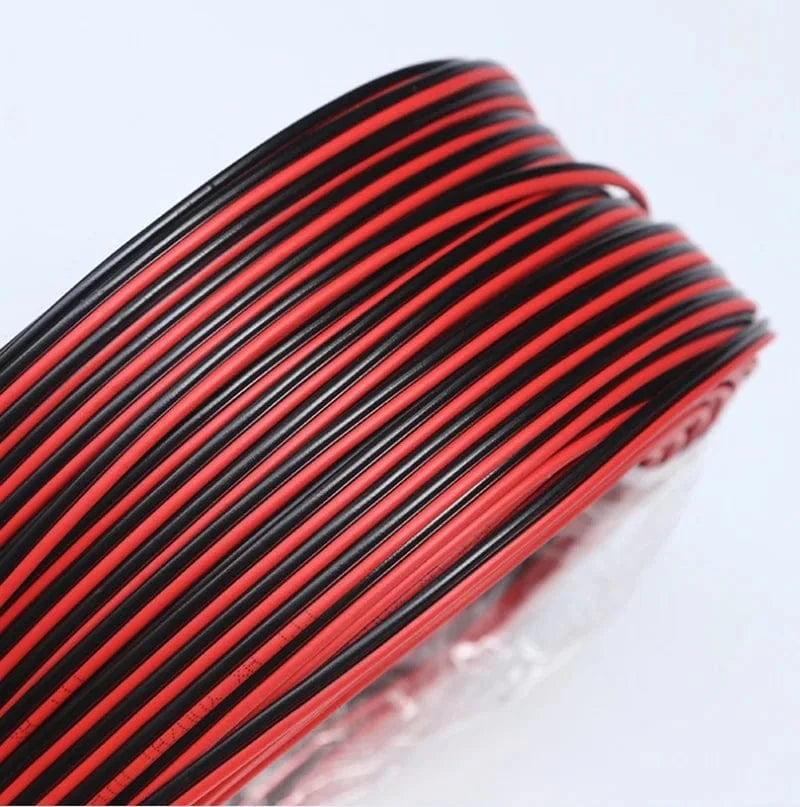

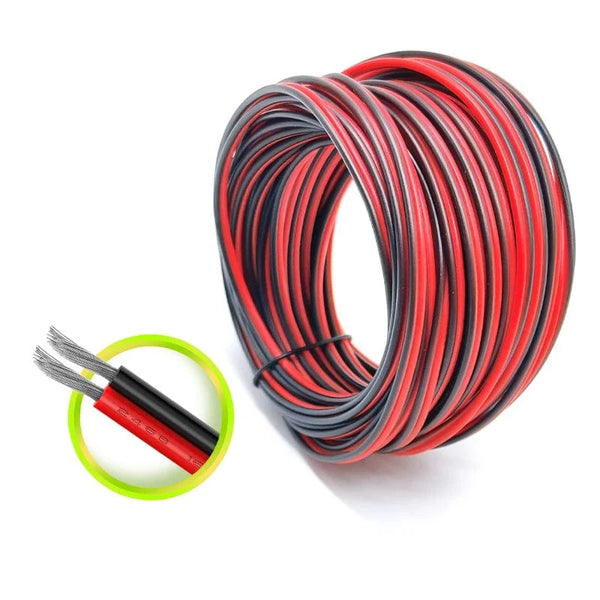

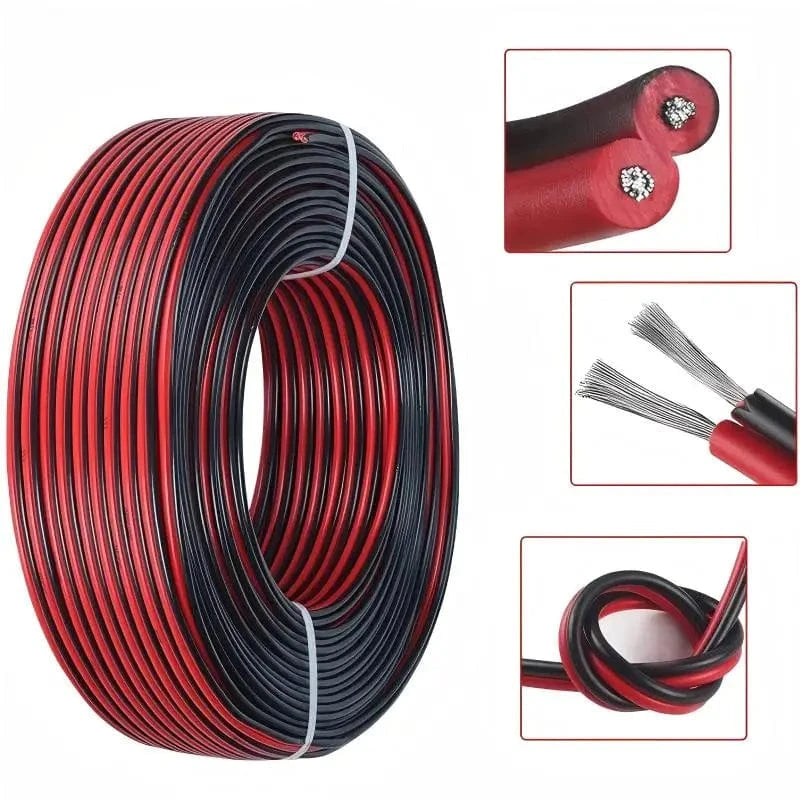

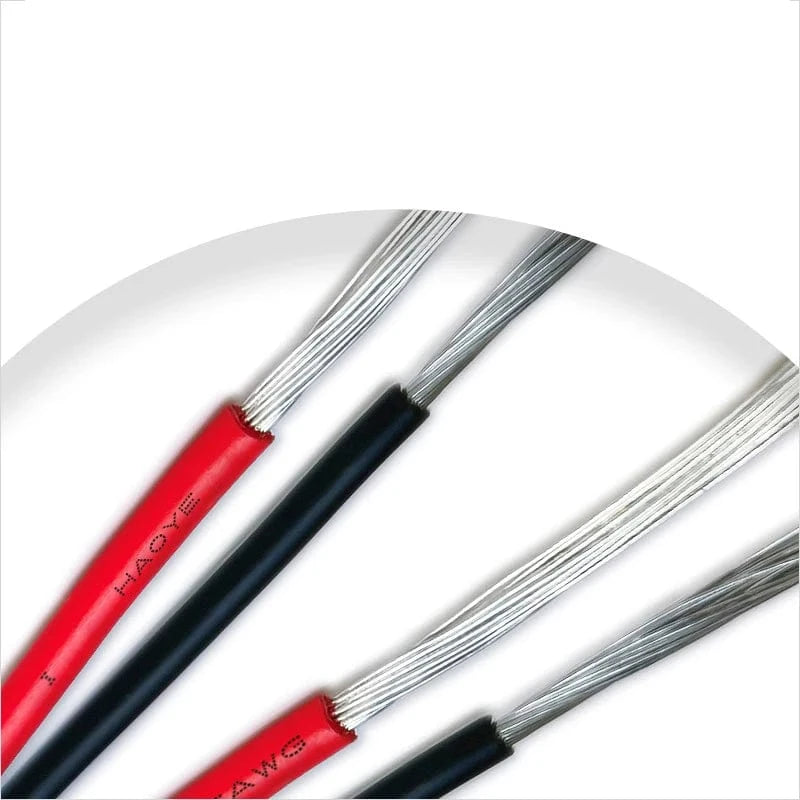

10m 2pin 16-30AWG UL2468 Electrical Wire Extension Red Black Cable for Automotive Flat Cable LED Lighting Audio Electric Wire
Shipping calculated at checkout
SKU: DUP-14:29#UL2468;183:390264893#16AWG;380:200746124
Out of stock
Open here
Stranded Copper PVC Hook-Up Wire (16–30 AWG) | Low-Voltage & Electronic Wiring | Conversions Tech
The Conversions Tech Stranded Copper Hook-Up Wire is a flexible, insulated conductor designed for low-voltage power, signal, and internal wiring applications across lighting, electronics, telecommunications, and control systems. Manufactured using stranded copper conductors with durable PVC insulation, this wire delivers dependable electrical performance, excellent flexibility, and long service life in both static and light-movement installations.
Available in a wide range of American Wire Gauge (AWG) sizes from 16 AWG through 30 AWG, this cable is ideal for LED systems, electronic assemblies, instrumentation, appliance wiring, and equipment interconnects where consistent insulation integrity and conductor reliability are critical.
Key Features & Technical Advantages
- Stranded Copper Conductor: Provides improved flexibility, reduced fatigue, and reliable current flow for internal wiring applications.
- PVC Insulation: Delivers strong electrical insulation, chemical stability, and resistance to aging.
- Wide AWG Selection: Available from 16 AWG to 30 AWG to support a broad range of current and signal requirements.
- Flexible & Easy to Route: Ideal for tight spaces, enclosures, and component-level wiring.
- Low-Voltage & Control Ready: Suitable for LED products, electronic circuits, and telecommunications equipment.
- Stable Electrical Performance: Designed for consistent conductivity and insulation reliability over time.
- Clean, Professional Finish: Smooth PVC jacket supports neat cable management and easy termination.
- Multi-Purpose Use: Supports power, signal, and control wiring within approved voltage ratings.
- Custom Length Options: Supplied in selectable lengths to match project requirements.
Technical Specifications
| Brand | Conversions Tech |
| Product Type | Insulated Stranded Hook-Up Wire |
| Conductor Material | Stranded Copper |
| Insulation Material | PVC |

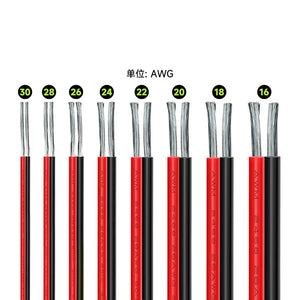

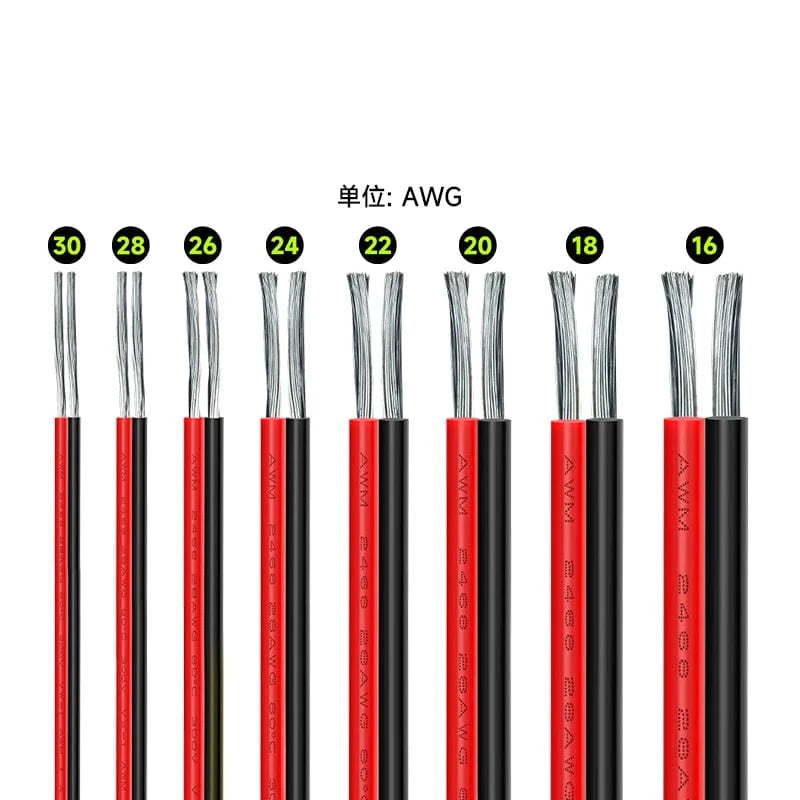

| Available Wire Gauges | 16 / 18 / 20 / 22 / 24 / 26 / 28 / 30 AWG |
| Conductor Type | Stranded |
| Rated Voltage (PVC Insulation) | Up to 300V |
| Typical Application Voltage Range | Low-Voltage & Control Circuits |
| Insulation Properties | Electrical insulation, chemical stability, aging resistance |
| Wire Length | Select per configuration |
Typical Applications
- LED lighting systems and LED strip wiring
- Electronic assemblies and PCB interconnects
- Telecommunication and signal wiring
- Instrumentation and control panels
- Household and small appliance wiring
- Automotive low-voltage circuits (non-engine compartment)
- Internal wiring of computing and electronic equipment
Package Contents
- Hook-Up Wire (Selected AWG & Length)
Expandable FAQs
What is hook-up wire?
Hook-up wire is a single-conductor insulated wire commonly used for internal wiring in electronic equipment, lighting, and control systems.
What AWG size should I choose?
Lower AWG numbers support higher current, while higher AWG numbers are suited for low-current signal or control wiring. Always size according to load and code requirements.
Is this wire flexible?
Yes. The stranded copper construction provides excellent flexibility compared to solid conductors.
What is the maximum voltage rating?
The PVC insulation is typically rated up to 300V for internal and low-voltage wiring applications.
Can this be used for LED lighting?
Yes. It is well-suited for LED strips, fixtures, and low-voltage lighting systems.
Is this wire suitable for telecommunications?
Yes. It can be used for signal and low-voltage telecommunication wiring when properly specified.
Does the wire resist aging and cracking?
The PVC insulation is designed to resist aging and maintain flexibility over long service periods.
Can this wire be cut to length?
Yes. It can be easily cut and terminated using standard wire-stripping and crimping tools.
Is this wire suitable for high-temperature environments?
It is suitable for typical electronic and lighting environments but should not be used beyond the insulation’s temperature rating.
Is this wire approved for permanent building wiring?
No. This type of hook-up wire is intended for internal equipment wiring and low-voltage applications, not permanent in-wall building wiring.
Does Conversions Tech offer bulk or OEM options?
Yes. We support bulk orders, custom lengths, and OEM packaging options upon request.
Conversions Tech supplies dependable wiring solutions engineered for clarity, consistency, and performance—trusted by professionals building modern electrical and electronic systems.
